53020 - Toro 10" Brush Cutter (SN: 099000001 - 099999999) (1999) GEARCASE ASSEMBLY Parts Diagram

10" Brush Cutter

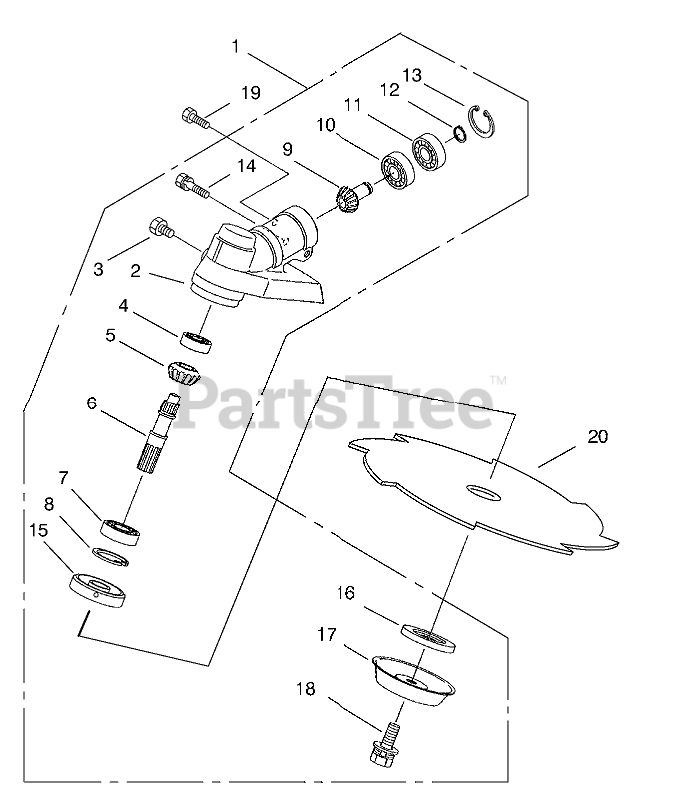

GEARCASE ASSEMBLY Parts Diagram

  • Title

1

Toro M220577

Gearcase Assembly (Incl. Ref. 2-18)

$

$

Not available

2

Toro M219077

GEARCASE

$

$

Not available

3

Toro M089884

BOLT

$2.49

$

Usually ships in 3-6 days

0

4

Toro M210554

BEARING

$

$

Not available

5

Toro M210555

GEAR

$108.99

$

Usually ships in 3-6 days

0

6

Toro M215762

SHAFT - BLADE

$

$

Not available

7

Toro M212999

BEARING

$

$

Not available

8

Toro M055185

RING - SNAP

$

$

Not available

9

Toro M215544

GEAR - PINION

$94.99

$

Usually ships in 3-6 days

0

10

Toro M210560

BEARING

$

$

Not available

11

Toro M140268

BEARING

$33.99

$

Usually ships in 3-6 days

0

12

Toro M140269

RING - SNAP

$

$

Not available

13

Toro M140270

RING - SNAP

$

$

Not available

14

Toro M092561

BOLT

$

$

Not available

15

Toro M212986

ADAPTER - BOSS

$

$

Not available

16

Toro M140275

BOSS B

$

$

Not available

17

Toro M215547

STABILIZER

$

$

Not available

18

Toro M215610

BOLT

$

$

Not available

19

Toro M089737

BOLT

$

$

Not available

20

Toro M212662

BLADE - 8 TOOTH,10" DIA.

$

$

Not available
