53021 - Toro 10" Brush Cutter (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

10" Brush Cutter

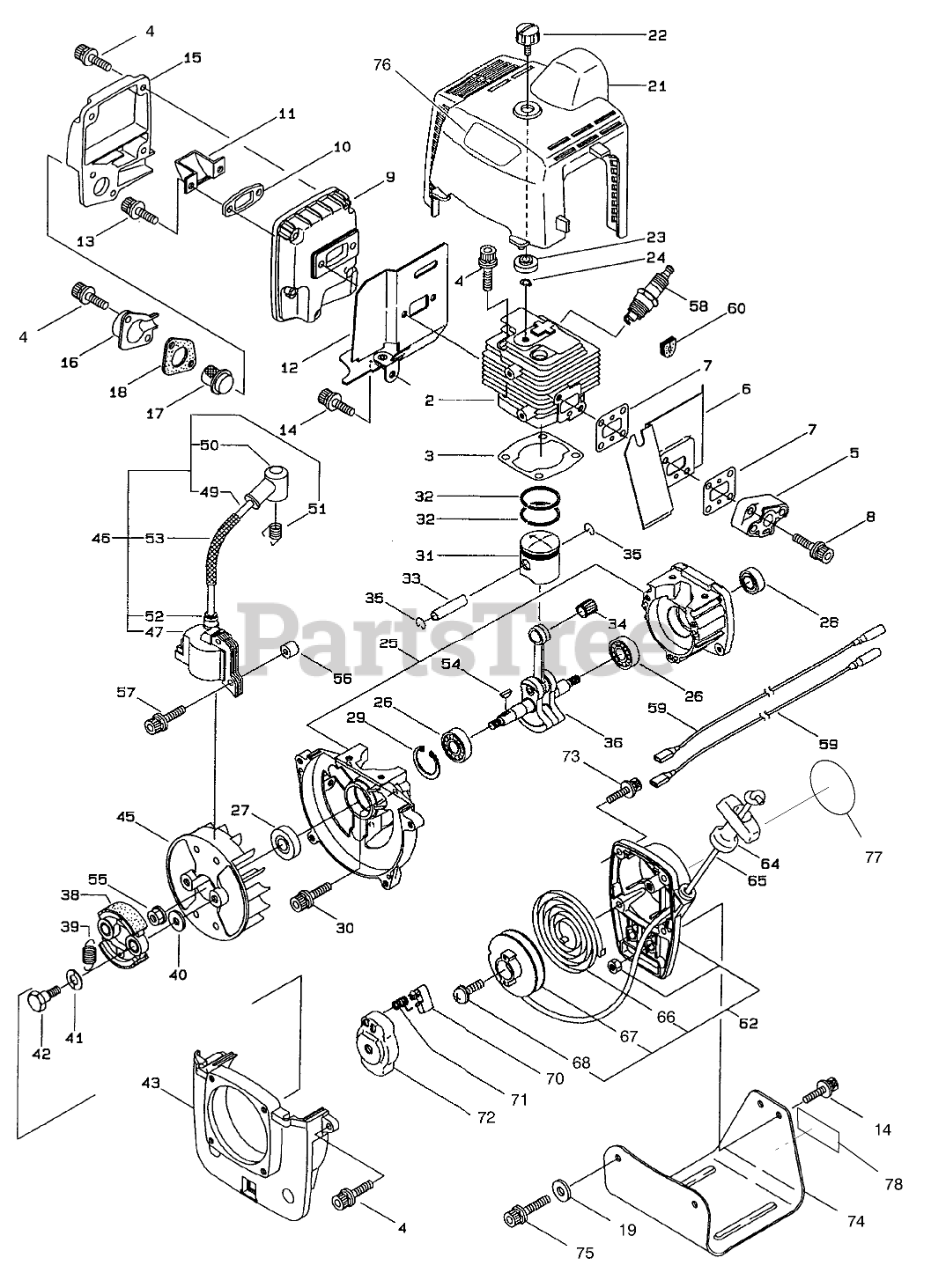

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Toro M261360

CYLINDER

$492.99

$

Usually ships in 3-6 days

0

3

Toro M262201

GASKET

$

$

Not available

4

Toro M261250

BOLT

$2.99

$

Usually ships in 3-6 days

0

5

Toro M266317

INSULATOR

$

$

Not available

6

Toro M266125

DUCT - AIR

$

$

Not available

7

Toro M261171

GASKET

$

$

Not available

8

Toro M265924

SCREW

$

$

Not available

9

Toro M262448

BODY - MUFFLER

$

$

Not available

10

Toro M261986

SHIELD

$

$

Not available

11

Toro M261368

PLATE

$

$

Not available

12

Toro M261869

GASKET

$

$

Not available

13

Toro M261246

CAPSCREW

$

$

Not available

14

Toro M261607

BOLT

$

$

Not available

15

Toro M262450

COVER - MUFFLER

$

$

Not available

16

Toro M262442

COVER - SPARK ARRESTER

$

$

Not available

17

Toro M262443

ARRESTER - SPARK

$

$

Not available

18

Toro M262446

GASKET - SPARK ARRESTER

$

$

Not available

19

Toro M263743

WASHER

$

$

Not available

21

Toro M266069

COVER - TOP

$

$

Not available

22

Toro M261018

KNOB

$

$

Not available

23

Toro M261020

SPACER

$

$

Not available

24

Toro M261734

CLIP

$2.49

$

In Stock, only 1 left!

0

25

Toro M261379

CRANKCASE

$

$

Not available

26

Toro M261384

BEARING

$

$

Not available

27

Toro M261385

SEAL - OIL

$

$

Not available

28

Toro M261386

SEAL - OIL

$

$

Not available

29

Toro M016732

RING - SNAP, C-SHAPED 32

$

$

Not available

30

Toro M261612

BOLT

$

$

Not available

31

Toro M261388

PISTON
(Superseded to M266980)

$

$

Not available

32

Toro M261390

RING - PISTON

$

$

Not available

33

Toro M261555

PIN - PISTON

$

$

Not available

34

Toro M261392

BEARING - NEEDLE

$

$

Not available

35

Toro M261393

CIRCLIP

$

$

Not available

36

Toro M261395

CRANKSHAFT

$

$

Not available

38

Toro M264504

SHOE - CLUTCH

$

$

Not available

39

Toro M263614

SPRING - CLUTCH

$

$

Not available

40

Toro M261189

WASHER

$

$

Not available

41

Toro M261777

WASHER - WAVE

$

$

Not available

42

Toro M264505

BOLT - CLUTCH

$

$

Not available

43

Toro M266319

COVER - FAN

$

$

Not available

45

Toro M261356

ROTOR

$

$

Not available

46

Toro M261301

Ignition Coil Assembly (Incl. Ref. #47-53)

$

$

Not available

47

Toro M261302

COIL

$

$

Not available

49

Toro M261071

CABLE - IGNITION

$

$

Not available

50

Toro M261074

CAP - PLUG

$

$

Not available

51

Toro M261075

CONNECTOR

$

$

Not available

52

Toro M261072

CAP

$

$

Not available

53

Toro M261073

TUBE

$

$

Not available

54

Toro M261076

KEY - WOODRUFF

$

$

Not available

55

Toro M261417

WASHER & NUT

$

$

Not available

56

Toro M261078

SPACER

$

$

Not available

57

Toro M261256

BOLT

$

$

Not available

58

Toro M261200

SPARK PLUG

$

$

Not available

59

Toro M261772

LEAD

$

$

Not available

60

Toro M261202

GROMMET

$

$

Not available

62

Toro M262039

Recoil Assembly (Incl. Ref. #63-68)

$

$

Not available

64

Toro M261725

GRIP - STARTER

$

$

Not available

65

Toro M261724

ROPE - STARTER

$

$

Not available

66

Toro M261721

SPRING - SPIRAL

$

$

Not available

67

Toro M261720

REEL

$

$

Not available

68

Toro M262922

SCREW

$

$

Not available

70

Toro M263477

PAWL

$18.99

$

Usually ships in 3-6 days

0

71

Toro M261728

SPRING - RETURN

$

$

Not available

72

Toro M263476

STARTER

$

$

Not available

73

Toro M261257

BOLT

$

$

Not available

74

Toro M266100

STAND - ENGINE,AE320

$

$

Not available

75

Toro M261999

BOLT

$

$

Not available

76

Toro M266322

DECAL - TORO

$

$

Not available

77

Toro M266211

DECAL - TORO

$

$

Not available

78

Toro 25-9150

REPLACEMNT SERIAL PLT

$20.99

$

Usually ships in 3-6 days

0

Toro M261910

LIQUID GASKET

Note: Not illustrated

$

$

Not available

Toro M266224

ASM - ENGINE,AE320/81

Note: Not illustrated

$2279.99

$

Usually ships in 3-6 days

0
