53030 - Toro 8" Stick Edger, Curved Shaft (SN: 089000001 - 089999999) (1998) HANDLE AND CLUTCH ASSEMBLY Parts Diagram

8" Stick Edger, Curved Shaft

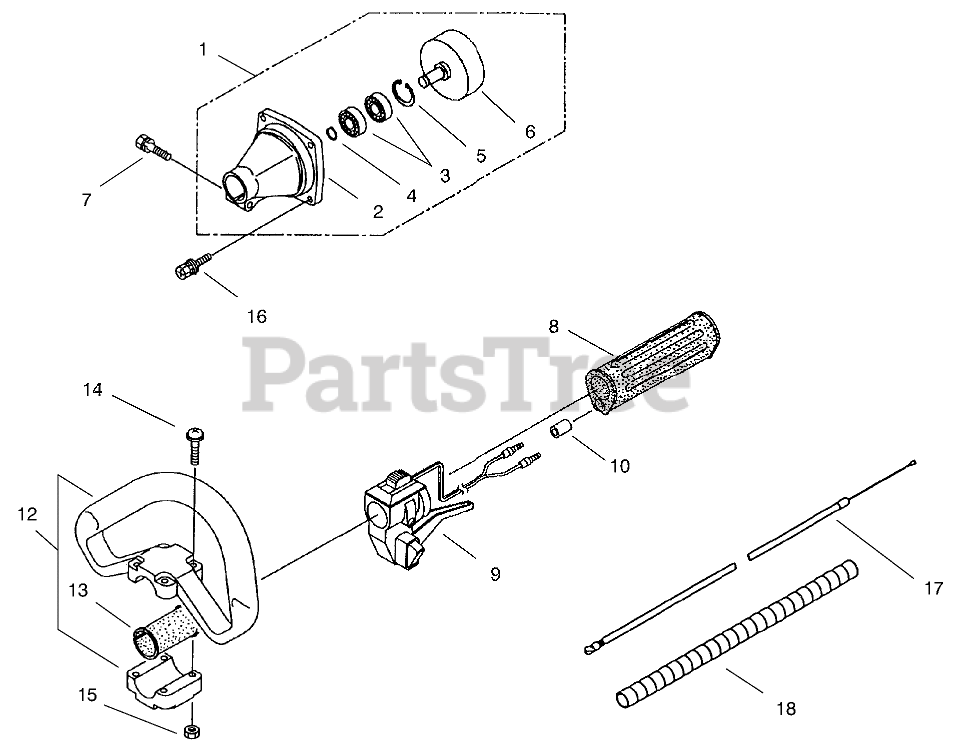

HANDLE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro M220155

Clutch Case Assembly (Incl. Ref. #2-6)

$345.99

$

Usually ships in 3-6 days

0

2

Toro M220156

CASE - CLUTCH

$

$

Not available

3

Toro M214161

BEARING

$

$

Not available

4

Toro M014210

RING - SNAP, C-SHAPED 10

$

$

Not available

5

Toro M054676

RING - SNAP

$

$

Not available

6

Toro M218588

DRUM - CLUTCH

$125.99

$

Usually ships in 3-6 days

0

7

Toro M092561

BOLT

$

$

Not available

8

Toro M215532

GRIP - SHAFT

$

$

Not available

9

Toro M221465

TRIGGER - THROTTLE

$

$

Not available

10

Toro M214083

GUIDE - OUTER

$

$

Not available

12

Toro M219032

HANDLE - LOOP

$82.99

$

Usually ships in 3-6 days

0

13

Toro M213171

PACKING

$

$

Not available

14

Toro M092088

SCREW

$

$

Not available

15

Toro M081027

NUT M5

$2.49

$

Usually ships in 3-6 days

0

16

Toro M817002

BOLT

$2.49

$

Usually ships in 3-6 days

0

17

Toro M213444

CABLE - THROTTLE

$20.99

$

Usually ships in 3-6 days

0

18

Toro M213548

TUBE - PLASTIC

$

$

Not available

Toro 95-6122

SAFETY GLASSES (CLEAR)

Note: Not illustrated

$

$

Not available
