53035 - Toro Straight-Shaft Chainsaw Pruner (SN: 079000001 - 079999999) (1997) HANDLE, CLUTCH AND SHAFT ASSEMBLY Parts Diagram

Straight-Shaft Chainsaw Pruner

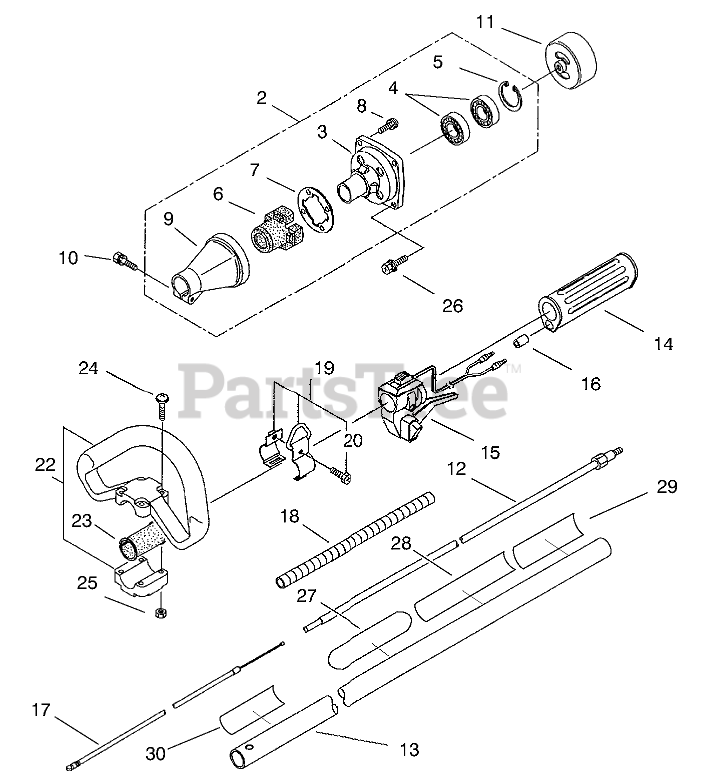

HANDLE, CLUTCH AND SHAFT ASSEMBLY Parts Diagram

  • Title

2

Toro M215512

Clutch Case Assembly (Incl. Ref. #3-9)

$

$

Not available

3

Toro M214592

CASE - BEARING

$

$

Not available

4

Toro M214161

BEARING

$

$

Not available

5

Toro M054676

RING - SNAP

$

$

Not available

6

Toro M214162

BUFFER

$

$

Not available

7

Toro M214163

WASHER

$

$

Not available

8

Toro M092033

SCREW

$

$

Not available

9

Toro M214593

ADAPTER-DRIVESHAFT TUBE

$

$

Not available

10

Toro M092561

BOLT

$

$

Not available

11

Toro M054677

DRUM - CLUTCH

$52.99

$

In Stock, only 1 left!

0

12

Toro M219268

ASM - DRIVESHAFT

$137.99

$

Usually ships in 3-6 days

0

13

Toro M221755

Driveshaft Tube Assembly (Incl. Ref. # 27, 28, 30)

$

$

Not available

14

Toro M221434

GRIP - SHAFT

$

$

Not available

15

Toro M221465

TRIGGER - THROTTLE

$

$

Not available

16

Toro M214083

GUIDE - OUTER

$

$

Not available

17

Toro M213444

CABLE - THROTTLE

$

$

Not available

18

Toro M213548

TUBE - PLASTIC

$

$

Not available

19

Toro M054691

Hanging Bracket Assembly (Incl. Ref. #20)

$

$

Not available

20

Toro M089738

BOLT

$

$

Not available

22

Toro M219032

HANDLE - LOOP

$89.99

$

Usually ships in 3-6 days

0

23

Toro M213171

PACKING

$

$

Not available

24

Toro M092088

SCREW

$

$

Not available

25

Toro M081027

NUT M5

$2.49

$

Usually ships in 3-6 days

0

26

Toro M817002

BOLT

$

$

Not available

27

Toro M221501

DECAL - CAUTION

$

$

Not available

28

Toro M219937

DECAL - CAUTION

$

$

Not available

29

Toro M221500

DECAL - TORO

$

$

Not available

30

Toro M221529

DECAL - CAUTION

$

$

Not available

Toro 95-6122

SAFETY GLASSES (CLEAR)

Note: Not illustrated

$

$

Not available
