53035 - Toro Straight-Shaft Chainsaw Pruner (SN: 089000001 - 089999999) (1998) Gearcase Assembly Parts Diagram

Straight-Shaft Chainsaw Pruner

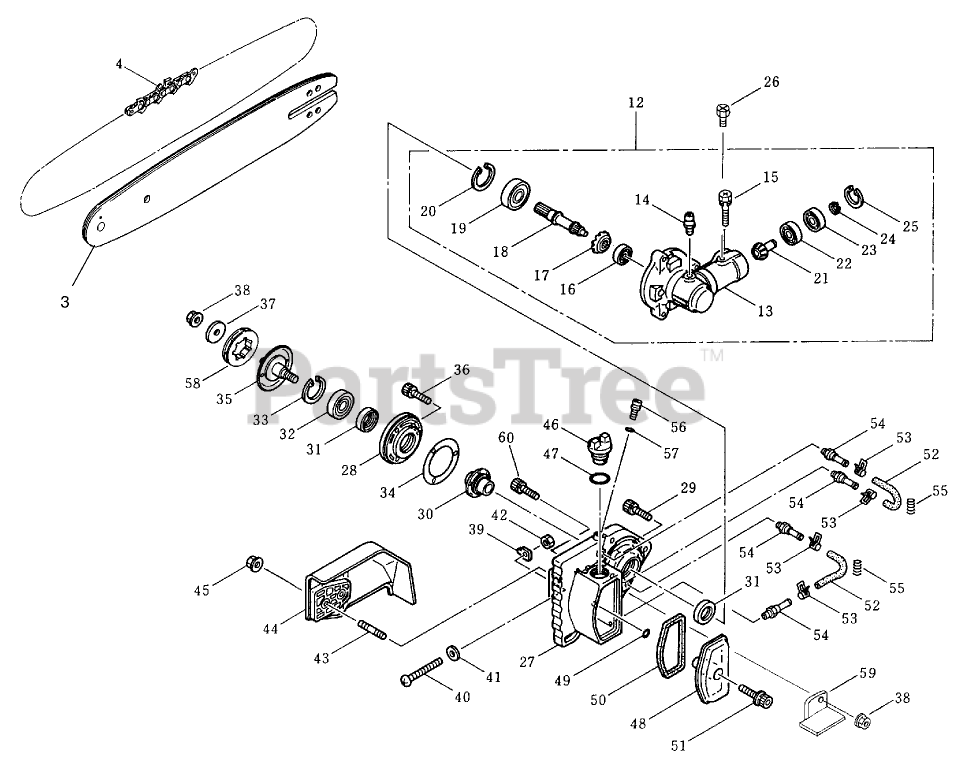

Gearcase Assembly Parts Diagram

  • Title

3

Toro M219965

BAR - CHAIN

$

$

Not available

4

Toro M219966

CHAIN

$

$

Not available

12

Toro M221512

ASM - GEARCASE

$856.99

$

Usually ships in 3-6 days

0

13

Toro M219935

GEARCASE

$301.99

$

Usually ships in 3-6 days

0

14

Toro M069553

DISCONTINUED

$

$

Not available

15

Toro M092561

BOLT

$

$

Not available

16

Toro M210554

BEARING

$

$

Not available

17

Toro M217650

GEAR

$

$

Not available

18

Toro M210556

AXIS - BLADE

$130.99

$

Usually ships in 3-6 days

0

19

Toro M217659

DISCONTINUED

$

$

Not available

20

Toro M016732

RING - SNAP, C-SHAPED 32

$

$

Not available

21

Toro M217660

GEAR - PINION

$

$

Not available

22

Toro M210560

BEARING

$

$

Not available

23

Toro M140268

BEARING

$

$

Not available

24

Toro M140269

RING - SNAP

$

$

Not available

25

Toro M140270

DISCONTINUED

$

$

Not available

26

Toro M089737

DISCONTINUED

$

$

Not available

27

Toro M219950

BASE - MOUNT

$528.99

$

Usually ships in 3-6 days

0

28

Toro M219955

DISCONTINUED

$

$

Not available

29

Toro M219113

DISCONTINUED

$

$

Not available

30

Toro M219941

ROTOR

$

$

Not available

31

Toro M215641

DISCONTINUED

$

$

Not available

32

Toro M214101

DISCONTINUED

$

$

Not available

33

Toro M016732

RING - SNAP, C-SHAPED 32

$

$

Not available

34

Toro M219938

DISCONTINUED

$

$

Not available

35

Toro M219944

BOSS - SPLINE

$337.99

$

Usually ships in 3-6 days

0

36

Toro M219961

DISCONTINUED

$

$

Not available

37

Toro M219962

DISCONTINUED

$

$

Not available

38

Toro M219959

DISCONTINUED

$

$

Not available

39

Toro M219939

DISCONTINUED

$

$

Not available

40

Toro M219957

DISCONTINUED

$

$

Not available

41

Toro M012487

DISCONTINUED

$

$

Not available

42

Toro M081027

NUT M5

$

$

Not available

43

Toro M219956

DISCONTINUED

$

$

Not available

44

Toro M219948

COVER

$

$

Not available

45

Toro M219954

DISCONTINUED

$

$

Not available

46

Toro M219949

DISCONTINUED

$

$

Not available

47

Toro M011338

DISCONTINUED

$

$

Not available

48

Toro M219958

DISCONTINUED

$

$

Not available

49

Toro M014759

DISCONTINUED

$

$

Not available

50

Toro M219952

DISCONTINUED

$

$

Not available

51

Toro M261250

BOLT

$2.99

$

Usually ships in 3-6 days

0

52

Toro M219951

DISCONTINUED

$

$

Not available

53

Toro M219953

DISCONTINUED

$

$

Not available

54

Toro M219936

DISCONTINUED

$

$

Not available

55

Toro M219960

DISCONTINUED

$

$

Not available

56

Toro M219986

DISCONTINUED

$

$

Not available

57

Toro M025300

DISCONTINUED

$

$

Not available

58

Toro M219967

DISCONTINUED

$

$

Not available

59

Toro M220633

DISCONTINUED

$

$

Not available

60

Toro M220632

DISCONTINUED

$

$

Not available
