53040 - Toro 24" Dual Action Hedge Trimmer (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

24" Dual Action Hedge Trimmer

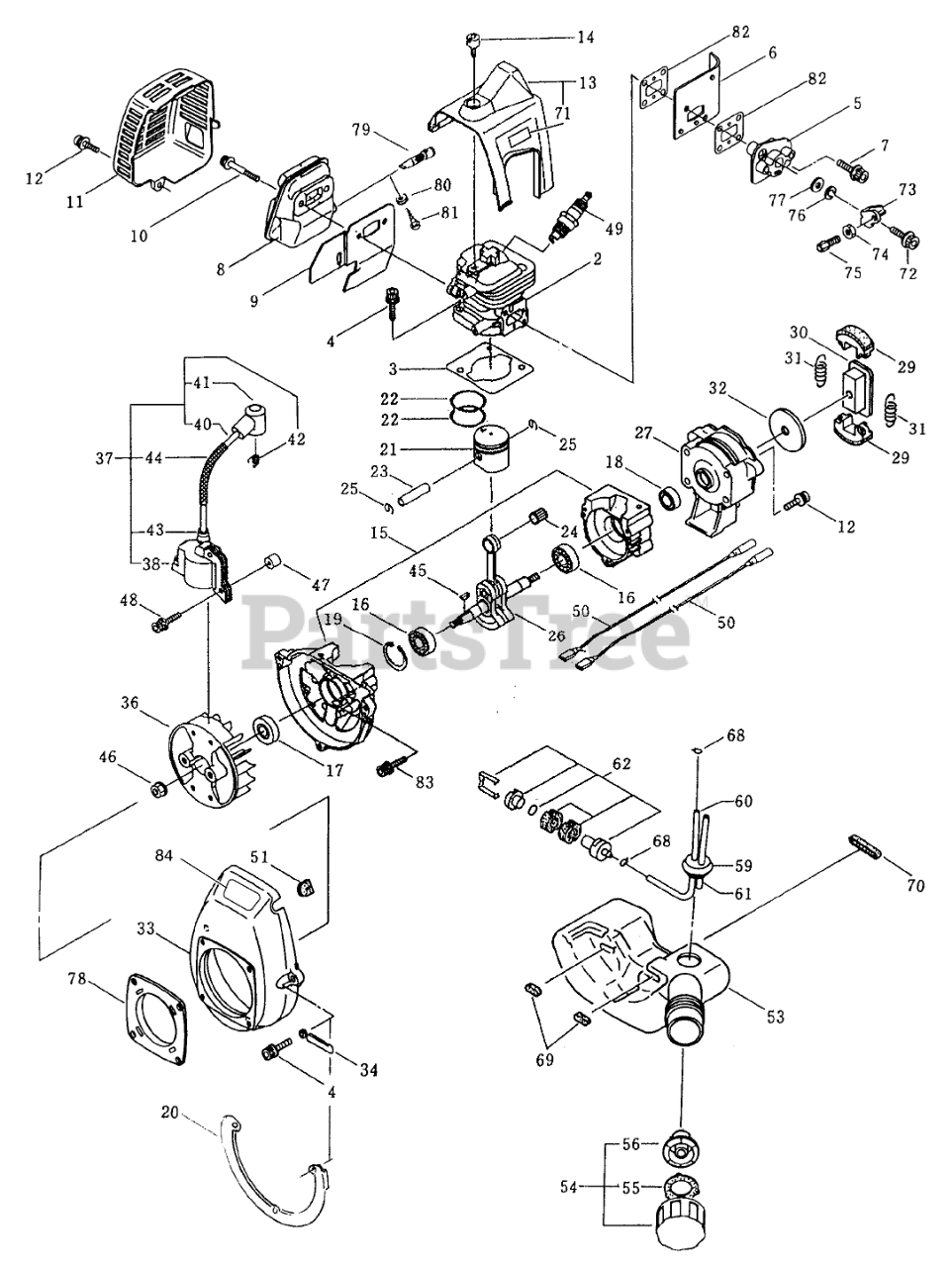

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Toro M263768

Cylinder
(Superseded to M264981)

$

$

Not available

3

Toro M263770

GASKET

$

$

Not available

4

Toro M261250

BOLT

$2.99

$

Usually ships in 3-6 days

0

5

Toro M265802

INSULATOR

$

$

Not available

6

Toro M265794

DUCT - AIR

$

$

Not available

7

Toro M265924

SCREW

$

$

Not available

8

Toro M264729

MUFFLER

$

$

Not available

9

Toro M263777

GASKET

$

$

Not available

10

Toro M264223

CAPSCREW

$

$

Not available

11

Toro M263802

COVER - MUFFLER

$

$

Not available

12

Toro M261607

BOLT

$

$

Not available

13

Toro M266494

COVER - CYLINDER

$

$

Not available

14

Toro M265742

COVER - KNOB,TOP

$

$

Not available

15

Toro M264542

CRANKCASE

$

$

Not available

16

Toro M261181

BEARING

$

$

Not available

17

Toro M262712

SEAL - OIL

$

$

Not available

18

Toro M262713

SEAL - OIL

$

$

Not available

19

Toro M054676

RING - SNAP

$

$

Not available

20

Toro M265972

PLATE

$

$

Not available

21

Toro M264719

PISTON

$

$

Not available

22

Toro M264891

RING - PISTON

$

$

Not available

23

Toro M261036

PIN - PISTON

$

$

Not available

24

Toro M263957

BEARING - NEEDLE

$

$

Not available

25

Toro M261576

CIRCLIP

$

$

Not available

26

Toro M264643

CRANKSHAFT

$

$

Not available

27

Toro M264585

CASE - CLUTCH

$

$

Not available

29

Toro M264960

SHOE - CLUTCH

$

$

Not available

30

Toro M264963

BOSS - CLUTCH

$

$

Not available

31

Toro M264964

SPRING

$

$

Not available

32

Toro M264646

WASHER

$

$

Not available

33

Toro M263799

COVER - FAN

$

$

Not available

34

Toro M264588

CLAMP

$

$

Not available

36

Toro M263570

FAN - ROTOR

$

$

Not available

37

Toro M263978

Ignition Coil Assembly (Incl. Ref. #38-44)

$455.99

$

Usually ships in 3-6 days

0

38

Toro M263977

COIL

$428.99

$

Usually ships in 3-6 days

0

40

Toro M261071

CABLE - IGNITION

$

$

Not available

41

Toro M261074

CAP - PLUG

$

$

Not available

42

Toro M261075

CONNECTOR

$

$

Not available

43

Toro M261072

CAP

$

$

Not available

44

Toro M261073

TUBE

$

$

Not available

45

Toro M261076

KEY - WOODRUFF

$

$

Not available

46

Toro M261077

NUT

$

$

Not available

47

Toro M261078

SPACER

$

$

Not available

48

Toro M261256

BOLT

$

$

Not available

49

Toro M261200

SPARK PLUG

$

$

Not available

50

Toro M261772

LEAD

$

$

Not available

51

Toro M261202

GROMMET

$

$

Not available

53

Toro M264545

TANK - FUEL

$78.99

$

Usually ships in 3-6 days

0

54

Toro M264579

Tank Cap Assembly (Incl. Ref. #55-56)
(Superseded to M265638)

$

$

Not available

55

Toro M265593

GASKET

$

$

Not available

56

Toro M264580

ASM - BREATHER

$

$

Not available

59

Toro M265869

GROMMET

$

$

Not available

60

Toro M262649

PIPE - FUEL

$

$

Not available

61

Toro M263038

PIPE - RETURN

$3.49

$

Usually ships in 3-6 days

0

62

Toro M261797

ASM - FUEL FILTER

$

$

Not available

68

Toro M261117

CLIP

$

$

Not available

69

Toro M264318

PAD

$

$

Not available

70

Toro M263824

PAD

$

$

Not available

71

Toro M266291

DECAL - WARNING

$

$

Not available

72

Toro M265925

CAPSCREW

$

$

Not available

73

Toro M265199

STAY

$

$

Not available

74

Toro M261878

NUT

$

$

Not available

75

Toro M264736

ADAPTER

$

$

Not available

76

Toro M089901

WASHER

$

$

Not available

77

Toro M012487

WASHER

$

$

Not available

78

Toro M265081

PLATE

$

$

Not available

79

Toro M262395

ARRESTER - SPARK

$

$

Not available

80

Toro M264857

WASHER

$

$

Not available

81

Toro M089530

SCREW

$

$

Not available

82

Toro M261171

GASKET

$

$

Not available

83

Toro M261246

CAPSCREW

$

$

Not available

84

Toro M266290

Decal-Toro

$

$

Currently unavailable

Toro M261910

LIQUID GASKET

Note: Not illustrated

$

$

Not available

Toro M266293

ASM - ENGINE,LE230/14

Note: Not illustrated

$2762.99

$

Usually ships in 3-6 days

0
