53040 - Toro 24" Dual Action Hedge Trimmer (SN: 089000001 - 089999999) (1998) Blade And Case Assembly Parts Diagram

24" Dual Action Hedge Trimmer

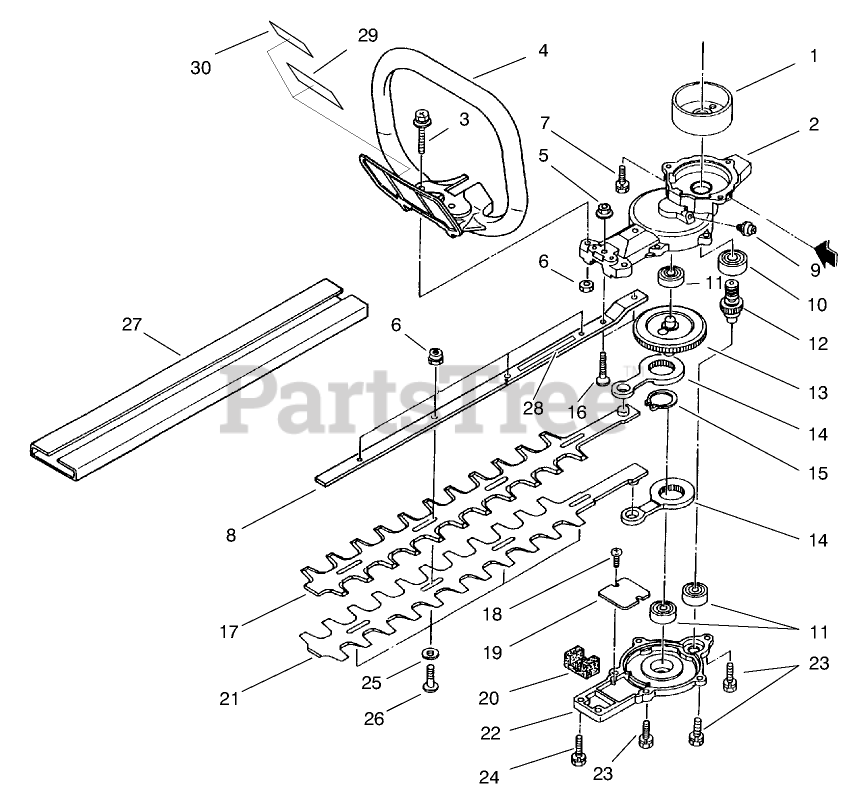

Blade And Case Assembly Parts Diagram

  • Title

1

Toro M270021

DISCONTINUED

$

$

Not available

2

Toro M584661

CASE - UPPER

$503.99

$

Usually ships in 3-6 days

0

3

Toro M270029

DISCONTINUED

$

$

Not available

4

Toro M270188

DISCONTINUED

$

$

Not available

5

Toro M997244

DISCONTINUED

$

$

Not available

6

Toro M991941

NUT - HEXEGON U

$

$

Not available

7

Toro M270030

DISCONTINUED

$

$

Not available

8

Toro M270189

GUIDE BAR

$

$

Not available

9

Toro M991937

DISCONTINUED

$

$

Not available

10

Toro M580767

BEARING - BALL (6001-2RS)

$

$

Not available

11

Toro M580768

BEARING - BALL

$

$

Not available

12

Toro M584666

GEAR - PINION

$

$

Not available

13

Toro M591443

CRANK - COMPLETE

$

$

Not available

14

Toro M997282

ASM - ROD

$

$

Not available

15

Toro M580777

DISCONTINUED

$

$

Not available

16

Toro M997284

DISCONTINUED

$

$

Not available

17

Toro M570687

BLADE - UPPER

$

$

Not available

18

Toro M991924

DISCONTINUED

$

$

Not available

19

Toro M991919

DISCONTINUED

$

$

Not available

20

Toro M997286

DISCONTINUED

$

$

Not available

21

Toro M570688

BLADE - LOWER

$

$

Not available

22

Toro M997288

CASE - LOWER

$160.99

$

Usually ships in 3-6 days

0

23

Toro M580791

BOLT - HEX HEAD

$

$

Not available

24

Toro M580790

BOLT - HEX HEAD

$

$

Not available

25

Toro M991913

WASHER

$

$

Not available

26

Toro M991914

SCREW

$

$

Not available

27

Toro M217677

SHIELD - BLADE

$

$

Not available

28

Toro M591450

DISCONTINUED

$

$

Not available

29

Toro M591449

DISCONTINUED

$

$

Not available

30

Toro 25-9150

REPLACEMENT SERIAL PLT

$20.99

$

Usually ships in 3-6 days

0
