53041 - Toro 31" Single Action Hedge Trimmer (SN: 089000001 - 089999999) (1998) Blade And Case Assembly Parts Diagram

31" Single Action Hedge Trimmer

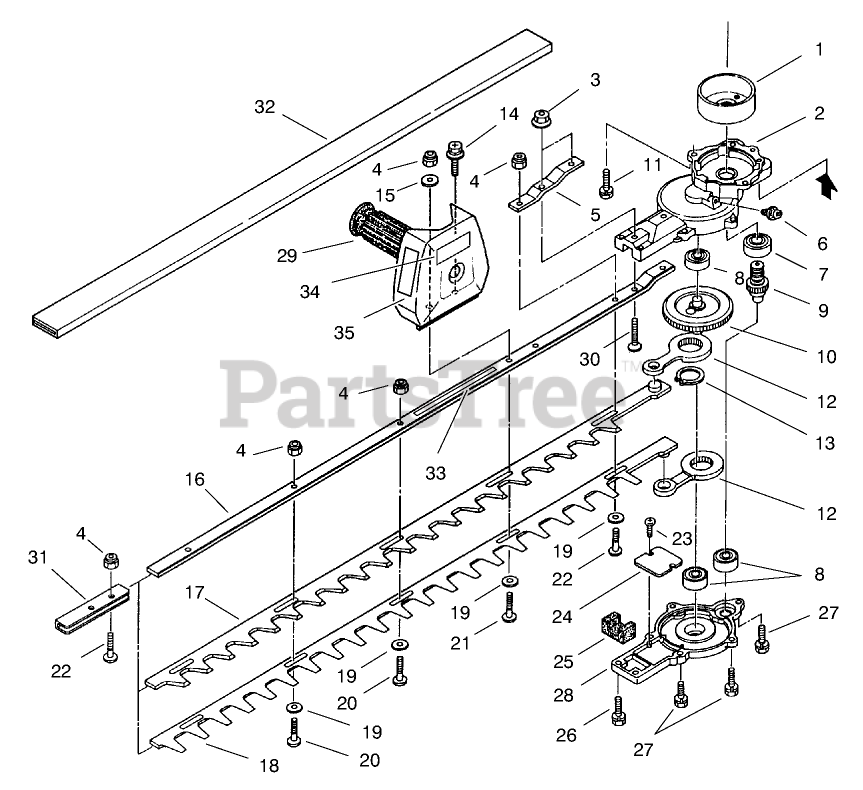

Blade And Case Assembly Parts Diagram

  • Title

1

Toro M270021

DISCONTINUED

$

$

Not available

2

Toro M591444

CASE - UPPER

$

$

Not available

3

Toro M997244

DISCONTINUED

$

$

Not available

4

Toro M991941

NUT - HEXEGON U

$

$

Not available

5

Toro M991973

DISCONTINUED

$

$

Not available

6

Toro M991937

DISCONTINUED

$

$

Not available

7

Toro M580767

BEARING - BALL (6001-2RS)

$

$

Not available

8

Toro M580768

BEARING - BALL

$

$

Not available

9

Toro M584666

GEAR - PINION

$

$

Not available

10

Toro M591443

CRANK - COMPLETE

$

$

Not available

11

Toro M270030

DISCONTINUED

$

$

Not available

12

Toro M997282

ASM - ROD

$

$

Not available

13

Toro M580777

DISCONTINUED

$

$

Not available

14

Toro M270121

DISCONTINUED

$

$

Not available

15

Toro M991964

DISCONTINUED

$

$

Not available

16

Toro M270191

ASM - GUIDE PLATE

$

$

Not available

17

Toro M991916

BLADE - UPPER

$689.99

$

Usually ships in 3-6 days

0

18

Toro M991917

BLADE - LOWER

$

$

Not available

19

Toro M991913

WASHER

$

$

Not available

20

Toro M991914

SCREW

$

$

Not available

21

Toro M991918

DISCONTINUED

$

$

Not available

22

Toro M991912

DISCONTINUED

$

$

Not available

23

Toro M991924

DISCONTINUED

$

$

Not available

24

Toro M991919

DISCONTINUED

$

$

Not available

25

Toro M997286

DISCONTINUED

$

$

Not available

26

Toro M580790

BOLT - HEX HEAD

$

$

Not available

27

Toro M580791

BOLT - HEX HEAD

$

$

Not available

28

Toro M997288

CASE - LOWER

$160.99

$

Usually ships in 3-6 days

0

29

Toro M270190

ASM - RIGHT HANDLE

$252.99

$

Usually ships in 3-6 days

0

30

Toro M991931

DISCONTINUED

$

$

Not available

31

Toro M991911

DISCONTINUED

$

$

Not available

32

Toro M270070

COVER - BLADE

$

$

Not available

33

Toro M591450

DISCONTINUED

$

$

Not available

34

Toro M591449

DISCONTINUED

$

$

Not available

35

Toro 25-9150

REPLACEMENT SERIAL PLT

$20.99

$

Usually ships in 3-6 days

0
