53047 (BP 6900) - Lawn-Boy Backpack Blower (SN: 200000001 - 200999999) (2000) CARBURETOR ASSEMBLY Parts Diagram

Backpack Blower

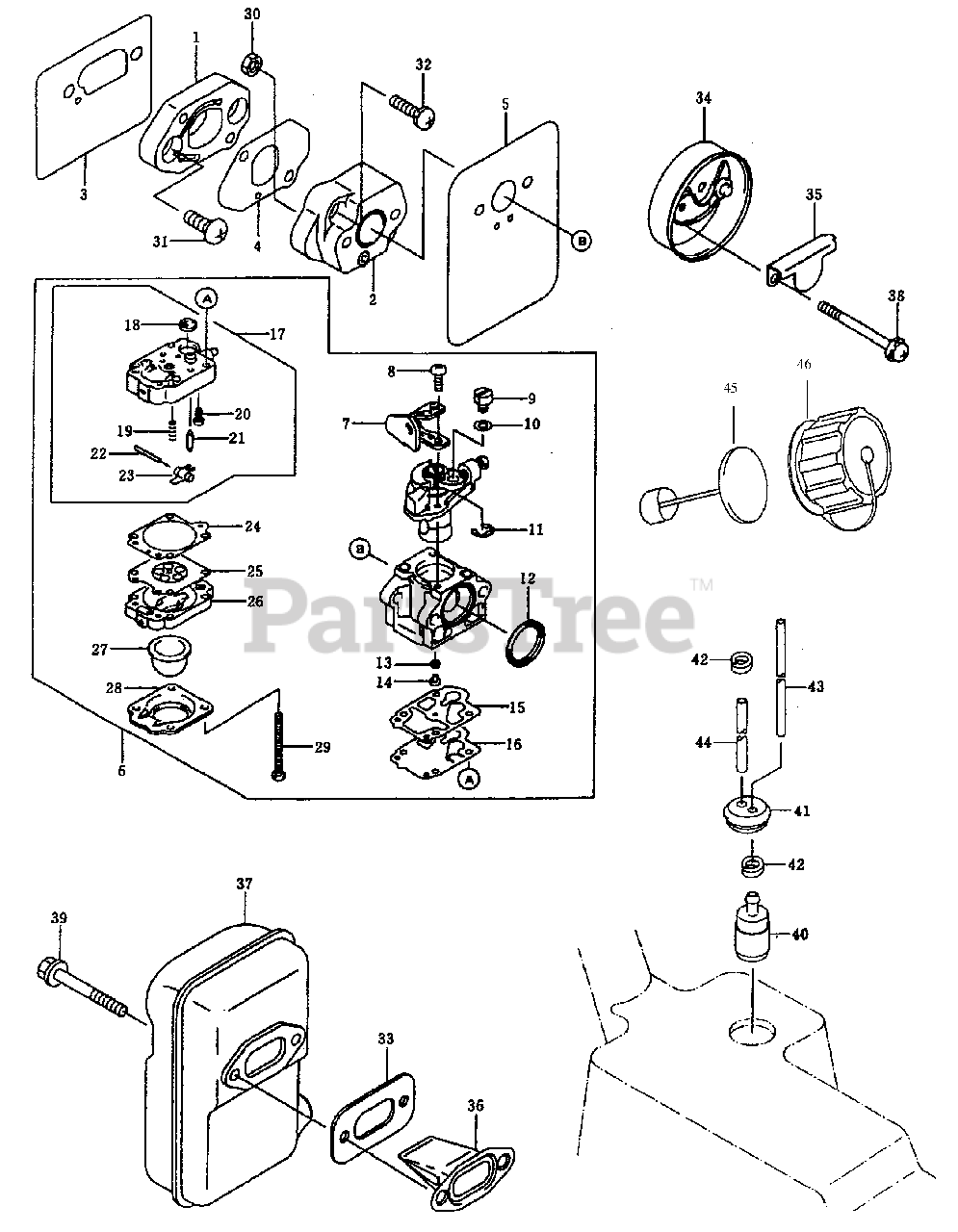

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 99-2794

Adaptor

$

$

Not available

2

Lawn-Boy 99-2792

Insulator

$

$

Not available

3

Lawn-Boy 99-2788

Gasket

$

$

Not available

4

Lawn-Boy 99-2789

Gasket

$

$

Not available

5

Lawn-Boy 99-2790

Gasket

$

$

Not available

6

Lawn-Boy 99-2791

Carburetor Assembly (Inc. Ref. # 7-29)

$

$

Not available

7

Bracket

Note: Not Serviced

$

$

Not available

8

Screw

Note: Not Serviced

$

$

Not available

9

Arm

Note: Not Serviced

$

$

Not available

10

Washer

Note: Not Serviced

$

$

Not available

11

Snap Ring

Note: Not Serviced

$

$

Not available

12

Packing

Note: Not Serviced

$

$

Not available

13

O-Ring

Note: Not Serviced

$

$

Not available

14

Main Jet

Note: Not Serviced

$

$

Not available

15

Gasket

Note: Not Serviced

$

$

Not available

16

Diaphragm

Note: Not Serviced

$

$

Not available

17

Lawn-Boy 99-2793

Body Assembly (Incl. Ref. # 18-23)

$

$

Not available

18

Filter

Note: Not Serviced

$

$

Not available

19

Spring

Note: Not Serviced

$

$

Not available

20

Screw

Note: Not Serviced

$

$

Not available

21

Float Valve

Note: Not Serviced

$

$

Not available

22

Pin

Note: Not Serviced

$

$

Not available

23

Lever

Note: Not Serviced

$

$

Not available

24

Gasket

Note: Not Serviced

$

$

Not available

25

Diaphragm

Note: Not Serviced

$

$

Not available

26

Body

Note: Not Serviced

$

$

Not available

27

Lawn-Boy 99-2795

Priming Pump

$34.99

$

Usually ships in 3-6 days

0

28

Cover-Primer Pump

Note: Not Serviced

$

$

Not available

29

Screw

Note: Not Serviced

$

$

Not available

30

Lawn-Boy 99-2796

Nut

$

$

Not available

31

Lawn-Boy 99-2797

Screw

$

$

Not available

32

Lawn-Boy 99-2798

Screw

$

$

Not available

33

Lawn-Boy 99-2800

Muffler Gasket

$

$

Not available

34

Lawn-Boy 99-2801

Air Filter Case Assembly

$148.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 99-2802

Baffle

$

$

Not available

36

Lawn-Boy 99-2803

Spark Arrester

$

$

Not available

37

Lawn-Boy 99-2804

Muffler Complete

$

$

Not available

38

Lawn-Boy 99-2805

Screw

$

$

Not available

39

Lawn-Boy 99-2806

Bolt

$

$

Not available

40

Lawn-Boy 99-2808

Fuel Filter

$

$

Not available

41

Lawn-Boy 99-2810

Fuel Tank Grommet

$

$

Not available

42

Lawn-Boy 99-2811

Fuel Filter Clamp

$

$

Not available

43

Lawn-Boy 99-2812

Tube

$

$

Not available

44

Lawn-Boy 99-2813

Tube

$

$

Not available

45

Lawn-Boy 99-2807

Breather

$

$

Not available

46

Lawn-Boy 99-2809

Cap Assembly

$

$

Not available
