53047 (BP 6900) - Lawn-Boy Backpack Blower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

Backpack Blower

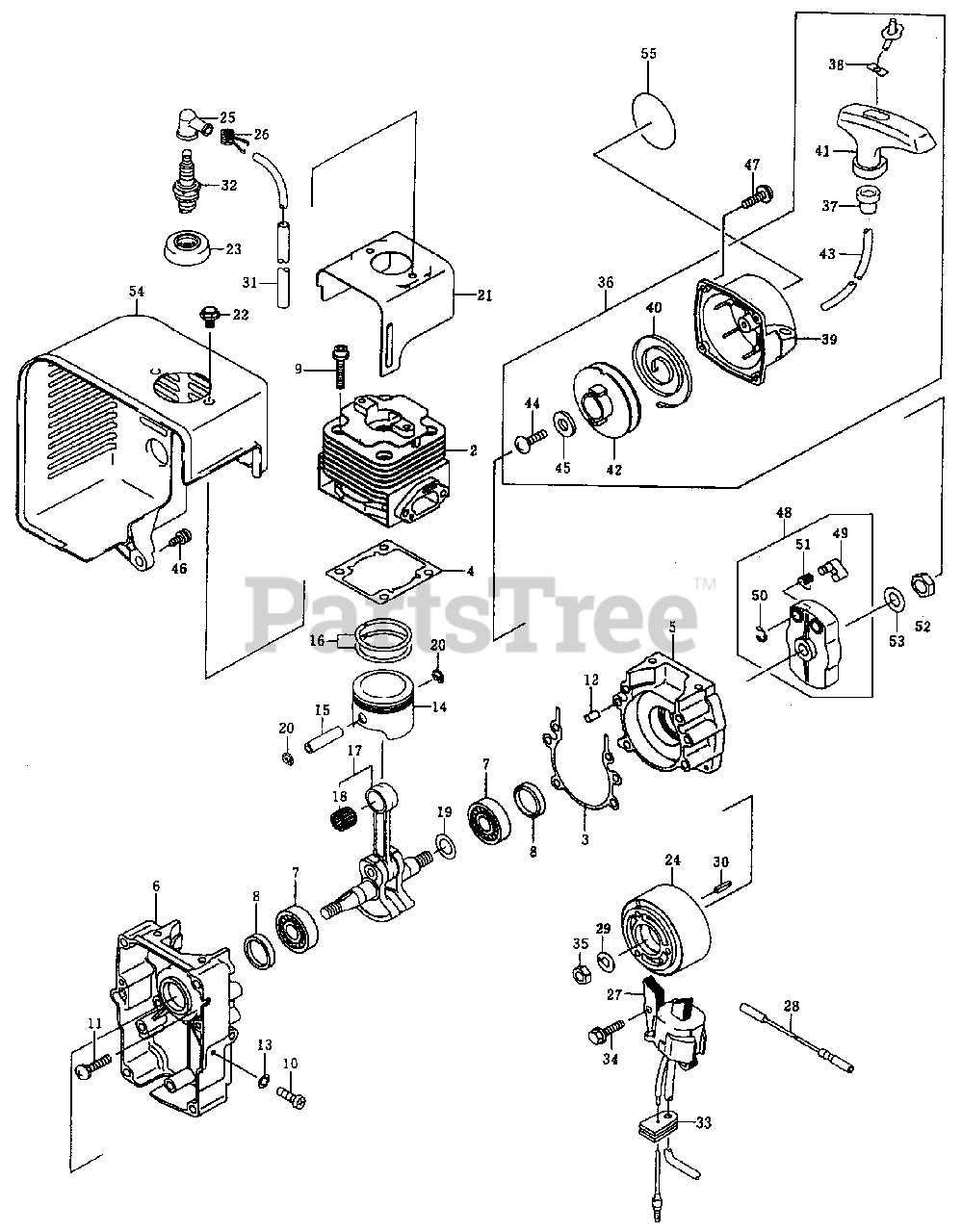

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy Ml19611

Engine

$

$

Currently unavailable

2

Lawn-Boy 99-2750

Cylinder

$

$

Not available

3

Lawn-Boy 99-2751

Gasket

$

$

Not available

4

Lawn-Boy 99-2752

Gasket

$

$

Not available

5

Lawn-Boy 99-2753

Crankcase

$

$

Not available

6

Lawn-Boy 99-2754

Crankcase

$

$

Not available

7

Lawn-Boy 99-2755

Bearing

$

$

Not available

8

Lawn-Boy 99-2756

Seal-Oil

$

$

Not available

9

Lawn-Boy 99-2757

Bolt

$

$

Not available

10

Lawn-Boy 99-2758

Screw

$

$

Not available

11

Lawn-Boy 99-2759

Screw

$

$

Not available

12

Lawn-Boy 99-2760

Pin-Dowel

$

$

Not available

13

Lawn-Boy 99-2761

Gasket

$

$

Not available

14

Lawn-Boy 99-2762

Piston

$191.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 99-2763

Piston Pin

$

$

Not available

16

Lawn-Boy 99-2764

Piston Ring Set

$

$

Not available

17

Lawn-Boy 99-2765

Crankshaft Assembly

$1296.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 99-2771

Bearing-Needle

$

$

Not available

19

Lawn-Boy 99-2766

Shim (0.10)

$

$

Not available

Lawn-Boy 99-2767

Shim (0.20)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 99-2768

Shim (0.40)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 99-2769

Shim (0.60)

Note: Not Illustrated

$

$

Not available

20

Lawn-Boy 99-2770

Snap Ring

$

$

Not available

21

Lawn-Boy 99-2772

Shroud

$

$

Not available

22

Lawn-Boy 99-2775

Bolt

$

$

Not available

23

Lawn-Boy 99-2781

Boot

$

$

Not available

24

Lawn-Boy 99-2776

Flywheel

$

$

Not available

25

Lawn-Boy 99-2777

Spark Plug Cap

$

$

Not available

26

Lawn-Boy 99-2778

Terminal

$

$

Not available

27

Lawn-Boy 99-2779

Ignition CoilAssembly

$

$

Not available

28

Lawn-Boy 99-2780

Lead Wire

$

$

Not available

29

Lawn-Boy 99-2782

Washer

$

$

Not available

30

Lawn-Boy 99-2783

Key

$

$

Not available

31

Lawn-Boy 99-2784

Tube

$

$

Not available

32

Spark Plug (NGK BPMR7A)

$

$

Not available

33

Lawn-Boy 99-2785

Grommet

$

$

Not available

34

Lawn-Boy 99-2786

Bolt

$

$

Not available

35

Lawn-Boy 99-2787

Nut

$

$

Not available

36

Lawn-Boy 99-2820

Recoil Starter

$

$

Not available

37

Lawn-Boy 99-2814

Rope Guide

$

$

Not available

38

Lawn-Boy 99-2816

Plate

$

$

Not available

39

Lawn-Boy 99-2817

Recoil Starter Case

$

$

Not available

40

Lawn-Boy 99-2826

Recoil Spring

$

$

Not available

41

Lawn-Boy 99-2818

Grip

$

$

Not available

42

Lawn-Boy 99-2821

Reel

$

$

Not available

43

Lawn-Boy 99-2822

Rope

$

$

Not available

44

Lawn-Boy 99-2823

Screw

$

$

Not available

45

Lawn-Boy 99-2828

Washer

$

$

Not available

46

Lawn-Boy 99-2774

Screw

$

$

Not available

47

Lawn-Boy 99-2824

Screw

$

$

Not available

48

Lawn-Boy 99-2819

Starting Pulley

$

$

Not available

49

Lawn-Boy 99-2815

Pawl

$

$

Not available

50

Lawn-Boy 99-2825

Snap Ring

$

$

Not available

51

Lawn-Boy 99-2827

Return Spring

$

$

Not available

52

Lawn-Boy 99-2829

Nut

$

$

Not available

53

Lawn-Boy 99-2830

Washer

$

$

Not available

54

Lawn-Boy 99-2773

Shroud

$

$

Not available

55

Lawn-Boy 98-8046

Decal-Engine

$

$

Not available
