53047 (BP 6900) - Toro Backpack Blower (SN: 089000001 - 089999999) (1998) Engine Assembly Parts Diagram

Backpack Blower

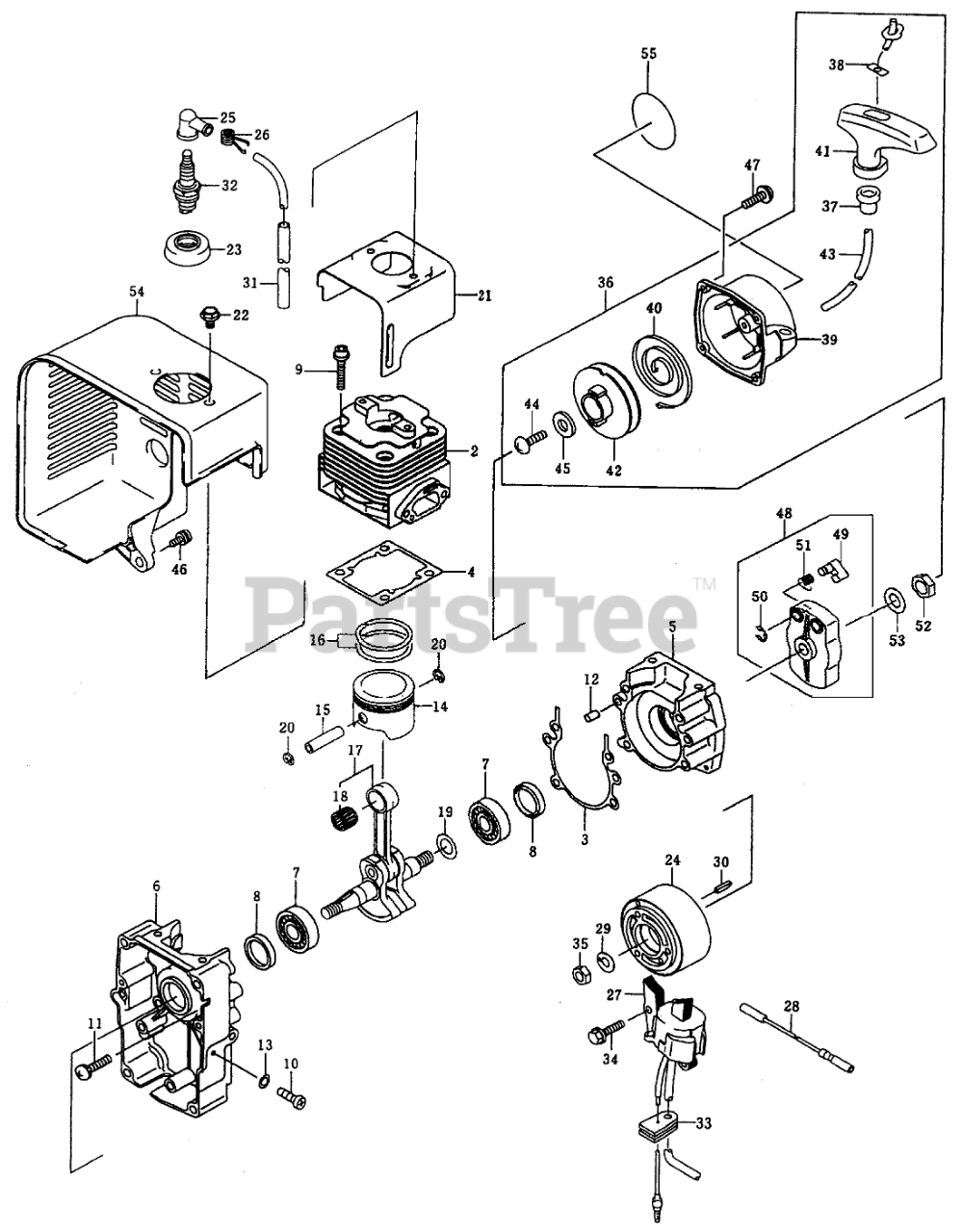

Engine Assembly Parts Diagram

  • Title

1

Toro Ml19611

Engine

$

$

Currently unavailable

2

Toro 99-2750

CYLINDER-ENGINE

$

$

Not available

3

Toro 99-2751

GASKET,CRANKCASE

$

$

Not available

4

Toro 99-2752

GASKET,CYLINDER

$

$

Not available

5

Toro 99-2753

CRANKCASE

$

$

Not available

6

Toro 99-2754

CRANKCASE "A"

$

$

Not available

7

Toro 99-2755

BEARING-BALL,6202C3

$

$

Not available

8

Toro 99-2756

SEAL-OIL

$

$

Not available

9

Toro 99-2757

DISCONTINUED

$

$

Not available

10

Toro 99-2758

DISCONTINUED

$

$

Not available

11

Toro 99-2759

DISCONTINUED

$

$

Not available

12

Toro 99-2760

DISCONTINUED

$

$

Not available

13

Toro 99-2761

DISCONTINUED

$

$

Not available

14

Toro 99-2762

PISTON-ENGINE

$

$

Not available

15

Toro 99-2763

PIN-PISTON

$

$

Not available

16

Toro 99-2764

RING SET-PISTON

$

$

Not available

17

Toro 99-2765

CRANKSHAFT-ASSY

$1428.99

$

Usually ships in 3-6 days

0

18

Toro 99-2771

BEARING-NEEDLE

$

$

Not available

19

Toro 99-2766

SHIM,T-0.10

$

$

Not available

Toro 99-2767

SHIM,T-0.20

Note: Not illustrated

$

$

Not available

Toro 99-2768

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 99-2769

SHIM,T-0.60

Note: Not illustrated

$

$

Not available

20

Toro 99-2770

RING-SNAP

$

$

Not available

21

Toro 99-2772

SHROUD-ENGINE

$

$

Not available

22

Toro 99-2775

DISCONTINUED

$

$

Not available

23

Toro 99-2781

DISCONTINUED

$

$

Not available

24

Toro 99-2776

DISCONTINUED

$

$

Not available

25

Toro 99-2777

CAP-SPARK PLUG

$

$

Not available

26

Toro 99-2778

DISCONTINUED

$

$

Not available

27

Toro 99-2779

COIL-ASSY-IGNITION

$

$

Not available

28

Toro 99-2780

DISCONTINUED

$

$

Not available

29

Toro 99-2782

DISCONTINUED

$

$

Not available

30

Toro 99-2783

DISCONTINUED

$

$

Not available

31

Toro 99-2784

DISCONTINUED

$

$

Not available

32

Spark Plug (NGK BPMR7A)

$

$

Not available

33

Toro 99-2785

DISCONTINUED

$

$

Not available

34

Toro 99-2786

DISCONTINUED

$

$

Not available

35

Toro 99-2787

DISCONTINUED

$

$

Not available

36

Toro 99-2820

STARTER-RECOIL

$

$

Not available

37

Toro 99-2814

DISCONTINUED

$

$

Not available

38

Toro 99-2816

PLATE,RECOIL STARTER

$

$

Not available

39

Toro 99-2817

CASE,RECOIL STARTER

$

$

Not available

40

Toro 99-2826

SPRING,RECOIL

$

$

Not available

41

Toro 99-2818

DISCONTINUED

$

$

Not available

42

Toro 99-2821

REEL,RECOIL STARTER

$

$

Not available

43

Toro 99-2822

DISCONTINUED

$

$

Not available

44

Toro 99-2823

DISCONTINUED

$

$

Not available

45

Toro 99-2828

DISCONTINUED

$

$

Not available

46

Toro 99-2774

DISCONTINUED

$

$

Not available

47

Toro 99-2824

DISCONTINUED

$

$

Not available

48

Toro 99-2819

DISCONTINUED

$

$

Not available

49

Toro 99-2815

DISCONTINUED

$

$

Not available

50

Toro 99-2825

DISCONTINUED

$

$

Not available

51

Toro 99-2827

DISCONTINUED

$

$

Not available

52

Toro 99-2829

DISCONTINUED

$

$

Not available

53

Toro 99-2830

DISCONTINUED

$

$

Not available

54

Toro 99-2773

SHROUD-ENGINE

$

$

Not available

55

Toro 98-8046

DISCONTINUED

$

$

Not available
