53080 - Toro Lawn Vacuum, 9 cu. ft. (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Lawn Vacuum, 9 cu. ft.

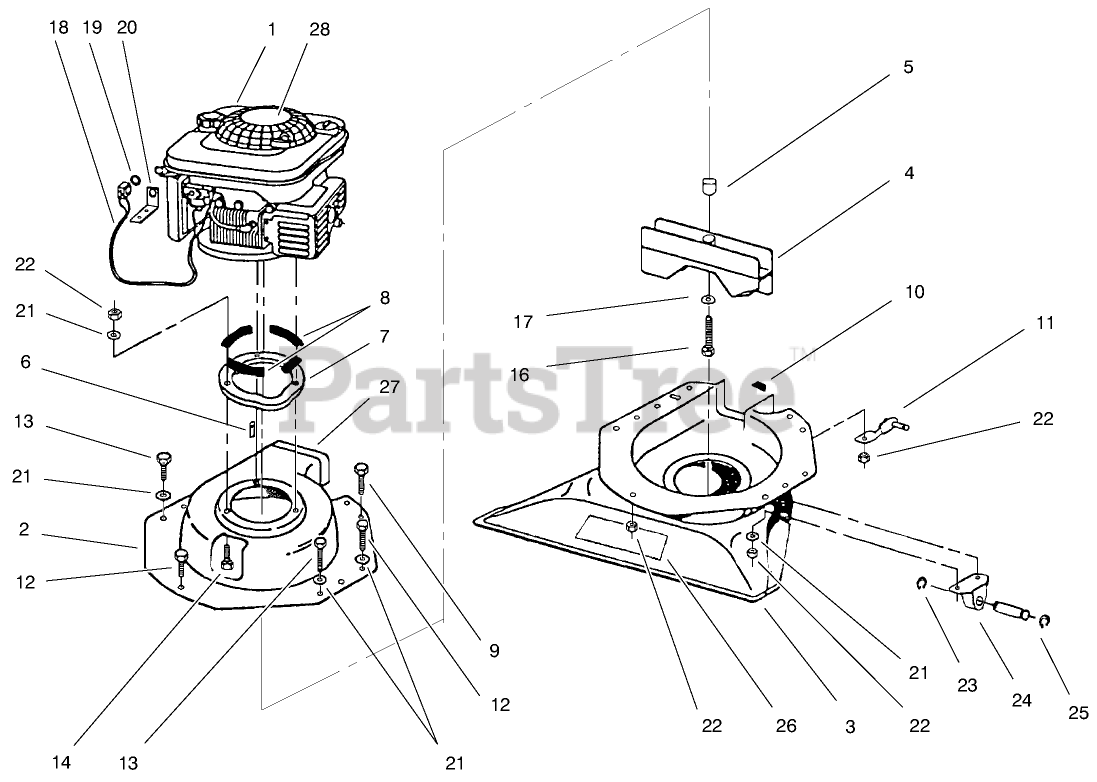

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Engine (V12F7021741A1)

$

$

Not available

2

Toro 98-2514

UPPER BLOWER HOUSING

$

$

Not available

3

Toro 98-2532

LOWER BLOWER HOUSING

$

$

Not available

4

Toro 98-2535

ASM - COMPLETE IMPELLER

$

$

Not available

5

Toro 98-2533

SPACER

$24.99

$

Usually ships in 3-6 days

0

6

Toro 98-2509

KEY

$

$

Not available

7

Toro 98-2534

ENGINE PLATE

$35.99

$

Usually ships in 3-6 days

0

8

Toro 98-2521

POLYFOAM P/S BACK

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 98-2510

RUBBER SHIM

$

$

Not available

11

Toro 98-2520

WA - ADJUSTING BRACKET

$

$

Not available

12

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

16

Toro 3211-11

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

17

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

18

Toro 98-2507

SAFETY SWITCH

$103.99

$

Usually ships in 3-6 days

0

19

Toro 98-2500

SWITCH NUT

$

$

Not available

20

Toro 98-2501

SWITCH BRACKET

$

$

Not available

21

Toro 3256-66

WASHER-FLAT

$

$

Not available

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 98-2508

RETAING RING

$

$

Not available

24

Toro 98-2525

HINGE

$83.99

$

Usually ships in 3-6 days

0

25

Toro 98-2530

PIVOT PIN

$

$

Not available

26

Toro 98-2536

DECAL - TORO

$

$

Not available

28

Toro 98-2541

DECAL - TORO

$

$

Not available

Toro 53086

Bag Platform

Note: Optional Equipment Not Illustrated

$

$

Currently unavailable

Toro 53085

Vacuum Hose Kit

Note: Optional Equipment Not Illustrated

$

$

Currently unavailable
