531 RB - Husqvarna Brush Cutter CARBURETOR Parts Diagram

Brush Cutter

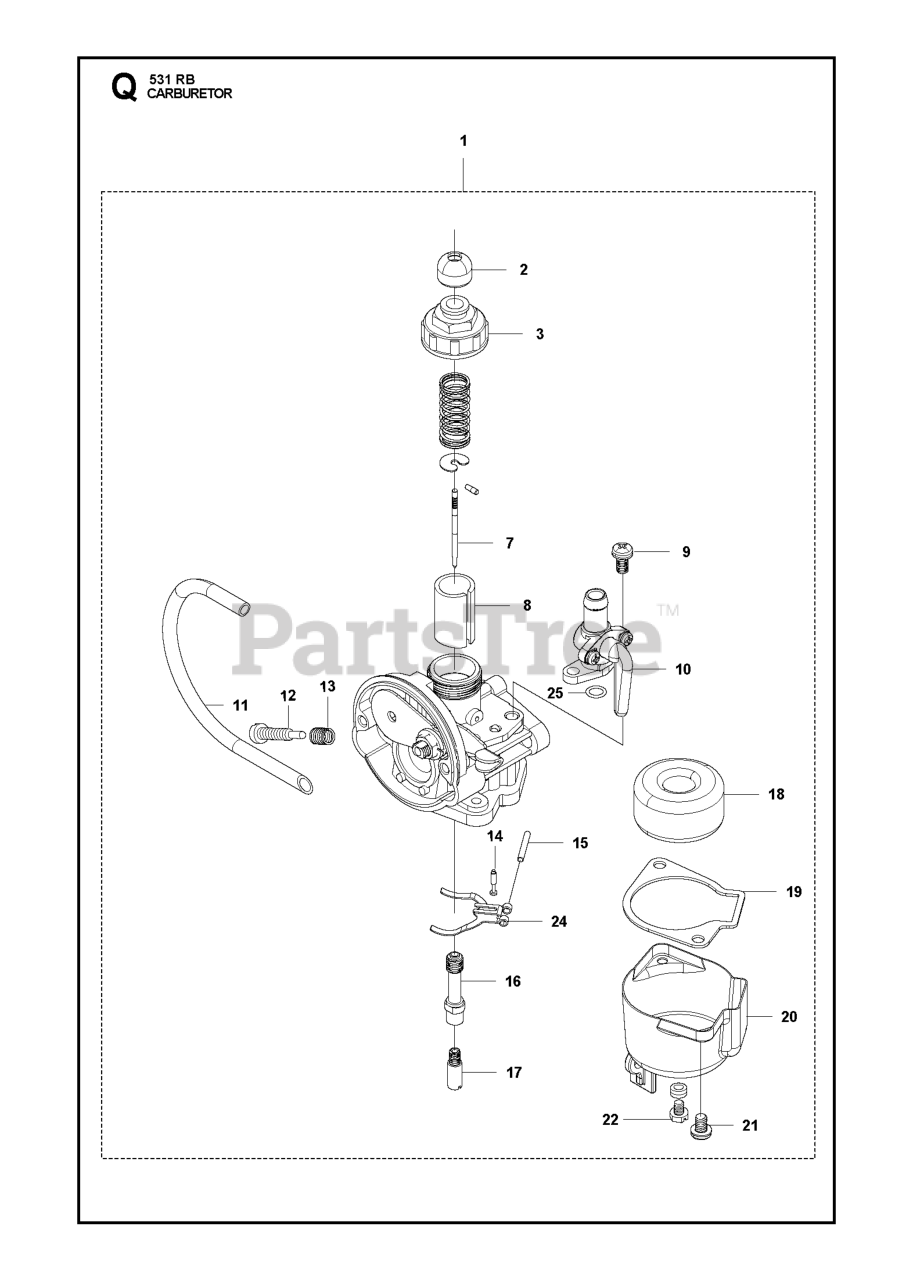

CARBURETOR Parts Diagram

  • Title

17

Husqvarna 521743101

JET MAIN

$

$

Not available

24

Husqvarna 513246001

HINGE

$

$

Not available

19

Husqvarna 513245901

PACKING

$

$

Not available

25

Husqvarna 513246601

RING

$

$

Not available

8

Husqvarna 521742901

VALVE, THROTTLE

$

$

Not available

21

Husqvarna 510464101

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 513245601

JET

$

$

Not available

22

Husqvarna 513233201

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 513370501

VALVE.NEEDLE

$

$

Not available

12

Husqvarna 513682901

SCREW.ADJUST

$

$

Not available

10

Husqvarna 513251701

COCK

$

$

Not available

1

Husqvarna 512272601

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 513369801

CAP

$

$

Not available

9

Husqvarna 510464201

SCREW

$

$

Not available

2

Husqvarna 513192101

CAP

$

$

Not available

15

Husqvarna 513246101

PIN

$

$

Not available

13

Husqvarna 513370401

SPRING

$

$

Not available

7

Husqvarna 521743001

NEEDLE

$20.99

$

Usually ships in 3-10 days

0

11

Husqvarna 513370701

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 513245801

CHAMBER

$

$

Not available

18

Husqvarna 513232201

FLOAT

$

$

Not available
