531020604 - Husqvarna Snow Blower Attachment (1998-09) FRAME Parts Diagram

Snow Blower Attachment

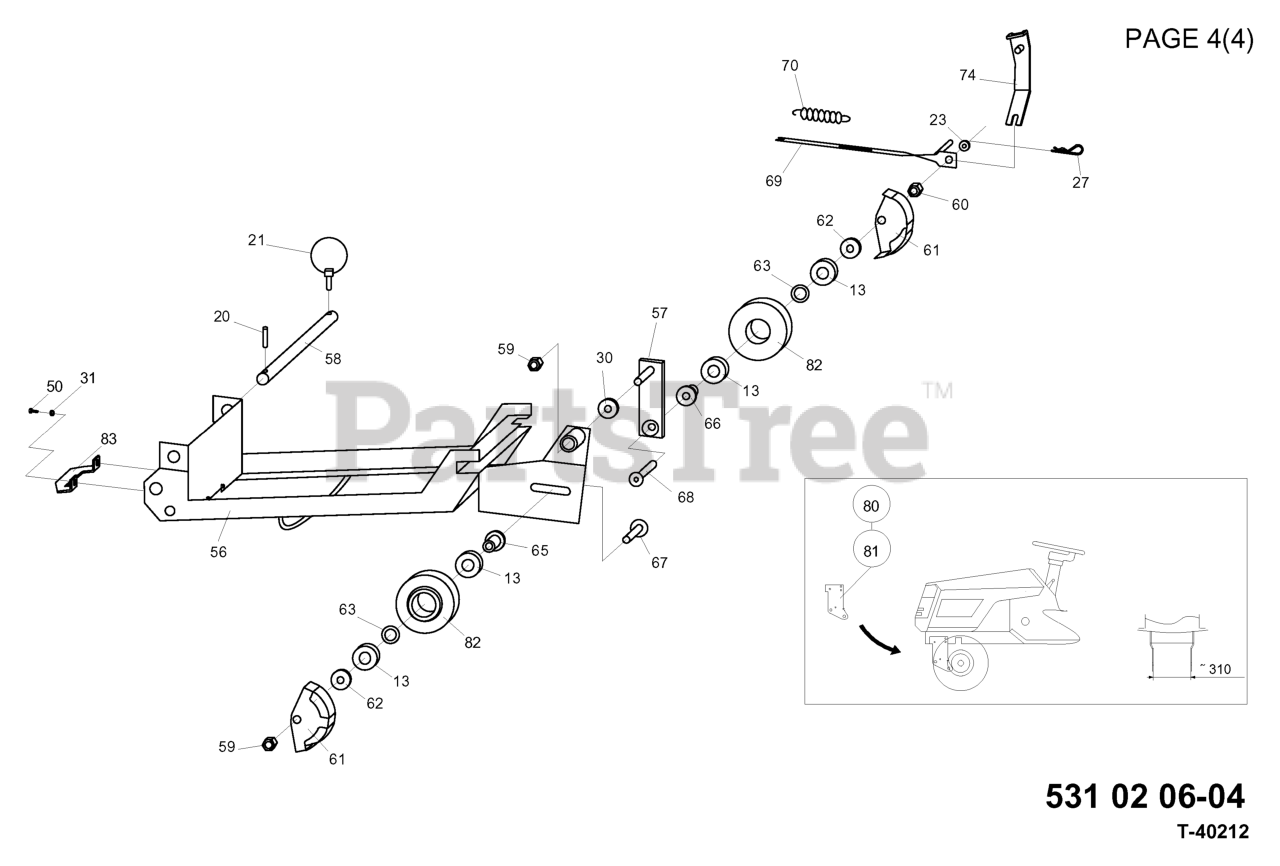

FRAME Parts Diagram

  • Title

70

Husqvarna 531005203

SPRING

$

$

Not available

63

Husqvarna 531005287

SPACER

$

$

Not available

61

Husqvarna 531005285

SUPPORT

$

$

Not available

13

Husqvarna 531021138

BEARING

$

$

Not available

80

Husqvarna 531021182

PLATE LEFT

$

$

Not available

23

Husqvarna 531021137

WASHER

$

$

Not available

74

Husqvarna 531021112

LEVER

$

$

Not available

66

Husqvarna 531005290

SPACER

$

$

Not available

31

Husqvarna 531021184

WASHER

$

$

Not available

24

Husqvarna 531021130

NUT

$

$

Not available

67

Husqvarna 531005291

SCREW

$

$

Not available

58

Husqvarna 531021218

PIN

$

$

Not available

87

Husqvarna 531021268

NEEDS DESCRIPTION

$

$

Not available

82

Husqvarna 531005261

PULLEY

$

$

Not available

68

Husqvarna 531021140

SCREW

$

$

Not available

57

Husqvarna 531005283

SUPPORT

$

$

Not available

83

Husqvarna 531021223

SUPPORT

$

$

Not available

50

Husqvarna 531021144

SCREW

$

$

Not available

65

Husqvarna 531005289

SPACER

$

$

Not available

59

Husqvarna 531021148

NUT

$

$

Not available

85

Husqvarna 531021246

NEEDS DESCRIPTION

$

$

Not available

21

Husqvarna 531005217

PIN

$

$

Not available

88

Husqvarna 531021270

NEEDS DESCRIPTION

$

$

Not available

84

Husqvarna 531021245

NEEDS DESCRIPTION

$

$

Not available

20

Husqvarna 531005216

PIN

$

$

Not available

27

Husqvarna 531005143

PIN

$

$

Not available

81

Husqvarna 531021183

PLATE R

$

$

Not available

86

Husqvarna 531021172

SCREW

$

$

Not available

60

Husqvarna 531021142

NUT

$

$

Not available

62

Husqvarna 531005286

SPACER

$

$

Not available

69

Husqvarna 531005280

BELTTENSIONER

$

$

Not available

56

Husqvarna 531021273

NEEDS DESCRIPTION

$

$

Not available

30

Husqvarna 531005265

SPACER

$

$

Not available
