535 iRXT/iRX - Husqvarna Brush Cutter BEVEL GEAR Parts Diagram

Brush Cutter

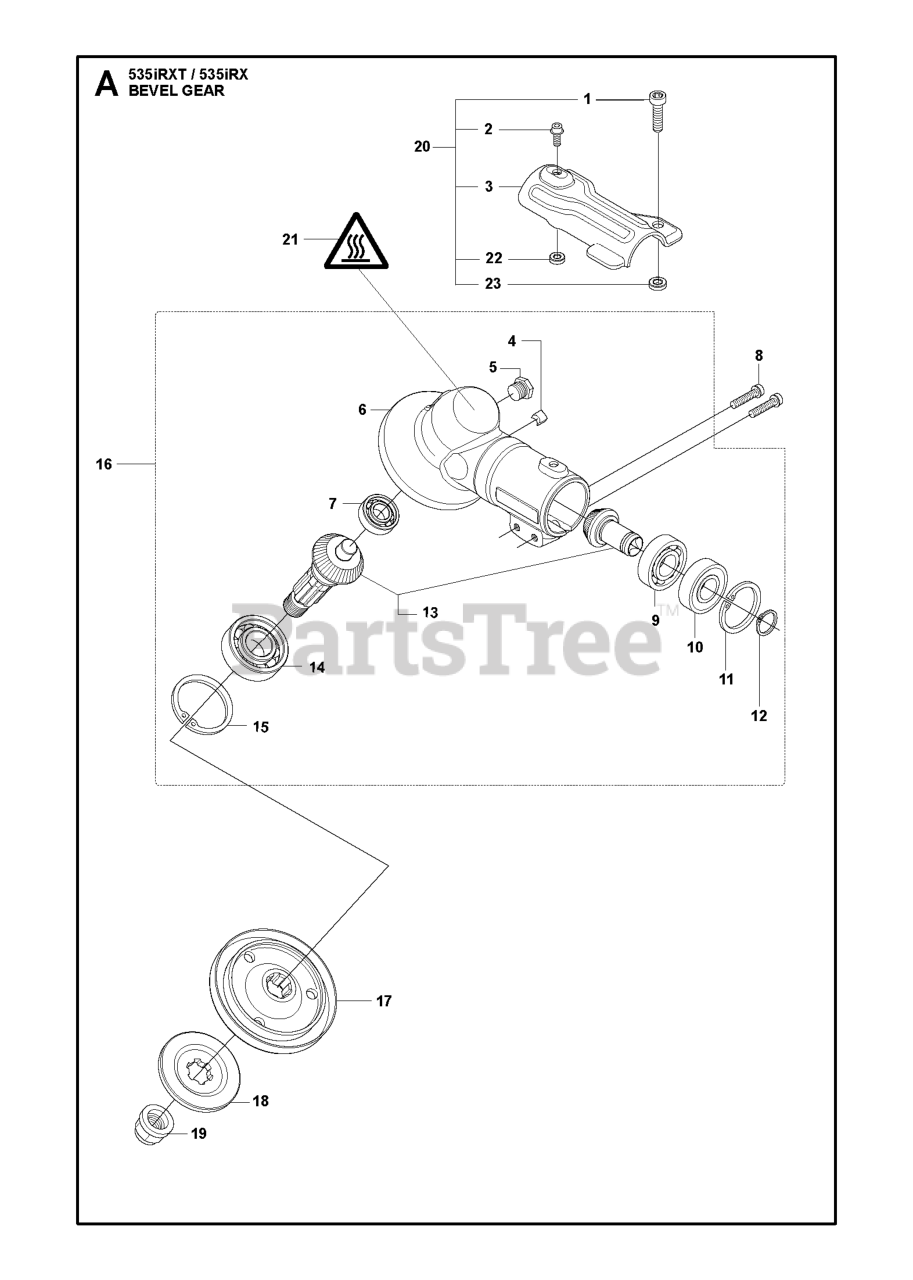

BEVEL GEAR Parts Diagram

  • Title

21

Husqvarna 544843301

DECALS

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544087601

RP HOLDER
(Superseded to 574306803)

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503201501

PLUG

$9.99

$

In Stock, Qty 6

0

1

Husqvarna 544218422

SCREWS

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574039501

LOCKING NUT

$3.99

$

In Stock, only 1 left!

0

6

Husqvarna 537295902

GEAR CASE

$121.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574404401

LOCKING NUT M6

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505133301

SPARE PARTS KIT

$72.99

$

Usually ships in 3-10 days

0

17

Husqvarna 537351402

CARRIER

Note: "(1"")"

$53.99

$

Usually ships in 3-10 days

0

10

Husqvarna 738210112

BALL BEARING

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 525755104

SCREW

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 537147401

MAGNET

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 738210110

BALL BEARING

$24.99

$

Usually ships in 3-10 days

0

19

Husqvarna 502291101

NUT BLADE

$7.99

$

In Stock, Qty 9

0

15

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 4 left!

0

20

Husqvarna 574306804

CLAMPS

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 537295803

GEAR CASE SET

$265.99

$

Usually ships in 3-10 days

0

18

Husqvarna 537343502

FLANGE

$26.99

$

Usually ships in 3-10 days

0

7

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 1 left!

0

14

Husqvarna 503252801

BALL BEARING

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525755111

SCREWS

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 735312810

RETAINING RING SGH 28

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 735311400

SEEGER CLIP

$6.49

$

In Stock, only 1 left!

0
