535 RXT - Husqvarna Brush Cutter SHAFT Parts Diagram

Brush Cutter

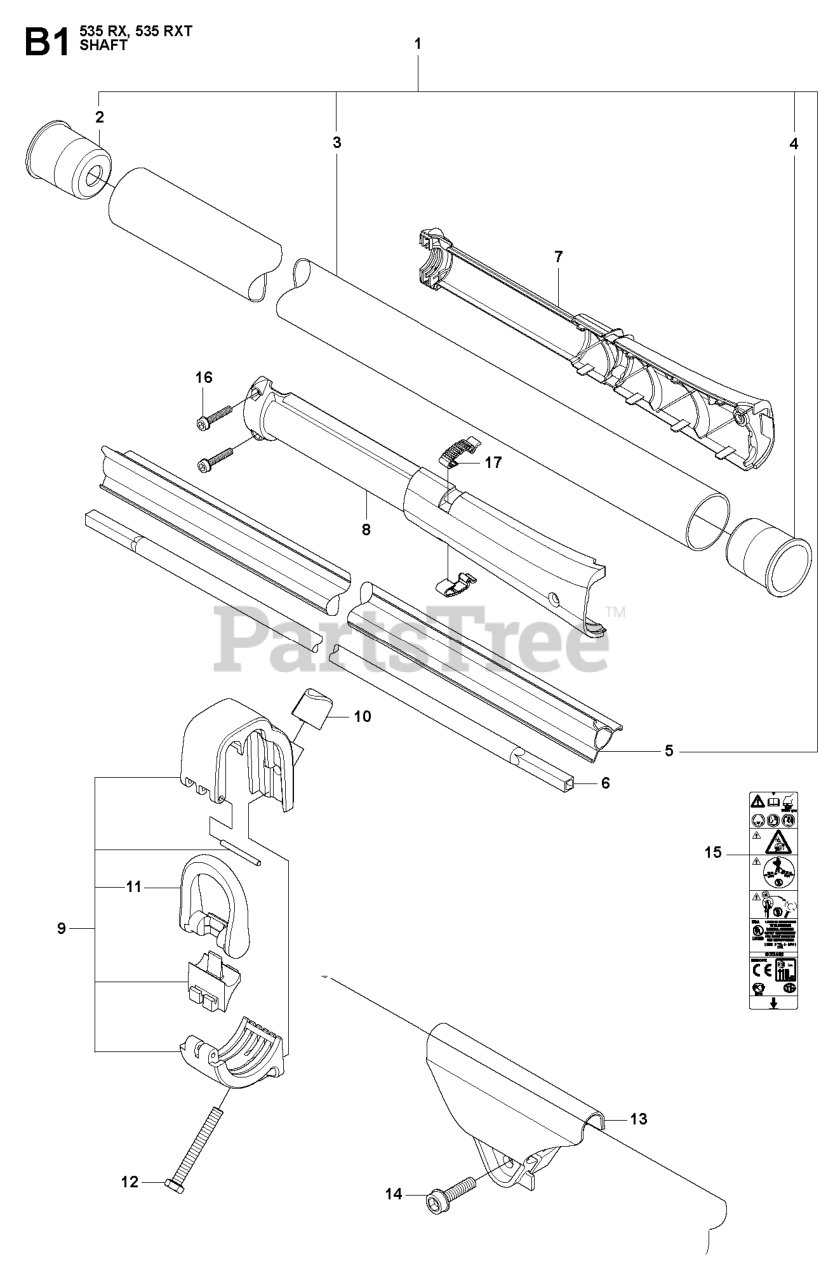

SHAFT Parts Diagram

  • Title

5

Husqvarna 537313901

GUIDE

Note: Ø = 9mm, L = 1400mm

$41.99

$

Usually ships in 3-10 days

0

15

Husqvarna 589295101

LABEL WARNING TRIMMERS AND BRU

$8.49

$

Usually ships in 3-10 days

0

7

Husqvarna 505137101

WEAR PROTECTION RIGHT

Note: 535RXT

$

$

Not available

9

Husqvarna 537349801

SUPPORT LOOP

Note: 535 RX

$27.99

$

Usually ships in 3-10 days

0

13

Husqvarna 537376101

CABLE HOLDER

Note: 535 RX

$

$

Not available

12

Husqvarna 725233151

SCREW M6S 5X20

Note: 535 RX

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 501919701

TUBE

Note: 535 RX, 535 RXT

$59.99

$

Usually ships in 3-10 days

0

6

Husqvarna 537355201

SHAFT

Note: Ø = 8mm, L = 1527mm

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537214101

TUBE
(Superseded to 501919701)

Note: Ø = 28mm, L = 1483mm

$59.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505160901

LOOP ASSY

Note: 535 RXT

$23.99

$

Usually ships in 3-10 days

0

17

Husqvarna 537387201

BUCKLE

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 505137201

WEAR PROTECTION LEFT CPL

Note: 535RXT

$

$

Not available

10

Husqvarna 537130402

KNOB

$8.49

$

Usually ships in 3-10 days

0

16

Husqvarna 503200778

SCREW

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537360202

PLUG
(Superseded to 537360201)

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503217516

SCREW

$2.49

$

In Stock, only 4 left!

0

11

Husqvarna 537350101

HOOK

$11.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537360201

PLUG

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 725233951

SCREW M6S 5X40

Note: 535 RXT

$

$

Not available
