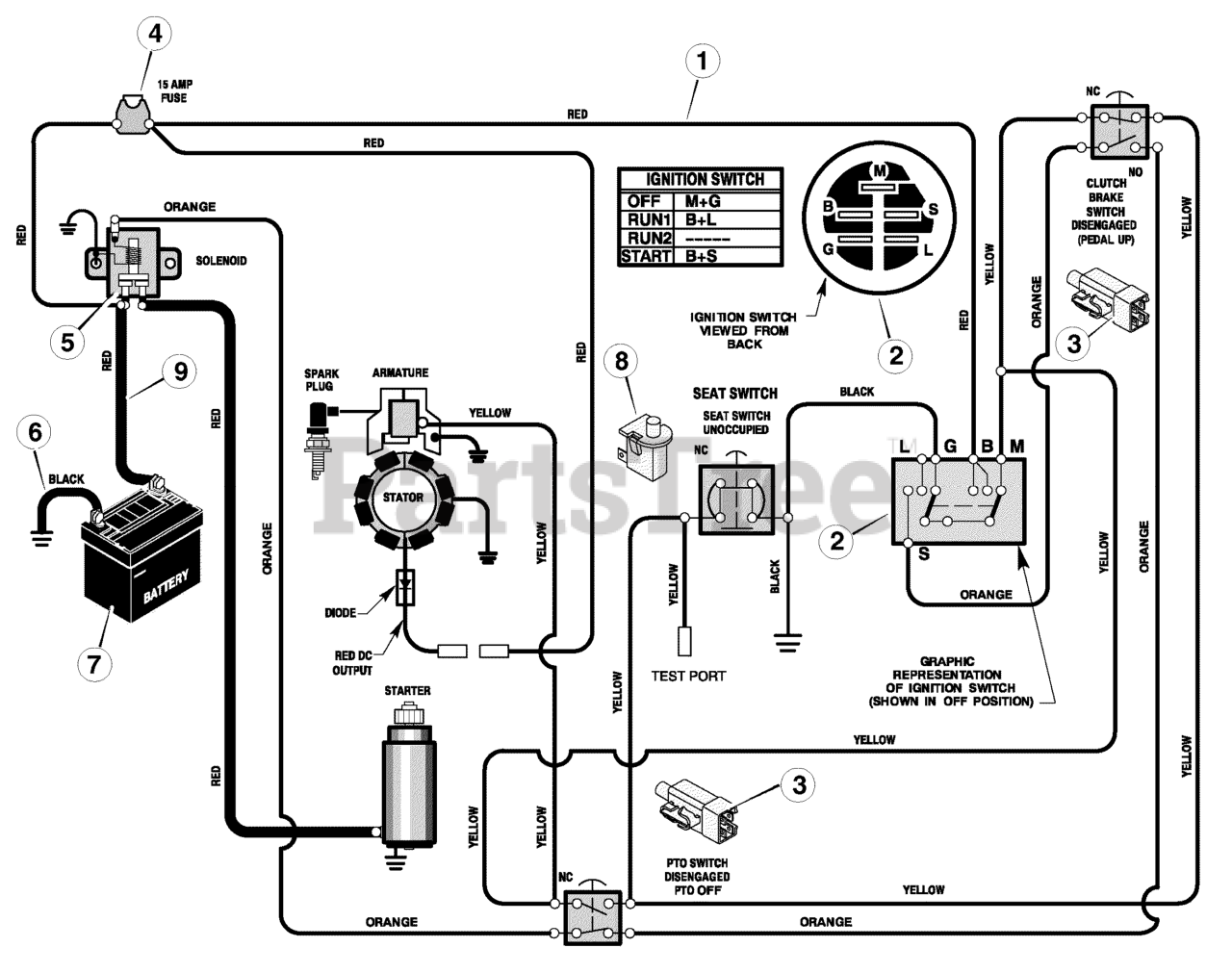

536.270281 - Craftsman 30" Rear-Engine Riding Mower (2004) (Sears) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

Electrical System Parts Diagram

  • Title

1

Murray 250X115

Harness, Chassis Wire

$41.99

$

Usually ships in 2-12 days

0

2

Murray 1401149

Switch, Ignition

$32.99

$

In Stock, only 1 left!

0

2

Murray 327349

Key, Ignition

$7.49

$

In Stock, only 1 left!

0

2

Nut, Hex

$

$

Not available

2

Cap, Ignition

$

$

Not available

3

Murray 1001575

Switch, Limit
(Superseded to 1001575MA)

$9.99

$

Usually ships in 2-12 days

0

4

Murray 54212

Fuse

$6.99

$

Usually ships in 2-12 days

0

4

Murray 407078

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

5

Murray 94613

Solenoid
(Superseded to 691680)

$5.99

$

In Stock, only 4 left!

0

5

Murray 26X229

Screw, Mounting
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

5

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

6

Murray 24X37MA

Cable, Battery Ground

$22.99

$

Usually ships in 2-12 days

0

6

Screw, Ground Cable

$

$

Not available

7

Murray 92739

Battery

$

$

Currently unavailable

7

Murray 002X82

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

7

Murray 014X79

Wingnut
(Superseded to 014X79MA)

$4.99

$

Usually ships in 2-12 days

0

8

Murray 94159

Switch, Seat Sensor

$12.99

$

Usually ships in 2-12 days

0

9

Murray 024X24

Cable, Red Batery
(Superseded to 024X24MA)

$8.49

$

Usually ships in 2-12 days

0

9

Murray 690604MA

BOOT, Battery Terminal, Positive

$5.99

$

Usually ships in 2-12 days

0
