536.292524-00 - Craftsman Cultivator (2004) (Sears) Handle Assembly Parts Diagram

Cultivator

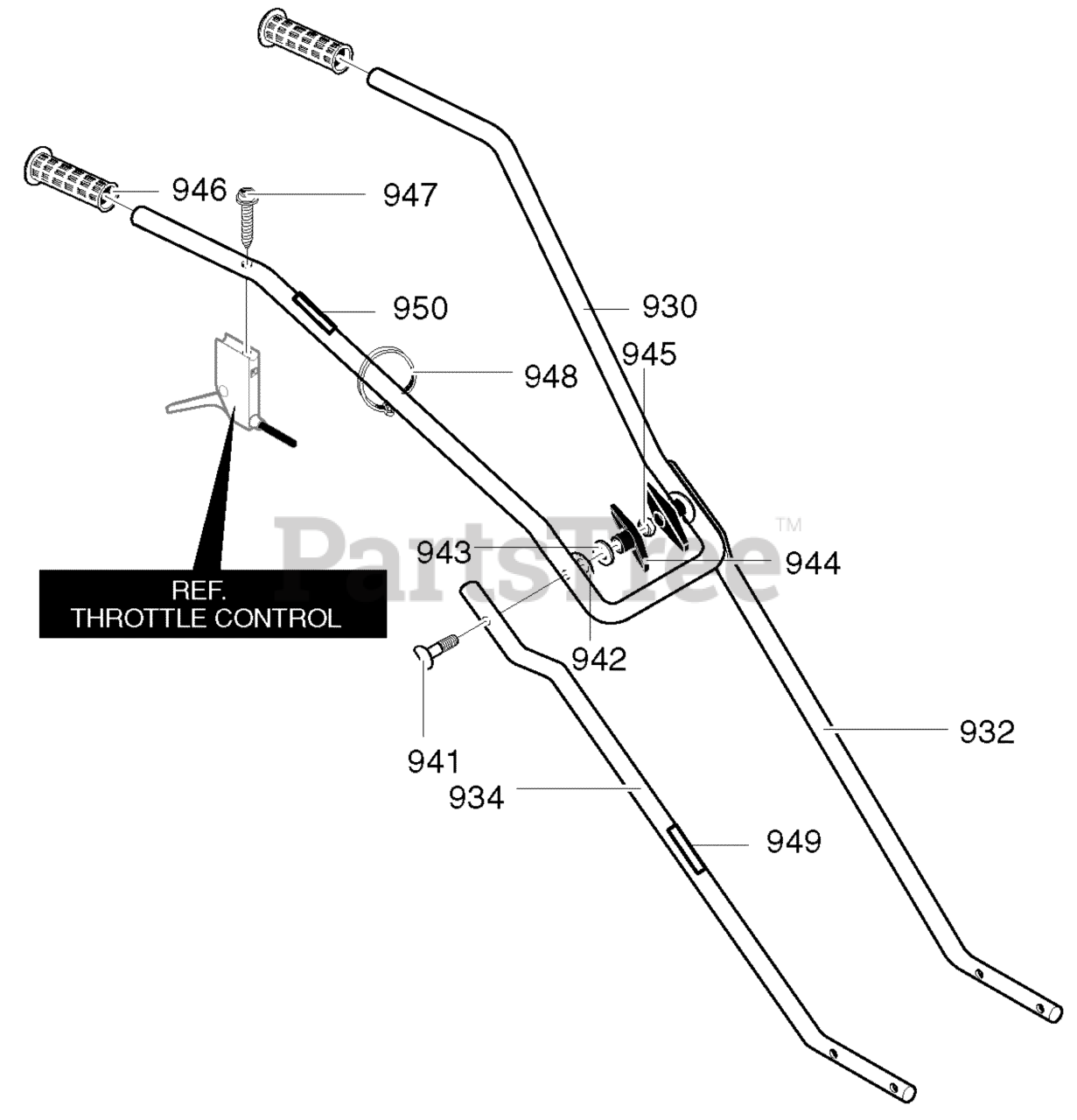

Handle Assembly Parts Diagram

  • Title

930

Murray 7401025

Upper Handle

Note: (Includes Ref. No. 950)

$

$

Currently unavailable

932

Murray 339398E701

Lower Handle LH

$59.99

$

Usually ships in 2-12 days

0

934

Murray 7401022

Lower Handle RH

Note: (Includes Ref. No. 949.)

$

$

Not available

941

Murray 315288

Bolt 5/16-18x1.75

$3.99

$

In Stock, only 2 left!

0

942

Murray 783000

Formed Washer

$5.49

$

Usually ships in 2-12 days

0

943

Murray 120393

Flat washer

$

$

Not available

944

Murray 57171

T Knob
(Superseded to 1501260MA)

$7.99

$

In Stock, only 3 left!

0

945

Murray 0015X2

Nut, 5/16-18

$3.99

$

In Stock, only 1 left!

0

946

Murray 56778

Hand Grip

$9.99

$

Usually ships in 2-12 days

0

947

Murray 426635

Screw, 10-16x1.50

$3.49

$

Usually ships in 2-12 days

0

948

Murray 71372

Cable Tie

$4.49

$

In Stock, only 1 left!

0

949

Murray 305828

Decal, Caution (Starting)

$9.99

$

Usually ships in 2-12 days

0

950

Murray 48X4030

Decal, Throttle Control

$10.99

$

Usually ships in 2-12 days

0
