536.772321 - Craftsman Lawn Edger (2006) (Sears) Frame Assembly Parts Diagram

Lawn Edger

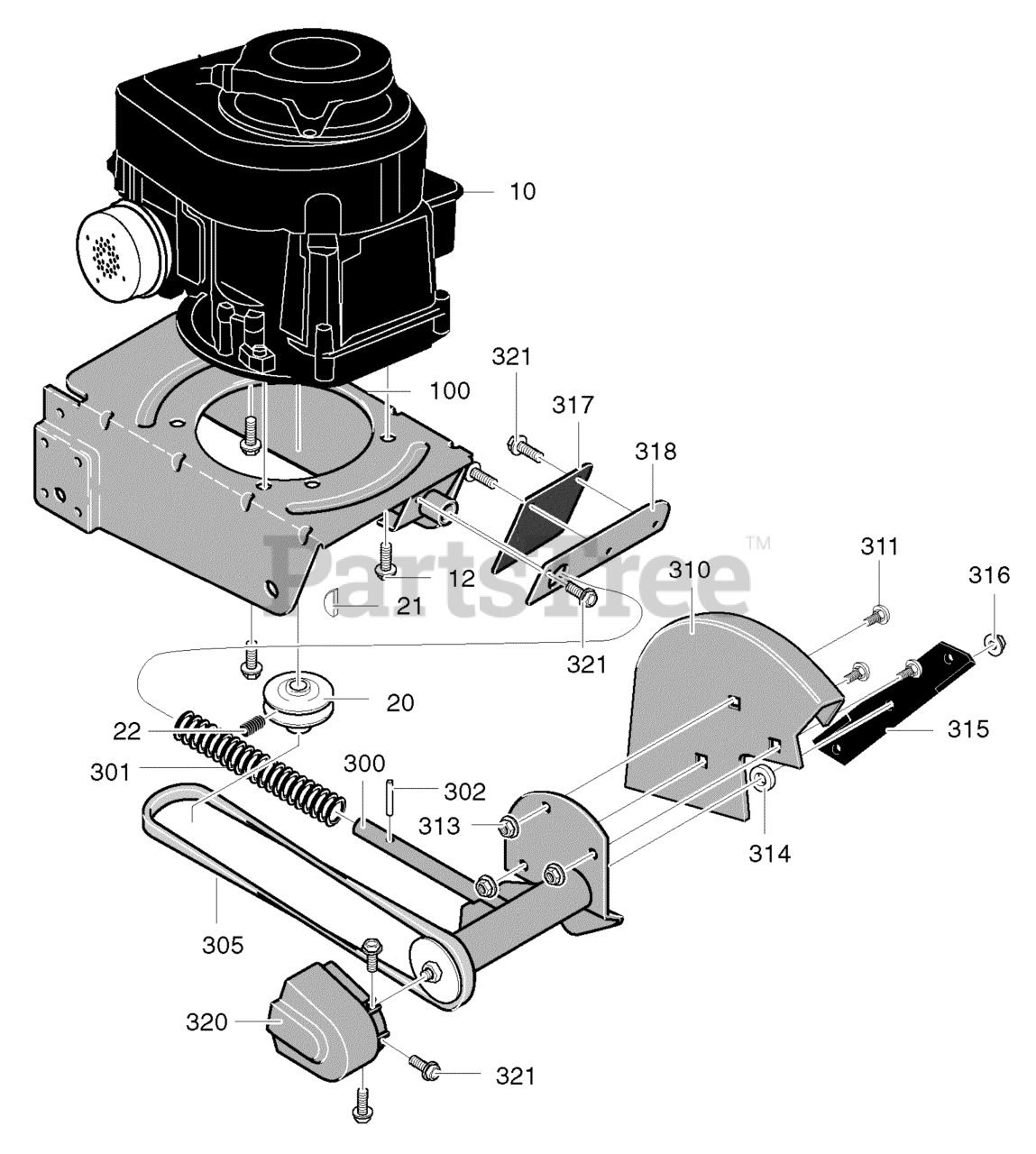

Frame Assembly Parts Diagram

  • Title

10

ENGINE 3.5 HP 09J902-0111-E1

$

$

Not available

12

Murray 0025X6

Screw
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

20

Murray 52052

Pulley, V3L

$32.99

$

Usually ships in 2-12 days

0

21

Murray 338490

Key, Hi Pro #505

$4.99

$

Usually ships in 2-12 days

0

22

Murray 120580

Screw, Set

$

$

Not available

100

Murray 740121E601

Frame, Edger

$113.99

$

Usually ships in 2-12 days

0

300

Murray 339283

Quill Assembly

$

$

Not available

301

Murray 51603

Spring
(Superseded to 7051603YP)

$35.99

$

In Stock, only 1 left!

0

302

Murray 412281

Spring Pin

$3.99

$

Usually ships in 2-12 days

0

305

Murray 32668

Belt, V4L

$19.99

$

In Stock, Qty 6

0

310

Murray 331076E601

Blade Guard

$75.99

$

Usually ships in 2-12 days

0

311

Murray 002X53

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

313

Murray 015X88

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

314

Murray 22265

Flat washer

$4.99

$

Usually ships in 2-12 days

0

315

Murray 740297

Blade, Edger

$

$

Not available

316

Murray 46023

NUT, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

317

Murray 338582

Deflector, Rubber

$9.99

$

Usually ships in 2-12 days

0

318

Murray 337792E601

Plate, Rubber Flap

$16.99

$

Usually ships in 2-12 days

0

320

Murray 336631

Belt Guard

$

$

Not available

321

Murray 26X245

Screw, 10-16x.50

$4.49

$

In Stock, Qty 6

0

-

Murray MS3592

Instruction Manual

$

$

Currently unavailable
