536.772350 - Craftsman Lawn Edger (2006) (Sears) Handle Assembly Parts Diagram

Lawn Edger

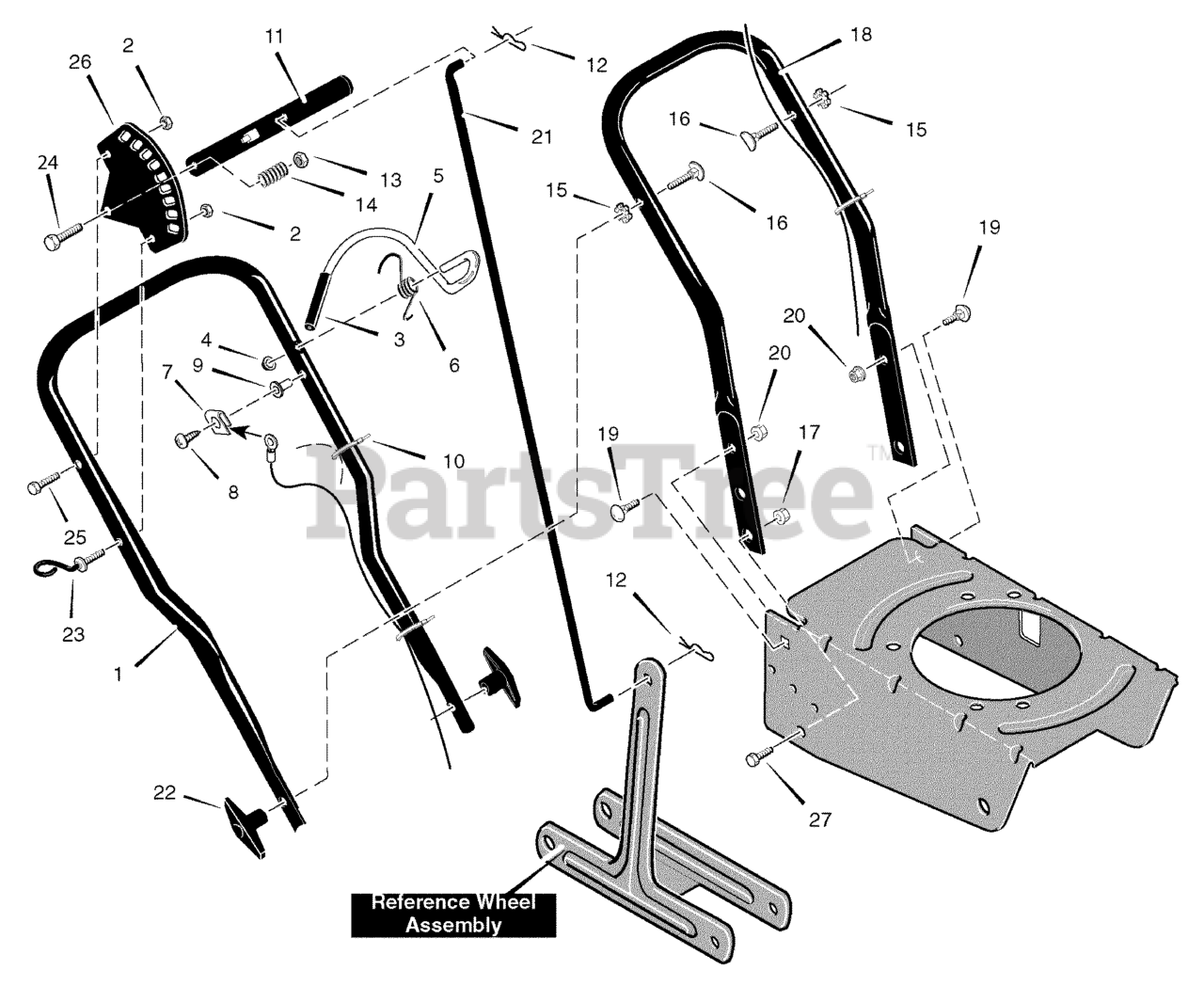

Handle Assembly Parts Diagram

  • Title

1

Murray 740142E701

Upper Handle

$100.99

$

Usually ships in 2-12 days

0

2

Murray 782585

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

3

Murray 339489

Cap, Operator Control

$4.49

$

Usually ships in 2-12 days

0

4

Murray 314276

Nut, Push On

$3.99

$

Usually ships in 2-12 days

0

5

Murray 337744

Bail, Operator Control

$28.99

$

Usually ships in 2-12 days

0

6

Murray 337775

Torsion Spring

$3.99

$

Usually ships in 2-12 days

0

7

Murray 340162

Clip, Grounding

$3.99

$

Usually ships in 2-12 days

0

8

Murray 57796

Screw, #6x.50

$

$

Not available

9

Murray 339229

Insulator, Oper Control

$3.99

$

Usually ships in 2-12 days

0

10

Murray 071372

Cable Tie

$4.49

$

In Stock, only 1 left!

0

11

Murray 1701062E701

Handle, Depth

$

$

Not available

12

Murray 36368

Hair Pin

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X43

NUT, 5/16-18

$3.49

$

In Stock, Qty 11

0

14

Murray 25644

Spring, Compression

$4.49

$

Usually ships in 2-12 days

0

15

Murray 138485

Washer

$4.99

$

Usually ships in 2-12 days

0

16

Murray 315288

BOLT, 5/16-18X.75

$3.99

$

In Stock, only 2 left!

0

17

Murray 1498

NUT, 5/16-18

$

$

Not available

18

Murray 1701051E701

Lower Handle

$125.99

$

Usually ships in 2-12 days

0

19

Murray 711558

BOLT, 5/16-18X.75

$

$

Not available

20

Murray 015X79

NUT, 5/16-18

$5.49

$

In Stock, Qty 20+

0

21

Murray 1701064E701

Rod, Control

$33.99

$

Usually ships in 2-12 days

0

22

Murray 071495

Wing Knob 5/16-18

$4.99

$

In Stock, only 3 left!

0

23

Murray 672510

Rope Guide

$5.99

$

Usually ships in 2-12 days

0

24

Murray 180081

Screw

$3.49

$

Usually ships in 2-12 days

0

25

Murray 180024

Screw, 1/4-20x1.25

$3.49

$

Usually ships in 2-12 days

0

26

Murray 1701063E701

Bracket, Adj. Quadrant

$25.99

$

Usually ships in 2-12 days

0

27

Murray 126380

Bolt, 5/16-18x2.00

$

$

Not available
