536.772350 - Craftsman Lawn Edger (2006) (Sears) Wheel Assembly Parts Diagram

Lawn Edger

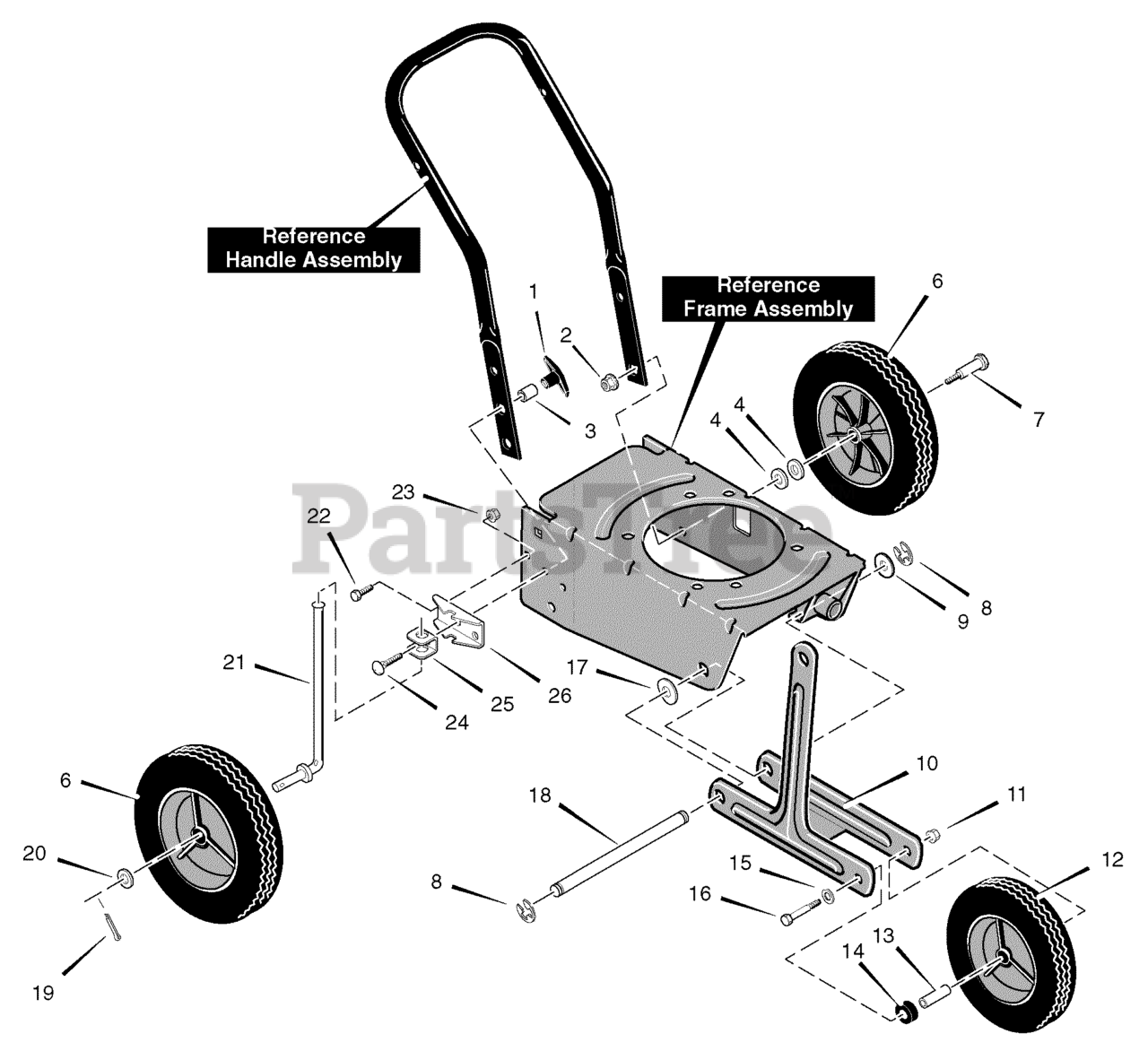

Wheel Assembly Parts Diagram

  • Title

1

Murray 71294

Knob, Wing

$7.99

$

In Stock, only 3 left!

0

2

Murray 015X68

Locknut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

3

Murray 45222

Spacer, Sleeve

$

$

Not available

4

Murray 845

Washer

$1.49

$

Usually ships in 2-12 days

0

6

Murray 336545

Tire & Rim

$33.99

$

In Stock, only 1 left!

0

7

Murray 0009X6

Bolt, Shoulder

$

$

Currently unavailable

8

Murray 011X16

Ring, Ret E.

$3.99

$

Usually ships in 2-12 days

0

9

Murray 417098

Flat washer

$3.99

$

Usually ships in 2-12 days

0

10

Murray 1701050E701

Arm, Front Wheel

$

$

Not available

11

Murray 015X88

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Murray 336546

Tire & Rim

$

$

Not available

13

Murray 1701052

Spacer, Sleeve
(Superseded to 1701052SM)

$12.99

$

Usually ships in 2-12 days

0

14

Murray 1701054

Washer, Nylon
(Superseded to 1701054SM)

$47.99

$

Usually ships in 2-12 days

0

15

Murray 120393

Flat washer

$

$

Not available

16

Murray 180091

Screw

$

$

Not available

17

Murray 0020X3

Spring Washer

$4.49

$

In Stock, Qty 10

0

18

Murray 740091

Rod, Axle Front

$14.99

$

Usually ships in 2-12 days

0

19

Murray 030X20

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Murray 017X91

Washer
(Superseded to 017X91MA)

$5.49

$

In Stock, only 4 left!

0

21

Murray 310896

Rod, Wheel Support

$

$

Not available

22

Murray 180077

Screw, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

23

Murray 1498

NUT, 5/16-18

$

$

Not available

24

Murray 126380

Bolt, 5/16-18x2.00

$

$

Not available

25

Murray 8082

Clevis

$26.99

$

In Stock, only 1 left!

0

26

Murray 6842

Bracket, Curb-Hop

$7.99

$

In Stock, only 1 left!

0
