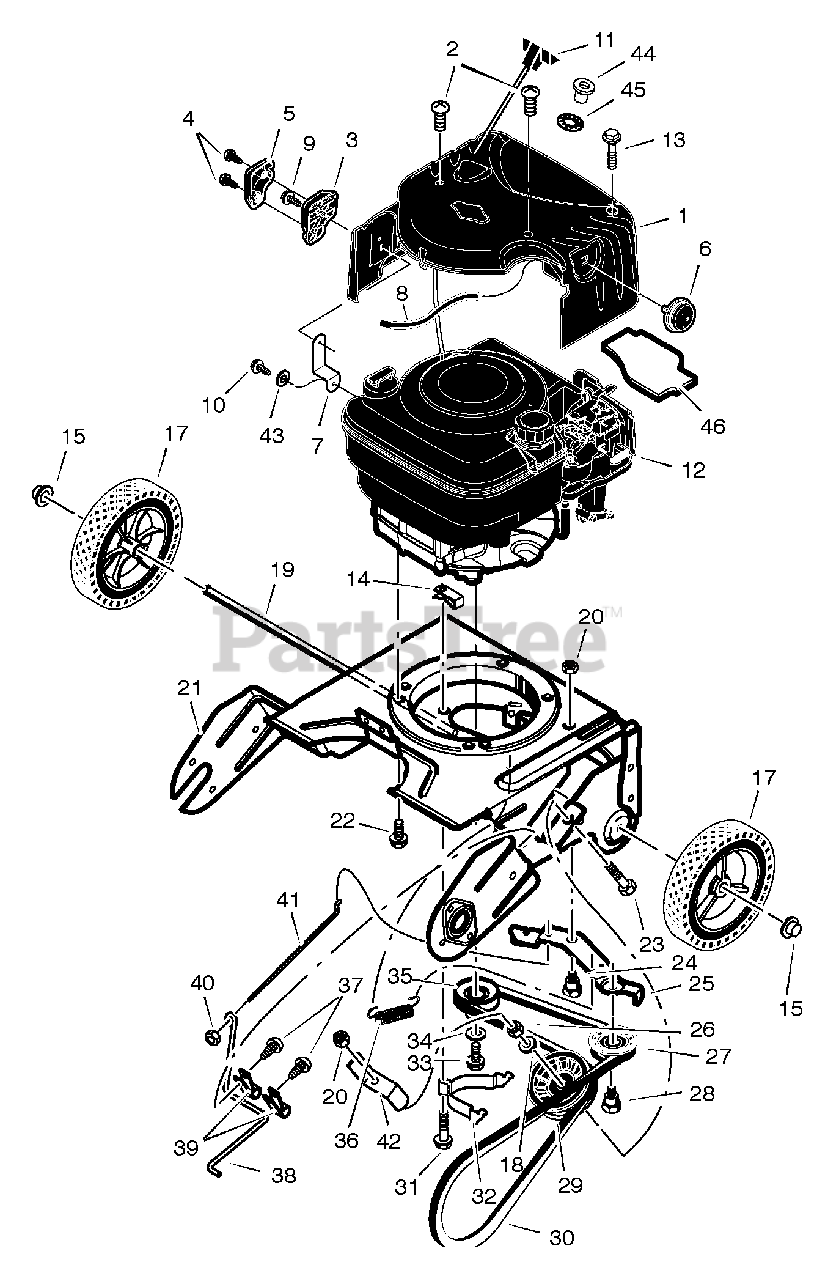

536.881400 - Craftsman 21" Snow Thrower (2005) (Sears) Drive Components Parts Diagram

21" Snow Thrower

Drive Components Parts Diagram

  • Title

1

Murray 1501812MA

Cover, Top

$103.99

$

Usually ships in 2-12 days

0

2

Murray 26X316MA

Screw

$4.49

$

In Stock, only 2 left!

0

3

Murray 1501814MA

Base, Chute Rod

$7.99

$

In Stock, only 1 left!

0

4

Murray 26X292MA

Screw

$7.49

$

Usually ships in 2-12 days

0

5

Murray 1501815MA

Cover, Chute Rod

$12.99

$

In Stock, only 2 left!

0

6

Murray 1501911

Primerbulb, Red

$

$

Not available

7

Murray 1501813MA

Bracket, Engine Chute

$4.99

$

Usually ships in 2-12 days

0

8

Murray 1259MA

Hose

$7.99

$

In Stock, only 2 left!

0

9

Murray 780212

Screw

$

$

Not available

10

Murray 578408

Screw

$

$

Not available

11

Murray 1501724MA

Handle, Starter
(Superseded to 691915)

$6.49

$

In Stock, Qty 12

0

12

Engine

$

$

Not available

13

Murray 01X215MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

14

Murray 578109MA

Retainer

$6.49

$

In Stock, Qty 8

0

15

Murray 711627MA

Nut, Push Cap

$

$

Not available

17

Murray 760713MA

Wheel & Tire
(Superseded to 760714MA)

$24.99

$

Usually ships in 2-12 days

0

18

Murray 71072

Washer

$

$

Not available

19

Murray 762280

Axle

$28.99

$

In Stock, only 1 left!

0

20

Murray 71111

Nut

$

$

Not available

21

Murray 1502011E549MA

Frame, Motor Box
(Superseded to 1502011E701MA)

$319.99

$

Usually ships in 2-12 days

0

22

Murray 47792MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

23

Murray 71007

Bolt

$

$

Not available

24

Murray 712233

Bolt, Shoulder

$7.49

$

Usually ships in 2-12 days

0

25

Murray 762254

Bracket, Idler Arm

$19.99

$

Usually ships in 2-12 days

0

26

Murray 71044

Nut

$3.49

$

Usually ships in 2-12 days

0

27

Murray 762257MA

Pulley, V-Belt

$18.99

$

Usually ships in 2-12 days

0

28

Murray 762258

Bolt, Shoulder

$7.49

$

Usually ships in 2-12 days

0

29

Murray 762256MA

Pulley, Flat Idler

$

$

Not available

30

Murray 37X131

Belt

$63.99

$

Usually ships in 2-12 days

0

31

Murray 315312

Screw

$3.49

$

Usually ships in 2-12 days

0

32

Murray 762267

Guide, Belt

$6.49

$

Usually ships in 2-12 days

0

33

Murray 910828MA

Screw
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

34

Murray 71060

Washer
(Superseded to 1501670MA)

$

$

Not available

35

Murray 762255MA

Pulley

$19.99

$

Usually ships in 2-12 days

0

36

Murray 165X143MA

Spring

$6.49

$

Usually ships in 2-12 days

0

37

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

38

Murray 762288

Arm, Brake

$9.99

$

Usually ships in 2-12 days

0

39

Murray 762285

Clamp

$3.99

$

Usually ships in 2-12 days

0

40

Murray 312300MA

Nut
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

41

Murray 762287

Rod, Adjustment

$9.99

$

Usually ships in 2-12 days

0

42

Murray 762380

Guide, Belt

$31.99

$

Usually ships in 2-12 days

0

43

Murray 018X35MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

44

Murray 1501919MA

Guide, Rope

$3.99

$

Usually ships in 2-12 days

0

45

Murray 028X84MA

Spring Grip Washer

$3.49

$

Usually ships in 2-12 days

0

46

Murray 1501920

Seal, Foam

$9.49

$

Usually ships in 2-12 days

0

--

Murray F-051009C

Book, Instruction

$

$

Currently unavailable
