536.881750 - Craftsman 24" Snow Thrower (2004) (Sears) Frame Parts Diagram

24" Snow Thrower

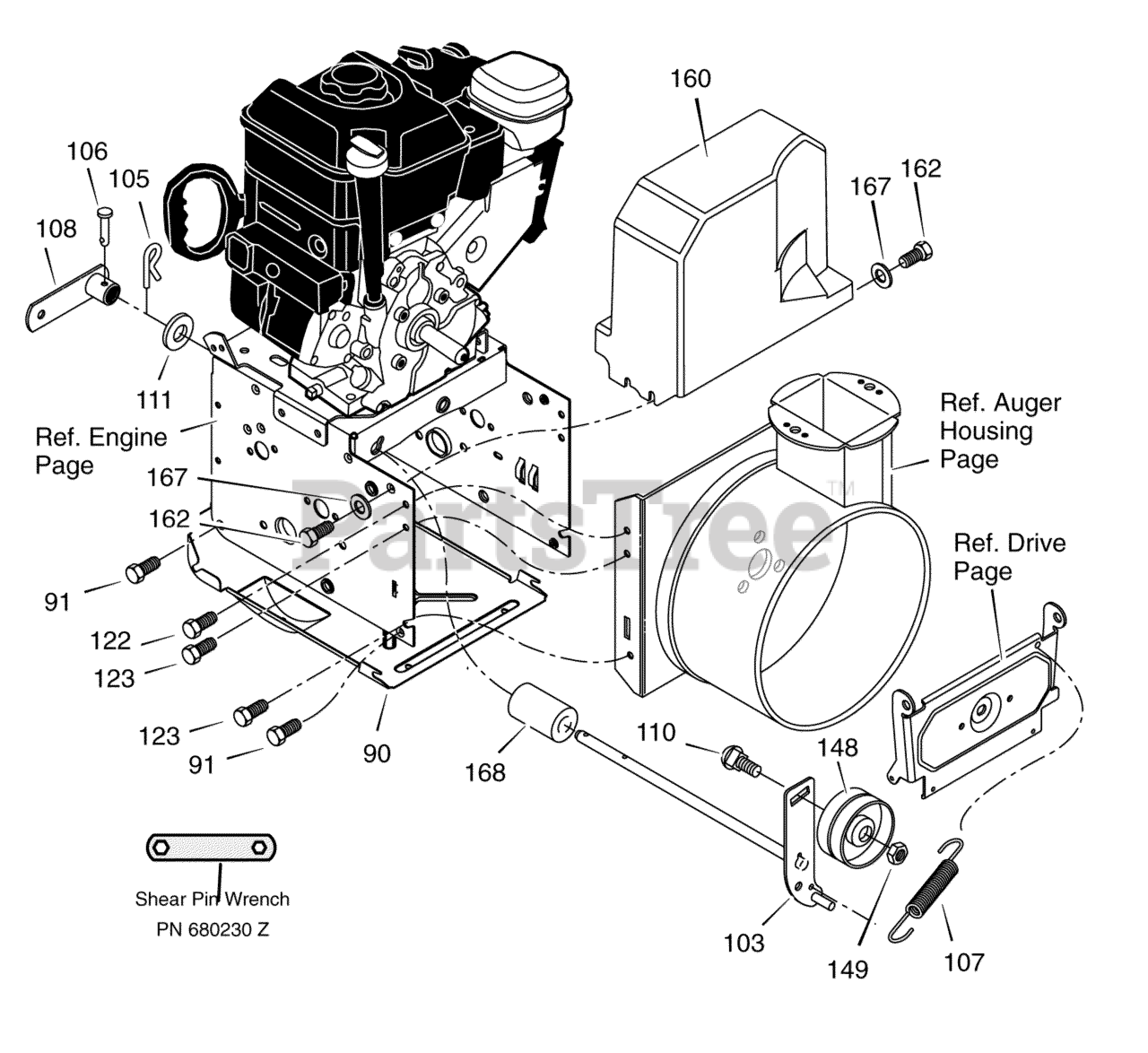

Frame Parts Diagram

  • Title

90

Murray 1501055E701

COVER, BOTTOM

$35.99

$

In Stock, only 1 left!

0

91

Murray 310169

SCREW
(Superseded to 310169MA)

$4.49

$

In Stock, only 1 left!

0

103

Murray 1501111 YZ

IDLER, AUGER

$

$

Not available

105

Murray 711682

PIN, HAIR

$7.49

$

In Stock, only 1 left!

0

106

Murray 761761

PIN, CLEVIS
(Superseded to 761761MA)

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X160

SPRING, TENSION

$

$

Not available

108

Murray 761675 YZ

SPRING ATTACH

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781

BOLT, CARRIAGE
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, only 2 left!

0

122

Murray 25X021

SCREW, TAP
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

123

Murray 25X020

SCREW, TAP
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

148

Murray 50793

PULLEY, IDLER

$21.99

$

In Stock, only 1 left!

0

149

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

160

Murray 1501053

COVER, BELT

$69.99

$

Usually ships in 2-12 days

0

162

Murray 26X306

SCREW, TAP
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

167

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

168

Murray 1501200

SPACER
(Superseded to 1501200MA)

$5.99

$

Usually ships in 2-12 days

0
