536.881800 - Craftsman 27" Snow Thrower (2004) (Sears) Engine Parts Diagram

27" Snow Thrower

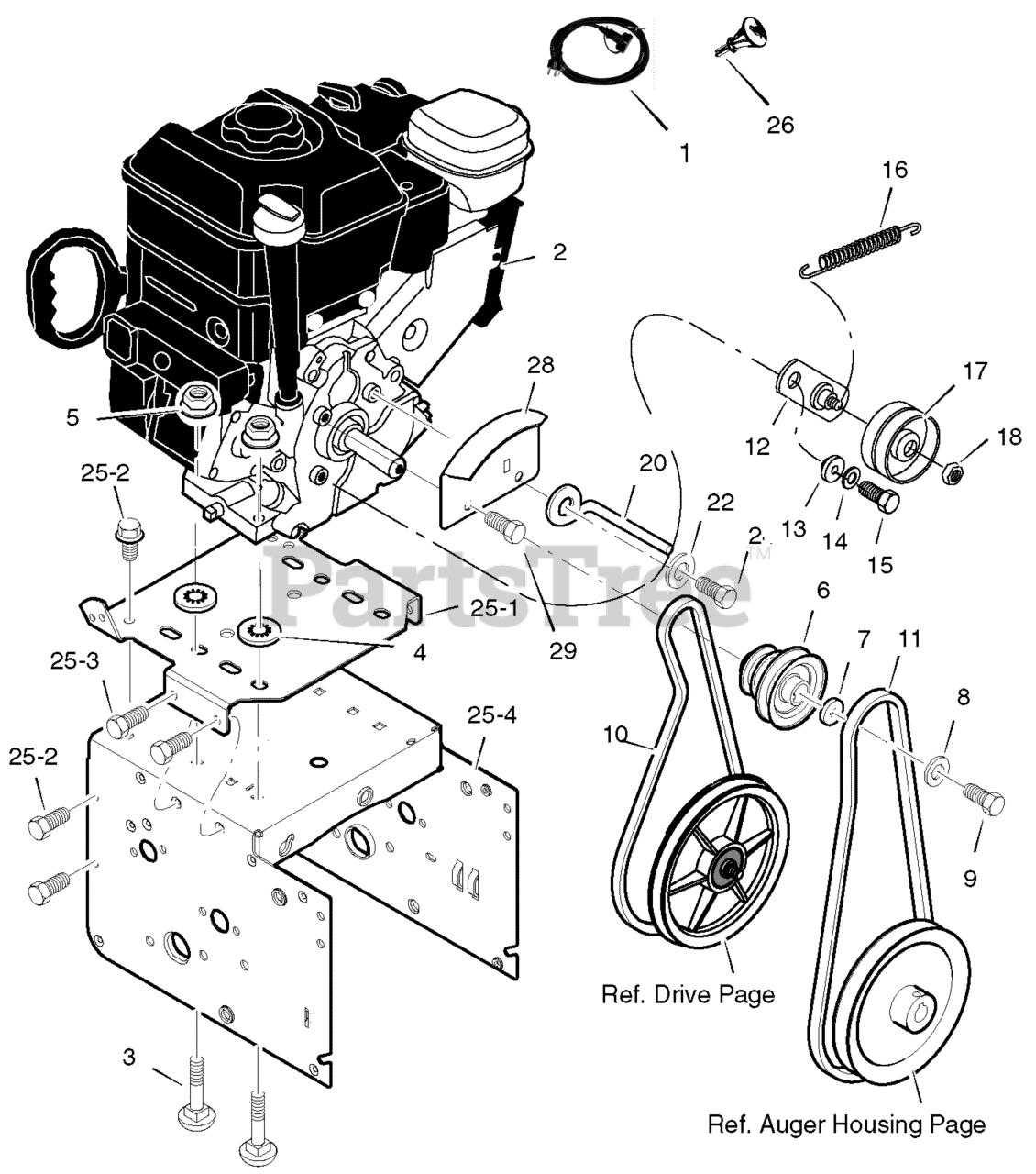

Engine Parts Diagram

  • Title

1

Murray 6219

CORD, ELECTRIC
(Superseded to 6219MA)

$40.99

$

In Stock, only 3 left!

0

2

ENGINE

$

$

Not available

3

Murray 002X97

BOLT, CARRIAGE
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

4

Murray 028X76

RETAINER, PUSH
(Superseded to 028X76MA)

$4.49

$

In Stock, only 1 left!

0

5

Murray 710026

NUT

$

$

Not available

6

Murray 1501109

PULLEY, ENGINE
(Superseded to 1501109MA)

$41.99

$

In Stock, Qty 6

0

7

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

8

Murray 71063

WASHER

$3.99

$

Usually ships in 2-12 days

0

9

Murray 71015

SCREW

$

$

Not available

10

Murray 579932

BELT, DRIVE V 3L
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

11

Murray 585416

BELT, AUGER V 4L
(Superseded to 585416MA)

$22.99

$

In Stock, Qty 12

0

12

Murray 1501112 YZ

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

13

Murray 1501065

BUSHING, IDLER BRACKET
(Superseded to 1501065MA)

$5.49

$

In Stock, Qty 6

0

14

Murray 71060

WASHER, SPLIT
(Superseded to 1501670MA)

$

$

Not available

15

Murray 710097

SCREW 5/16-24 X 0.75

$10.99

$

In Stock, only 1 left!

0

16

Murray 53704

SPRING, IDLER TRACTION DRIVE
(Superseded to 53704MA)

$8.49

$

In Stock, only 4 left!

0

17

Murray 50793

PULLEY, IDLER

$21.99

$

In Stock, only 1 left!

0

18

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

20

Murray 1501201

GUIDE, ROD BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 6

0

22

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

24

Murray 710097

SCREW

$10.99

$

In Stock, only 1 left!

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1501062E201

PLATE, ENGINE

$61.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169

SCREW
(Superseded to 310169MA)

$4.49

$

In Stock, only 1 left!

0

25-3

Murray 25X020

SCREW
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1501050E201

MOTOR BOX

$202.99

$

Usually ships in 2-12 days

0

26

Murray 1501214

KEY, ENGINE

$

$

Not available

28

Murray 1501999

BRACKET, ENGINE SHIELD

$5.49

$

Usually ships in 2-12 days

0

29

Murray 06X117

SCREW

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-0410108L

MANUAL

$

$

Currently unavailable
