536.881950 - Craftsman 29" Snow Thrower (2005) (Sears) Discharge Chute Parts Diagram

29" Snow Thrower

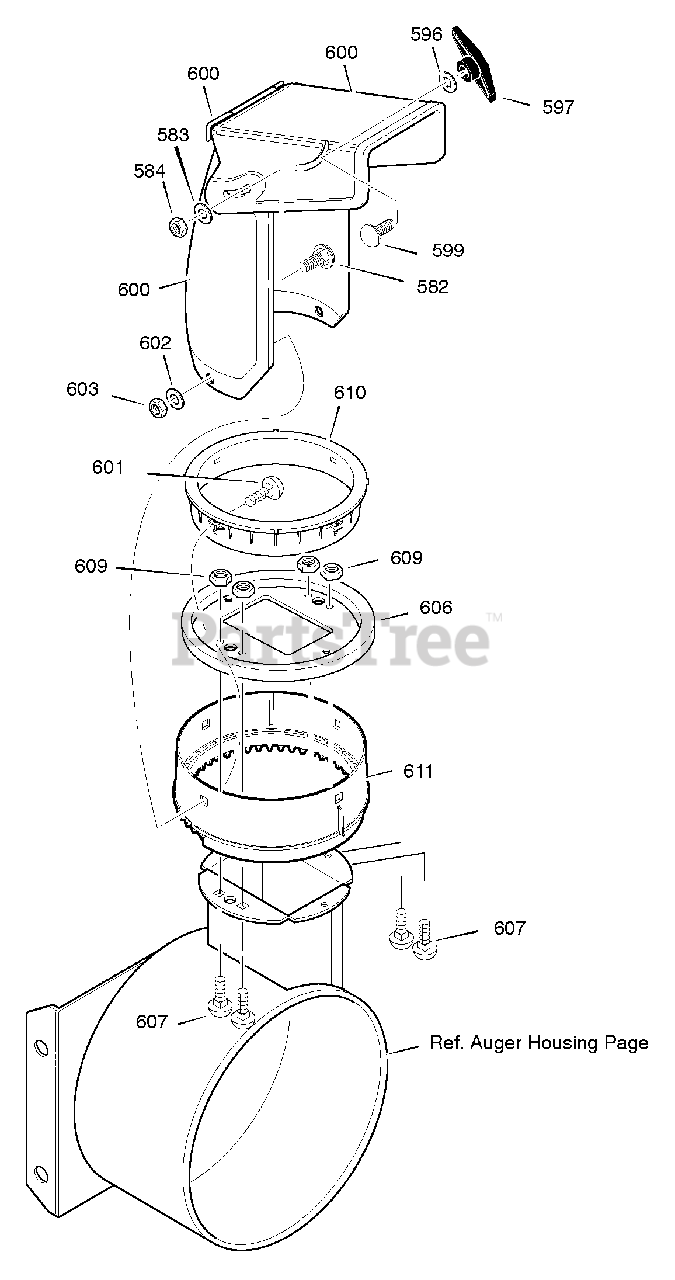

Discharge Chute Parts Diagram

  • Title
582

Murray 02X100

BOLT, 5/16-18 X 1.00 CARG.

$

$

Not available

583

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

584

Murray 71038

NUT, 5/16-18 NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

596

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

597

Murray 1501260MA

KNOB, WING 3.00

$7.99

$

In Stock, only 3 left!

0

599

Murray 002X97MA

BOLT, 5/16-18X1.125
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

600

Murray 762222MA

CHUTE ASSEMBLY

$51.99

$

In Stock, Qty 20+

0

601

$

$

Not available

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

603

Murray 71038

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

606

Murray 1501932 YZ

CHUTE COLLAR
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

SCREW, 1/4-20 X .75
(Superseded to 703440)

$3.99

$

In Stock, Qty 9

0

609

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER RING INNER

$17.99

$

In Stock, only 2 left!

0

611

Murray 1501282MA

RETAINER RING OUTER

$26.99

$

In Stock, Qty 6

0
