536.886180 (1696146) - Craftsman 27" Snow Thrower (2011) (Sears) Auger Drive Group Parts Diagram

27" Snow Thrower

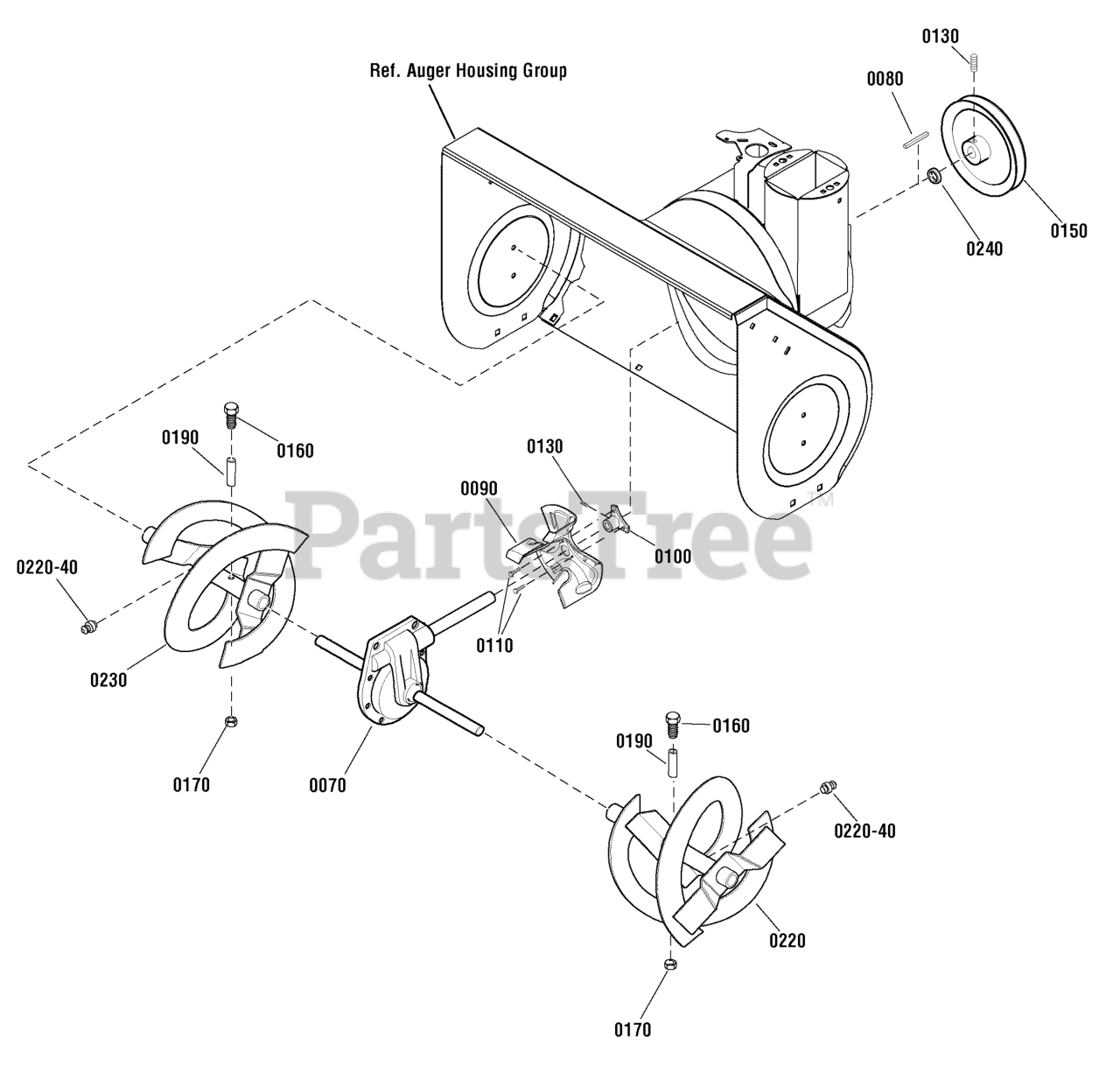

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1753073YP

GEAR CASE ASSEMBLY, 27"

$483.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.99

$

In Stock, Qty 11

0

0090

Murray 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$91.99

$

In Stock, only 2 left!

0

0100

Murray 1739073YP

HUB, Impeller

$24.99

$

In Stock, only 2 left!

0

0110

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

0130

Murray 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

$10.99

$

Usually ships in 2-12 days

0

0150

Murray 1501211MA

PULLEY

$76.99

$

In Stock, only 2 left!

0

0160

Murray 9524MA

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G2
(Superseded to 703057)

$6.49

$

In Stock, only 3 left!

0

0170

Murray 73826MA

NUT, Hex Center Lock, 1/4-20
(Superseded to 703251)

$5.49

$

In Stock, Qty 12

0

0190

Murray 3943MA

SPACER, 1/4 x 1/2
(Superseded to 703058)

$7.49

$

In Stock, only 2 left!

0

0220

Murray 1740736AYP

AUGER, LH, 27"

Note: (Included Ref No. 0220-40)

$

$

Not available

0230

Murray 1740737AYP

AUGER, RH, 27"

Note: (Included Ref No. 0220-40)

$187.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

Note: (Incl. Ref. Nos. 0220 & 0230)

$5.49

$

In Stock, Qty 20+

0

0240

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 6

0
