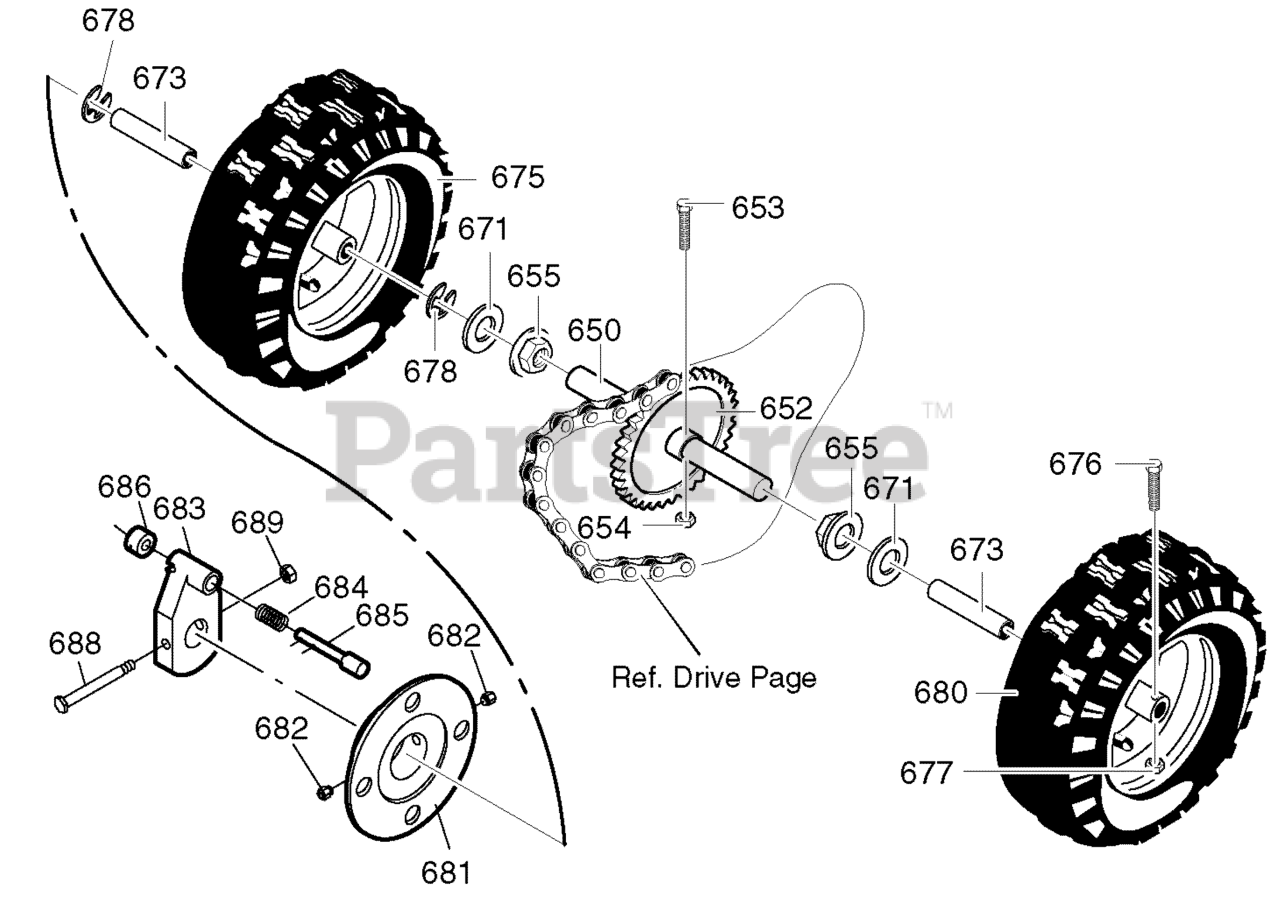

536.888110 - Craftsman 30" Snow Thrower (2004) (Sears) Wheel Assembly Parts Diagram

30" Snow Thrower

Wheel Assembly Parts Diagram

  • Title

650

Murray 1501563

YZ SHAFT, AXLE
(Superseded to 1501563YZMA)

$69.99

$

In Stock, only 1 left!

0

652

Murray 1501089

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, only 1 left!

0

653

Murray 01X193

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 9

0

654

Murray 15X145

NUT, 1/4-20 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

655

Murray 1501114

BEARING, AXLE
(Superseded to 1501114MA)

$11.99

$

In Stock, only 2 left!

0

671

Murray 712120

FLATWASHER

$142.99

$

Usually ships in 2-12 days

0

673

Murray 1501138

BUSHING, WHEEL
(Superseded to 1501138MA)

$

$

Not available

675

Murray 1501810

TIRE & RIM, RIGHT

$204.99

$

Usually ships in 2-12 days

0

676

Murray 577015

SCREW, 1/4-20X1.75
(Superseded to 1687475YP)

$99.99

$

Usually ships in 2-12 days

0

677

Murray 15X145

NUT, 1/4-20 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

678

Murray 239

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray 1501811

TIRE & RIM, LEFT

$159.99

$

Usually ships in 2-12 days

0

681

Murray 1501032

DISC,WHEEL

$

$

Currently unavailable

682

Murray 2001066

SCREW
(Superseded to 2001066MA)

$5.49

$

In Stock, only 2 left!

0

683

Murray 1501857

HUB, WHEEL LOCK
(Superseded to 1501857MA)

$34.99

$

In Stock, only 3 left!

0

684

Murray 164X34

SPRING, COMPRESSION
(Superseded to 164X34MA)

$5.99

$

In Stock, only 2 left!

0

685

Murray 1501856

YZ PIN, LOCK

$

$

Currently unavailable

686

Murray 1501855

KNOB
(Superseded to 1501855MA)

$13.99

$

In Stock, only 1 left!

0

688

Murray 73839

SCREW
(Superseded to 73839MA)

$5.49

$

In Stock, Qty 9

0

689

Murray 15X116

NUT

$4.49

$

In Stock, Qty 20+

0
