536.889252 - Craftsman 33" Snow Thrower (2004) (Sears) Frame Parts Diagram

33" Snow Thrower

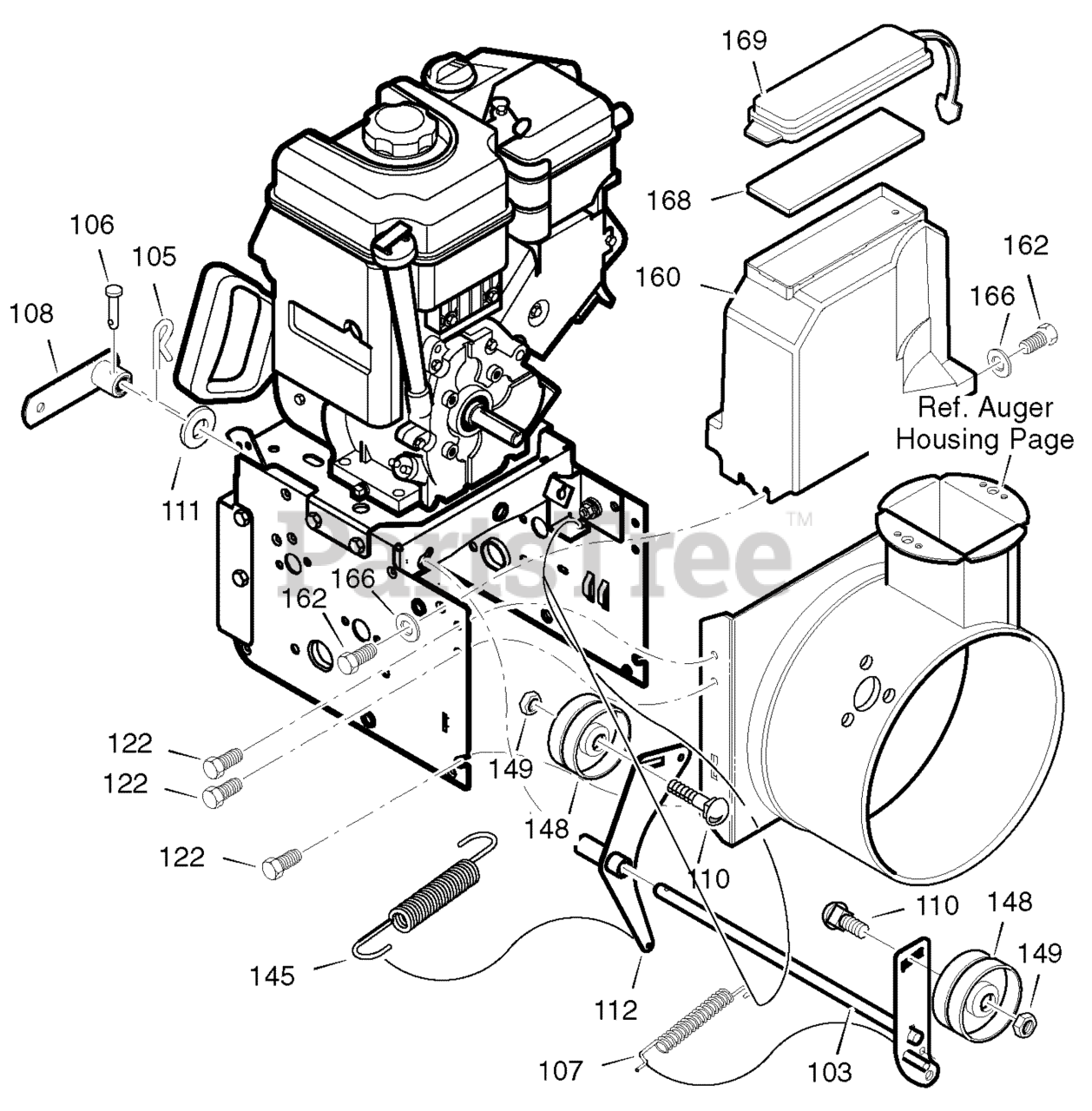

Frame Parts Diagram

  • Title

103

Murray 1501782

YZ ASSY, AUGER IDLER

$

$

Currently unavailable

105

Murray 711682

PIN, HAIR

$7.49

$

In Stock, only 1 left!

0

106

Murray 761761

PIN, CLEVIS 3/16" DIA
(Superseded to 761761MA)

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X159

SPRING, TENSION
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 10

0

108

Murray 761675

YZ SPRING ATTACHMENT

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781

BOLT, 3/8-16X1.25
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, only 1 left!

0

112

Murray 1501370

YZ BRACKET, IDLER

$

$

Currently unavailable

122

Murray 25X020

SCREW, 5/16-18 X .50
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

145

Murray 165X155

SPRING, CLUTCH
(Superseded to 165X155MA)

$6.49

$

In Stock, only 1 left!

0

148

Murray 50793

PULLEY, IDLER

$21.99

$

In Stock, only 1 left!

0

149

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

160

Murray 1501052

COVER, BELT

$60.99

$

Usually ships in 2-12 days

0

162

Murray 26X306

SCREW, 1/4-20 X .63
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

166

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

168

Murray 761187

PAD, FOAM

$6.49

$

In Stock, only 1 left!

0

169

Murray 760539

LID

$10.99

$

In Stock, only 1 left!

0
