536.889253 - Craftsman 33" Snow Thrower (2004) (Sears) Handle Assembly Parts Diagram

33" Snow Thrower

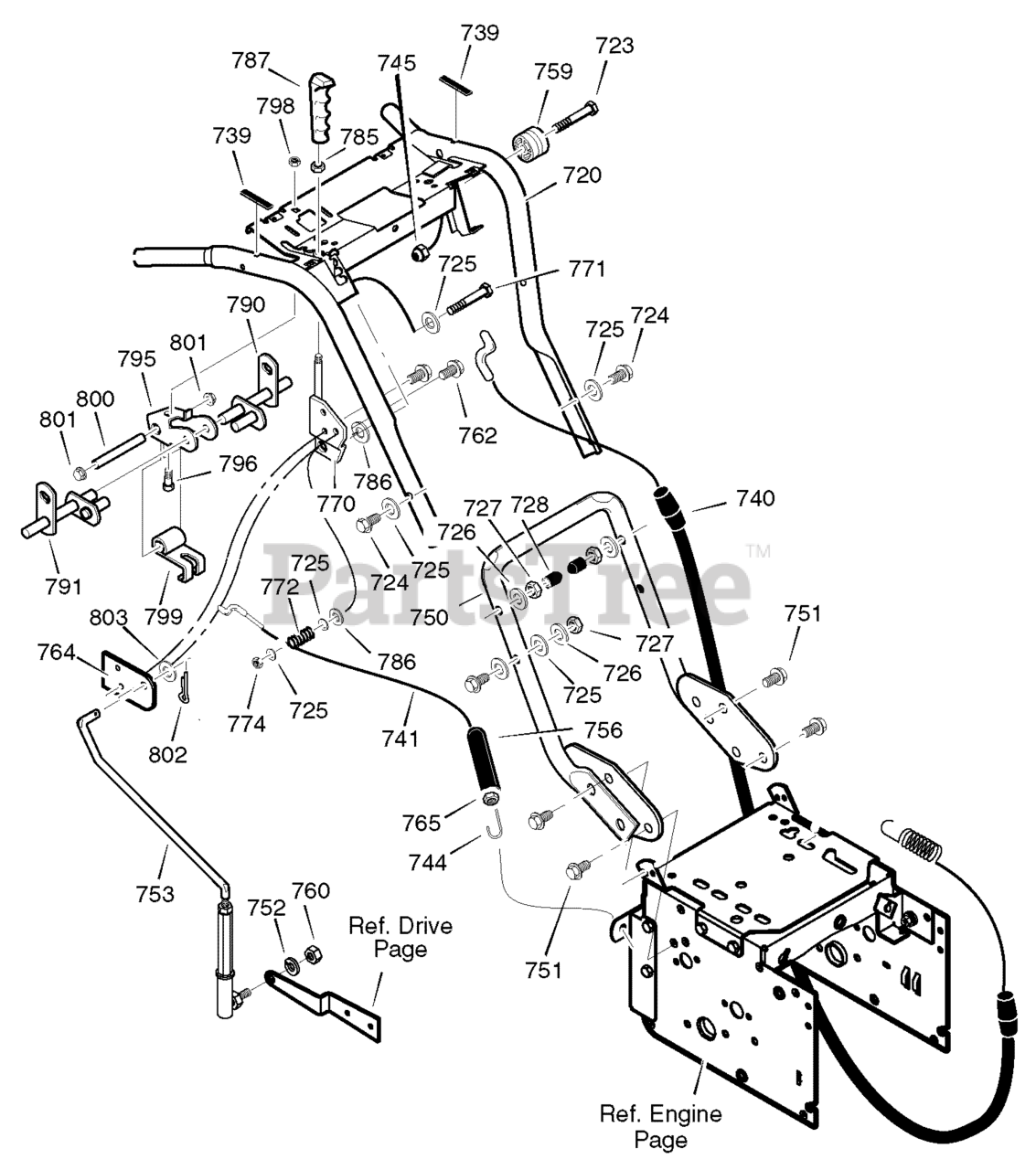

Handle Assembly Parts Diagram

  • Title

720

Murray 1501381E701

ASSY., HANDLE

$

$

Not available

723

Murray 01X129

BOLT

$3.49

$

Usually ships in 2-12 days

0

724

Murray 7288

SCREW

$4.49

$

Usually ships in 2-12 days

0

725

Murray 71072

WASHER, FLAT

$

$

Not available

726

Murray 71062

WASHER

$

$

Not available

727

Murray 71044

NUT

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

739

Murray 4049

BUMPER
(Superseded to 4049MA)

$

$

Not available

740

Murray 1501363

CABLE, DRIVE

$39.99

$

Usually ships in 2-12 days

0

741

Murray 1501451

CABLE, AUGER
(Superseded to 1501451MA)

$20.99

$

In Stock, only 1 left!

0

744

Murray 1673

SPRING, CLUTCH
(Superseded to 1673MA)

$8.99

$

In Stock, Qty 19

0

745

Murray 15X116

NUT, HEX

$4.49

$

In Stock, Qty 20+

0

750

Murray 1501449E701

HANDLE, LOWER

$110.99

$

Usually ships in 2-12 days

0

751

Murray 25X021

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

752

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

753

Murray 1501465

ASSEMBLY, ROD

$122.99

$

Usually ships in 2-12 days

0

756

Murray 308146

BOOT, CABLE
(Superseded to 308146MA)

$6.49

$

In Stock, only 1 left!

0

759

Murray 579860

SPOOL, CABLE
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0

760

Murray 71042

NUT, 5/16-24

$4.49

$

Usually ships in 2-12 days

0

762

Murray 310169

SCREW 1/4-20x0.63
(Superseded to 310169MA)

$4.49

$

In Stock, only 1 left!

0

764

Murray 1501367 YZ

BRKT, CONTROL

$

$

Currently unavailable

765

Murray 15X145

NUT, 1/4-20

$4.49

$

In Stock, Qty 20+

0

770

Murray 1501375 YZ

BRACKET, SHIFT
(Superseded to 1501375YZMA)

$10.99

$

Usually ships in 2-12 days

0

771

Murray 1X157YZ

SCREW

$3.49

$

Usually ships in 2-12 days

0

772

Murray 164X30

SPRING
(Superseded to 164X30MA)

$15.99

$

Usually ships in 2-12 days

0

774

Murray 71046

NUT, HEX, 3/8-16
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

785

Murray 71045

NUT, HEX, 3/8-16

$

$

Not available

786

Murray 17X217

WASHER

$4.99

$

Usually ships in 2-12 days

0

787

Murray 306689

KNOB, SHIFT
(Superseded to 306689MA)

$14.99

$

In Stock, only 1 left!

0

790

Murray 578926E701

ROD, ASSY LH

$80.99

$

Usually ships in 2-12 days

0

791

Murray 578924E701

ROD, ASSY RH

$75.99

$

In Stock, only 1 left!

0

795

Murray 579002

BRACKET, CAM

$

$

Currently unavailable

796

Murray 002X53

SCREW
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

798

Murray 71038

NUT, NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 9

0

799

Murray 8417

CAM LOCK

$34.99

$

In Stock, only 1 left!

0

800

Murray 584673

PIN, SPRING PIVOT

$18.99

$

Usually ships in 2-12 days

0

801

Murray 73664

NUT, PUSH ON
(Superseded to 73664MA)

$4.99

$

In Stock, only 3 left!

0

802

Murray 71081

PIN, COTTER

$

$

Not available

803

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0
