536.889253 - Craftsman 33" Snow Thrower (2004) (Sears) Remote Chute Control Parts Diagram

33" Snow Thrower

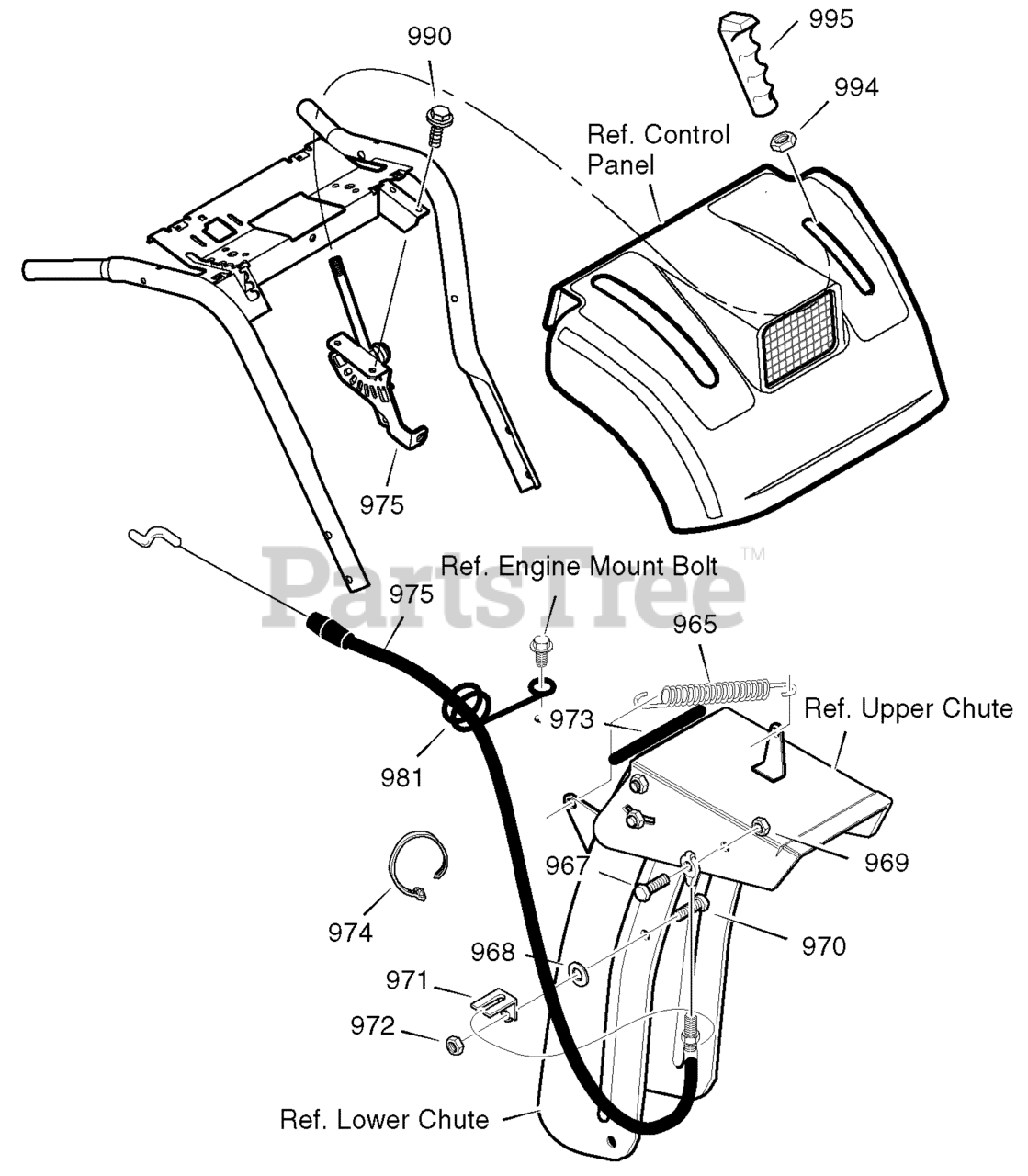

Remote Chute Control Parts Diagram

  • Title

965

Murray 318468

SPRING, RETURN
(Superseded to 318468MA)

$8.49

$

Usually ships in 2-12 days

0

967

Murray 310088

BOLT, 5/16-18
(Superseded to 310088MA)

$4.99

$

Usually ships in 2-12 days

0

968

Murray 73787

WASHER, FLAT

$6.99

$

Usually ships in 2-12 days

0

969

Murray 15X143

NUT, 5/16-18
(Superseded to 7001278MA)

$4.49

$

In Stock, only 1 left!

0

970

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

971

Murray 306447 YZ

BRACKET, CABLE

$15.99

$

Usually ships in 2-12 days

0

972

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

973

Murray 1001221

TRIM

$5.99

$

Usually ships in 2-12 days

0

974

Murray 71372

TIE, CABLE

$4.49

$

In Stock, only 1 left!

0

975

Murray 1501393

CABLE, CONTROL

$

$

Not available

981

Murray 780220

WIRE FORM
(Superseded to 780220MA)

$6.99

$

Usually ships in 2-12 days

0

990

Murray 760858

SCREW, 3/8-16 X 1.75

$

$

Not available

994

Murray 71045

NUT, 3/8-16 HEX JAM

$

$

Not available

995

Murray 306689

HANDLE
(Superseded to 306689MA)

$14.99

$

In Stock, only 1 left!

0
