536 Li HE 3 - Husqvarna Hedge Trimmer (2016-09) GEAR HOUSING Parts Diagram

Hedge Trimmer

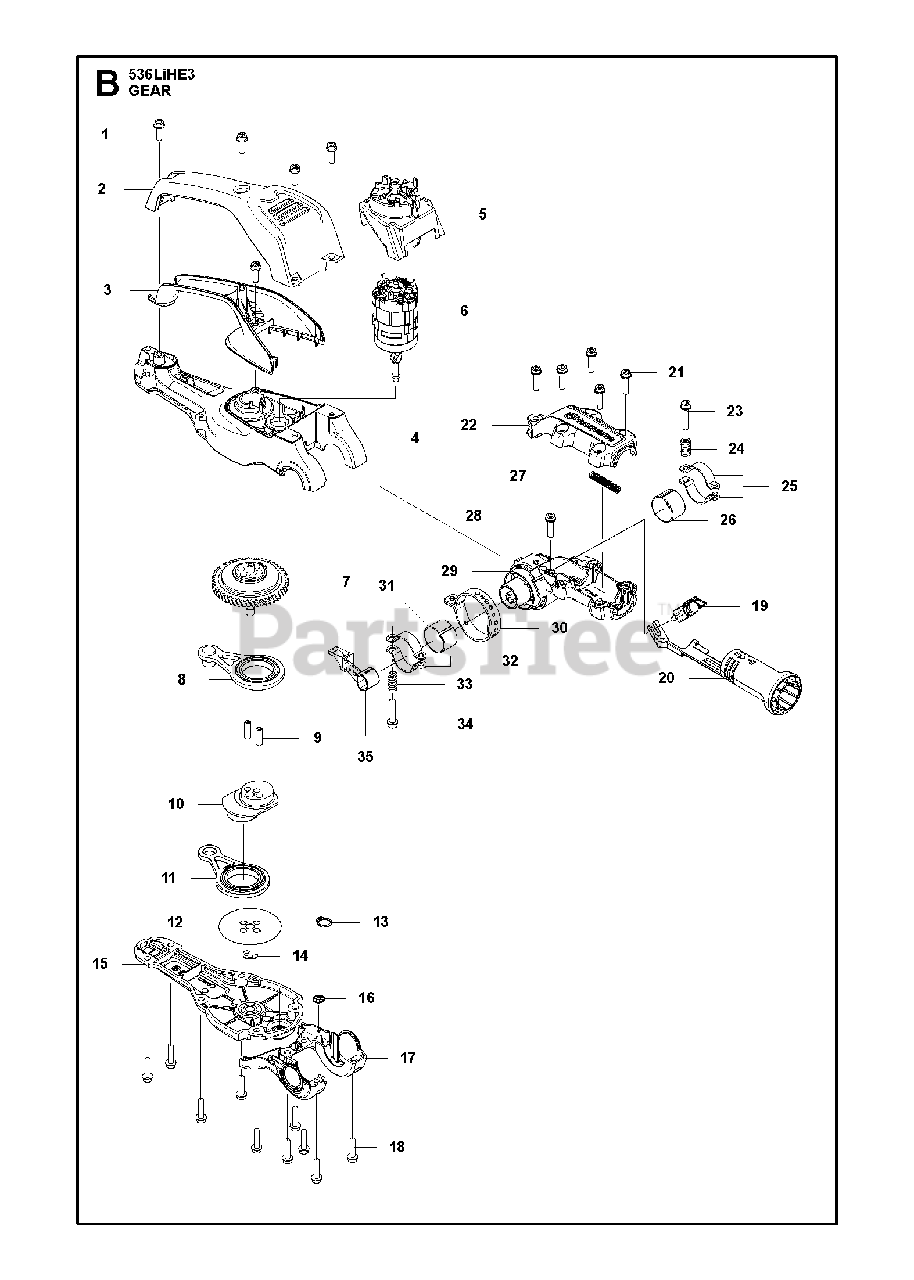

GEAR HOUSING Parts Diagram

  • Title

1

Husqvarna 503217572

Screw, Ihscft

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 588224801

MOTOR COVER UPPER

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 588224901

MOTOR COVER LOWER

$20.99

$

Usually ships in 3-10 days

0

4

Husqvarna 588564401

$

$

Currently unavailable

5

Husqvarna 582341401

AIR CONDUCTOR MOTOR
(Superseded to 582341402)

$20.99

$

In Stock, only 1 left!

0

6

Husqvarna 588225801

MOTOR ASSY

$

$

Not available

7

Husqvarna 588223801

GEAR ASSY

$145.99

$

Usually ships in 3-10 days

0

8

Husqvarna 577829302

CONNECTING ROD ASSY
(Superseded to 582363101)

$72.99

$

Usually ships in 3-10 days

0

9

Husqvarna 578002701

HEAVY DUTY DOWEL PIN PROJEKT 1

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 501707101

ECCENTRIC DISC GEAR

$48.99

$

Usually ships in 3-10 days

0

11

Husqvarna 577829302

CONNECTING ROD ASSY
(Superseded to 582363101)

$72.99

$

Usually ships in 3-10 days

0

12

Husqvarna 522714601

WASHER DISK DISC

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 735311400

SEEGER CLIP

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 578054901

LOCK WASHER

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 588570001

COVER LID GEAR HOUSING ASSY

$

$

Not available

16

Husqvarna 735583000

LOCK WASHER

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 588217901

BEARING CAP

$31.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503216872

SCREW IHSCFT

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 588215901

LOCKING PIN ASSY

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 588215001

Handle Grip

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503216872

SCREW IHSCFT

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 588215401

LID JOINT

$45.99

$

Usually ships in 3-10 days

0

23

Husqvarna 503200325

SCREW

$7.49

$

In Stock, only 1 left!

0

24

Husqvarna 588217801

BRAKE BAND
(Superseded to 588474901)

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 588474901

BRAKE BAND ASSY POLE HEDGETRIM

$22.99

$

Usually ships in 3-10 days

0

26

Husqvarna 588217501

SLIDE RING

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 582537101

COMPRESSION SPRING

$

$

Not available

28

Husqvarna 503216872

SCREW IHSCFT

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 588215501

HOUSING JOINT

$68.99

$

Usually ships in 3-10 days

0

30

Husqvarna 588216301

RING INDEX

$

$

Not available

31

Husqvarna 588217501

SLIDE RING

$14.99

$

Usually ships in 3-10 days

0

32

Husqvarna 588474901

BRAKE BAND ASSY POLE HEDGETRIM

$22.99

$

Usually ships in 3-10 days

0

33

Husqvarna 588217801

BRAKE BAND
(Superseded to 588474901)

$22.99

$

Usually ships in 3-10 days

0

34

Husqvarna 503200325

SCREW

$7.49

$

In Stock, only 1 left!

0

35

Husqvarna 588219201
