30" Sickle Bar

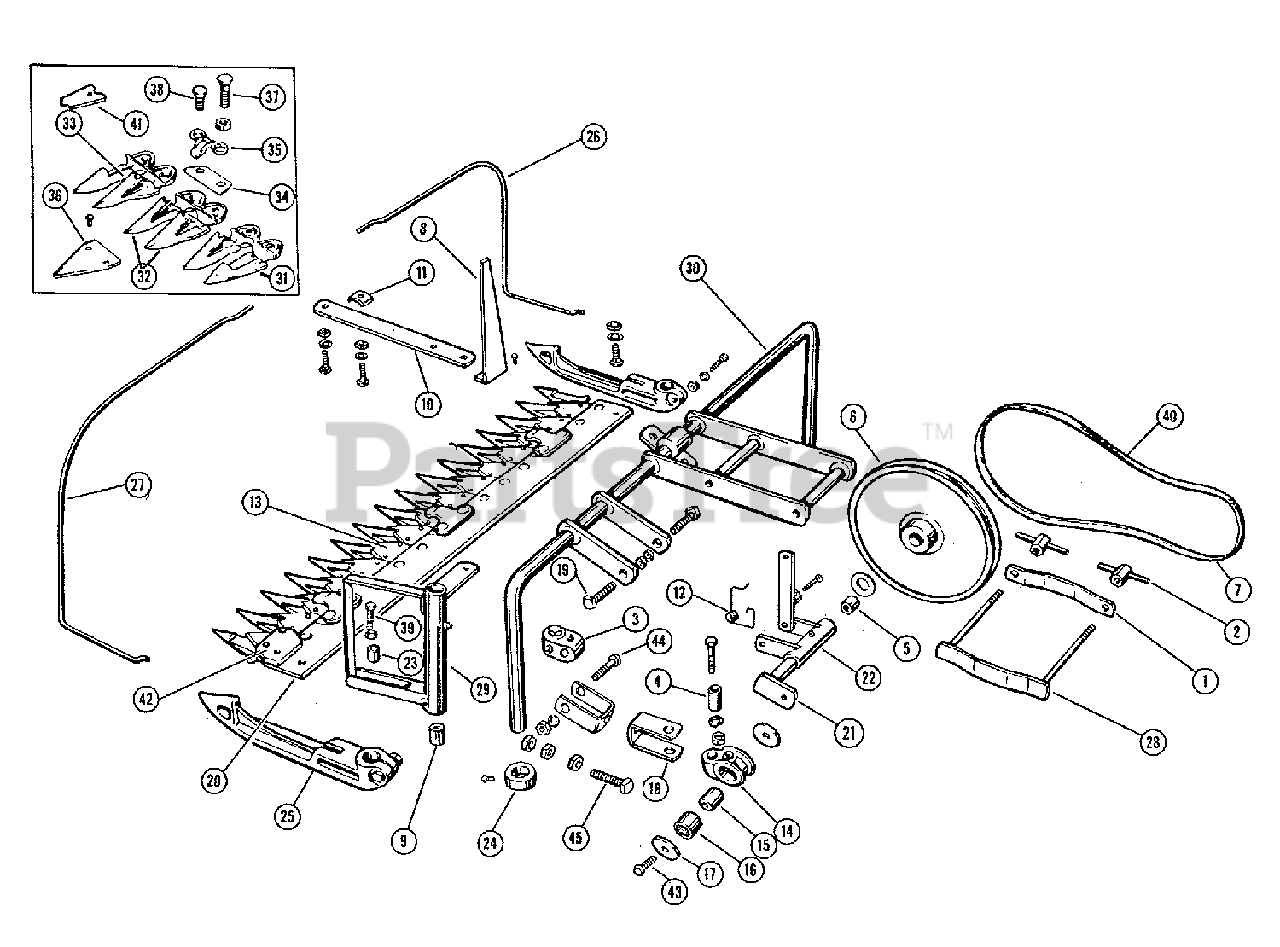

30" Sickle Bar (3697I07) Parts Diagram

  • Title

1

Simplicity 8161029

SIDE PLATE, Hitch

$

$

Not available

2

Simplicity 8161041

T-NUT, Complete

$0.99

$

Usually ships in 2-12 days

0

3

Simplicity 8161052

PIVOT BLOCK

$

$

Not available

4

Snapper 1729273SM

BEARING, Pivot Block

$76.99

$

In Stock, only 1 left!

0

5

Simplicity 8191044

BUSHING, Bearing Bracket

$

$

Not available

6

Snapper 1729273SM

SHEAVE

$76.99

$

In Stock, only 1 left!

0

7

Simplicity 1608954SM

BELT, 33", 2 H.P. only

$14.99

$

Usually ships in 2-12 days

0

8

Simplicity 8161018

WHIPPER

$

$

Not available

9

Simplicity 1667099SM

BUSHING, Sickle Crank

$26.99

$

Usually ships in 2-12 days

0

10

Simplicity 8161181

BRACKET, Grass Finger

$

$

Not available

11

Simplicity 8161182

CLAMP, Grass Finger

$

$

Not available

12

Simplicity 8161185

SPRING, Belt Release

$

$

Not available

13

Simplicity 8161188

SICKLE, Complete w/ Head

$

$

Not available

14

Simplicity 8161192

BEARING HOUSING, Pitman

$

$

Not available

15

Simplicity 8161197

BEARING, Inner Race, Pitman

$

$

Not available

16

Simplicity 2157678SM

BEARING, Needle, Pitman

$34.99

$

Usually ships in 2-12 days

0

17

Simplicity 1924356SM

BEARING, Washer, Pitman
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0

18

Simplicity 8161203

CLEVES, Pitman

$

$

Not available

19

Simplicity 8161209

CAP SCREW, Special

$

$

Not available

20

Simplicity 8161189

CUTTER BAR, Slab, 30"

$

$

Not available

21

Simplicity 8161515

CRANKSHAFT ASSEMBLY

$

$

Not available

22

Simplicity 8161519

BRACKET ASSEMBLY, Bearing, w/ Bushings

$

$

Not available

23

Simplicity 1729274SM

BUSHING, Sickle Head

$13.99

$

Usually ships in 2-12 days

0

24

Simplicity 8211005

COLLAR, Set

$

$

Not available

25

Simplicity 8162019

SHOE, Sickle Bar

$

$

Not available

26

Simplicity 8162026

GRASS FINGER, Right

$

$

Not available

27

Simplicity 8162027

GRASS FINGER, Left

$

$

Not available

28

Simplicity 8162501

CLAMP, Hitch

$

$

Not available

29

Simplicity 8162510

SICKLE BELL CRANK, w/ Bearing, Bushing, & Sickle Head Bolt

$

$

Not available

30

Simplicity 8162508

FRAME, Sickle Bar

$

$

Not available

31

Simplicity 8161131

GUARD, Left End

$

$

Not available

32

Simplicity 8161135

GUARD, Twin

$

$

Not available

33

Simplicity 8161138

GUARD, Right End

$

$

Not available

34

Simplicity 8161136

PLATE, Wear

$

$

Not available

35

Simplicity 8161137

CLIP, Sickle

$

$

Not available

36

Simplicity 101004

SICKLE SECTIONS

$

$

Not available

37

Simplicity 8161133

GUARD BOLT, Long

$

$

Not available

38

Simplicity 8161134

GUARD BOLT, Short

$

$

Not available

39

BOLT, Sickle Head, 3/8-24 x 1-1/2

$

$

Not available

40

BELT, 37", 3 HP Only

$

$

Not available

41

Simplicity 8161191

PLATES, Ledger

$

$

Not available

42

SICKLE, Head Only

$

$

Not available

43

BOLT, Crank Pin, 3/8-24 x 2

$

$

Not available

44

BOLT, Pivot Block, 3/8-16 x 1-3/4

$

$

Not available

45

BOLT, Pitman Machine, 7/16-14 x 1-1/2

$

$

Not available
