539104755-01 - Husqvarna Sulky (2000-03) Riding Sulky Parts Diagram

Sulky

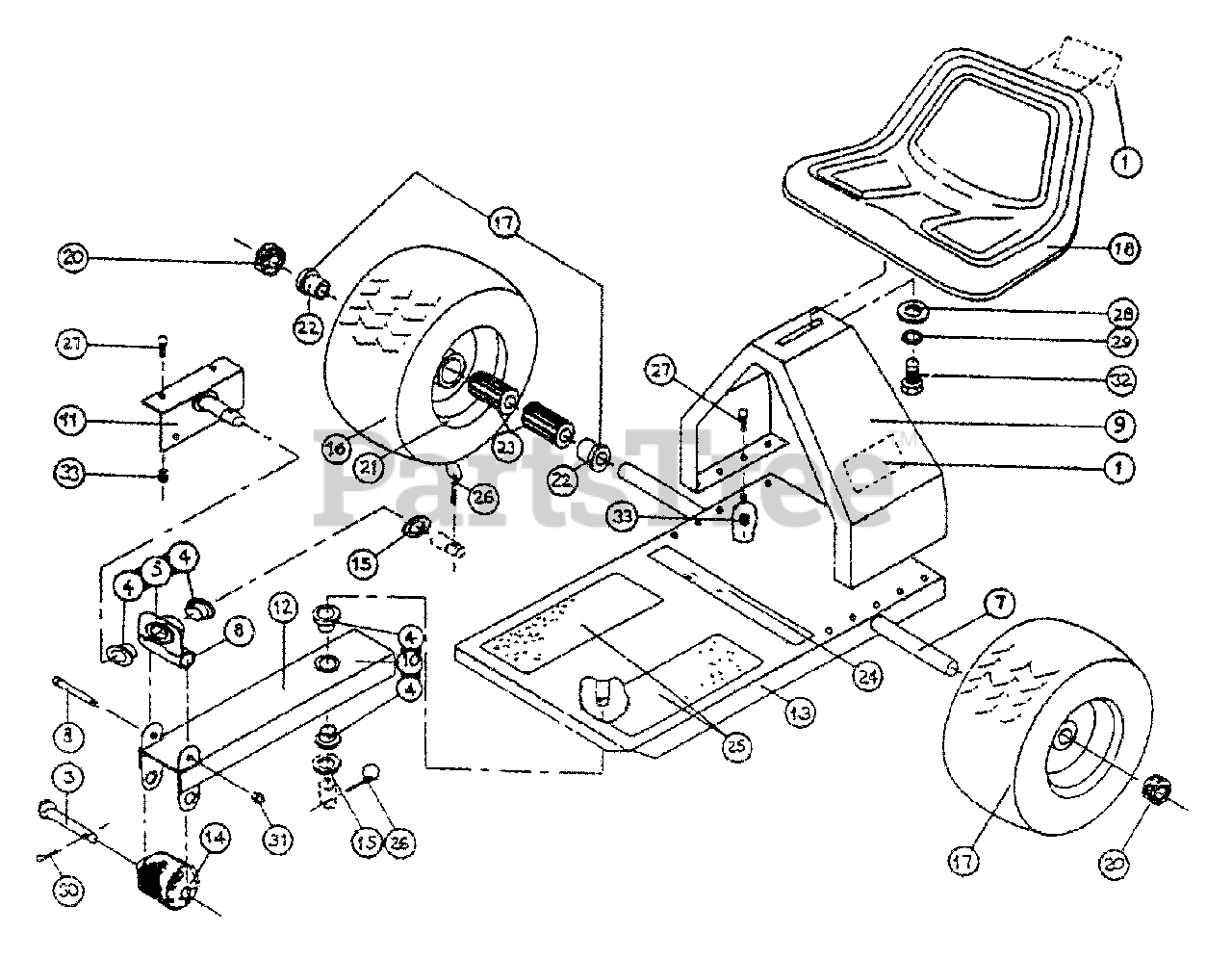

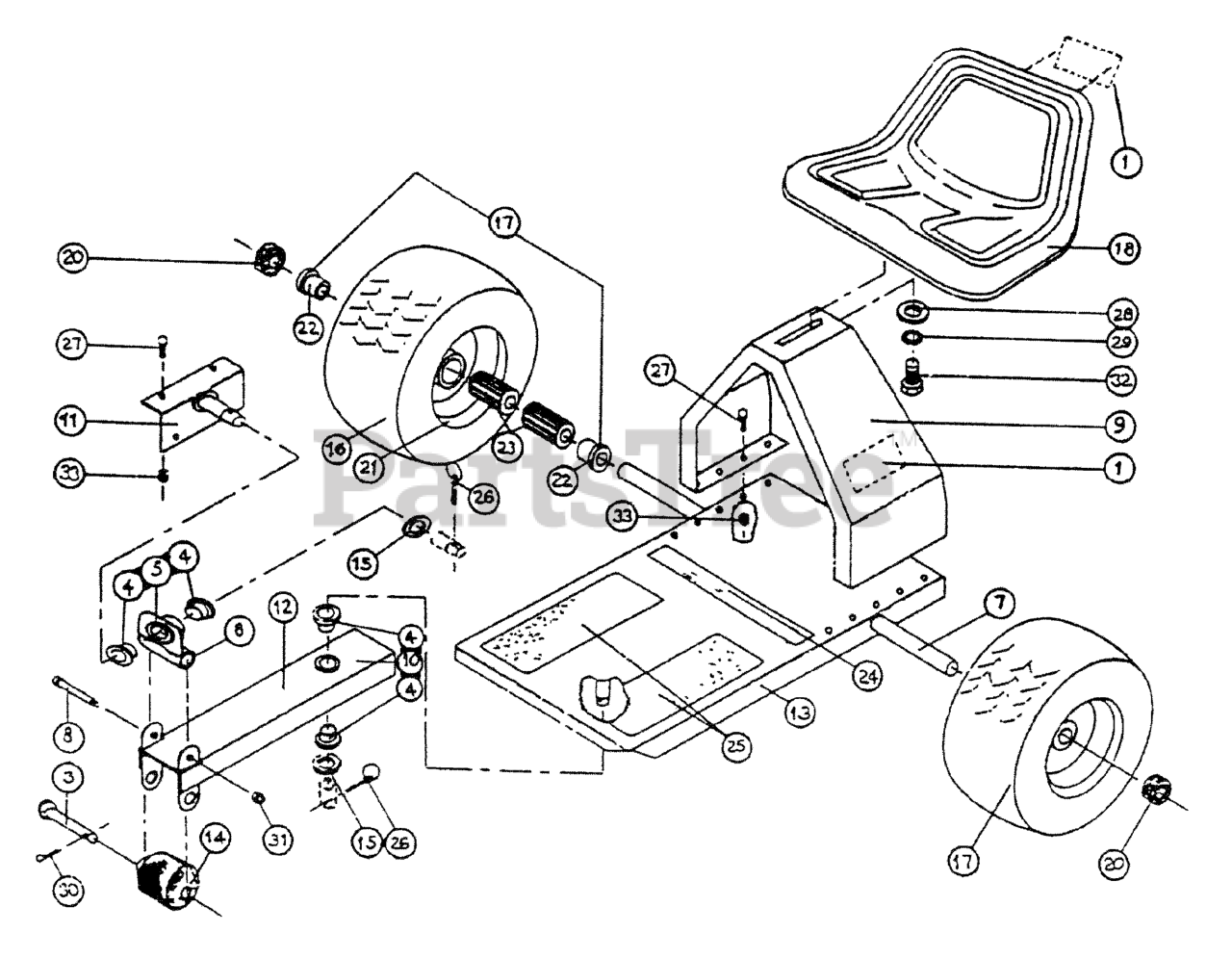

Riding Sulky Parts Diagram

  • Title

1

Husqvarna 539104789

Decal, Crown

$

$

Not available

3

Husqvarna 539102134

Clevis Pin 1/2 x 4

$

$

Not available

4

Husqvarna 539100173

Shoulder Bushing

$1.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539104536

Cross Weldment

$

$

Not available

6

Husqvarna 539104537

Cross Assembly

Note: (Incl. #5 & 4)

$182.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539104538

Axle Weldment

$70.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539100200

Shoulder Bolt 1/2 x 3-1/4

$

$

Not available

9

Husqvarna 539104539

Seat Mounting Weldment

$

$

Not available

10

Husqvarna 539104540

Tongue Weldment
(Superseded to 539104542)

$141.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539104541

Hitch Weldment

$113.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539104542

Tongue Assembly

Note: (Incl. #10 & 4)

$141.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539104543

Deck w/Decal & Pads

Note: (Incl. #24 & 25)

$

$

Not available

14

Husqvarna 539101128

Roller

$

$

Not available

15

Husqvarna 539923787

7/8" Machinery Bushing

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 539923788

Tire, 13 x 6.5
(Superseded to 539104758)

$194.99

$

In Stock, only 1 left!

0

17

Husqvarna 539104616

Tire Assy., Complete

Note: (Incl. #16, 19, 22, & 23)

$103.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976597

Sulky Seat

$207.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976998

Zerk, 1/4-28 Straight
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 539977000

Clamp Collar, 7/8 I.D.

$11.99

$

Usually ships in 3-10 days

0

21

UNKNOWN

$

$

Not available

22

Husqvarna 539977312

Flange Bearing

$

$

Not available

23

Husqvarna 539977313

Roller Bearing

$

$

Not available

24

Husqvarna 539977774

Warning Decal

$

$

Not available

25

Husqvarna 539977778

Abrasive Pad

$6.49

$

In Stock, only 2 left!

0

26

Husqvarna 539977780

Lynch Pin

$1.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990209

5/16-18 x 1 HHCS

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539990250

1/2" Flat Washer

$1.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539990254

1/2" Split Lock Washer

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990297

Cotter Pin 1/8 x 1-1/2

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990546

3/8-16 HN, Center Lock

$

$

Not available

32

Husqvarna 539990646

1/2-13 x 1 HHCS

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990717

5/16-18 HN, Nylon Insert
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
