539105212 - Husqvarna Grass Catcher (2003-02) ACCESSORIES Parts Diagram

Grass Catcher

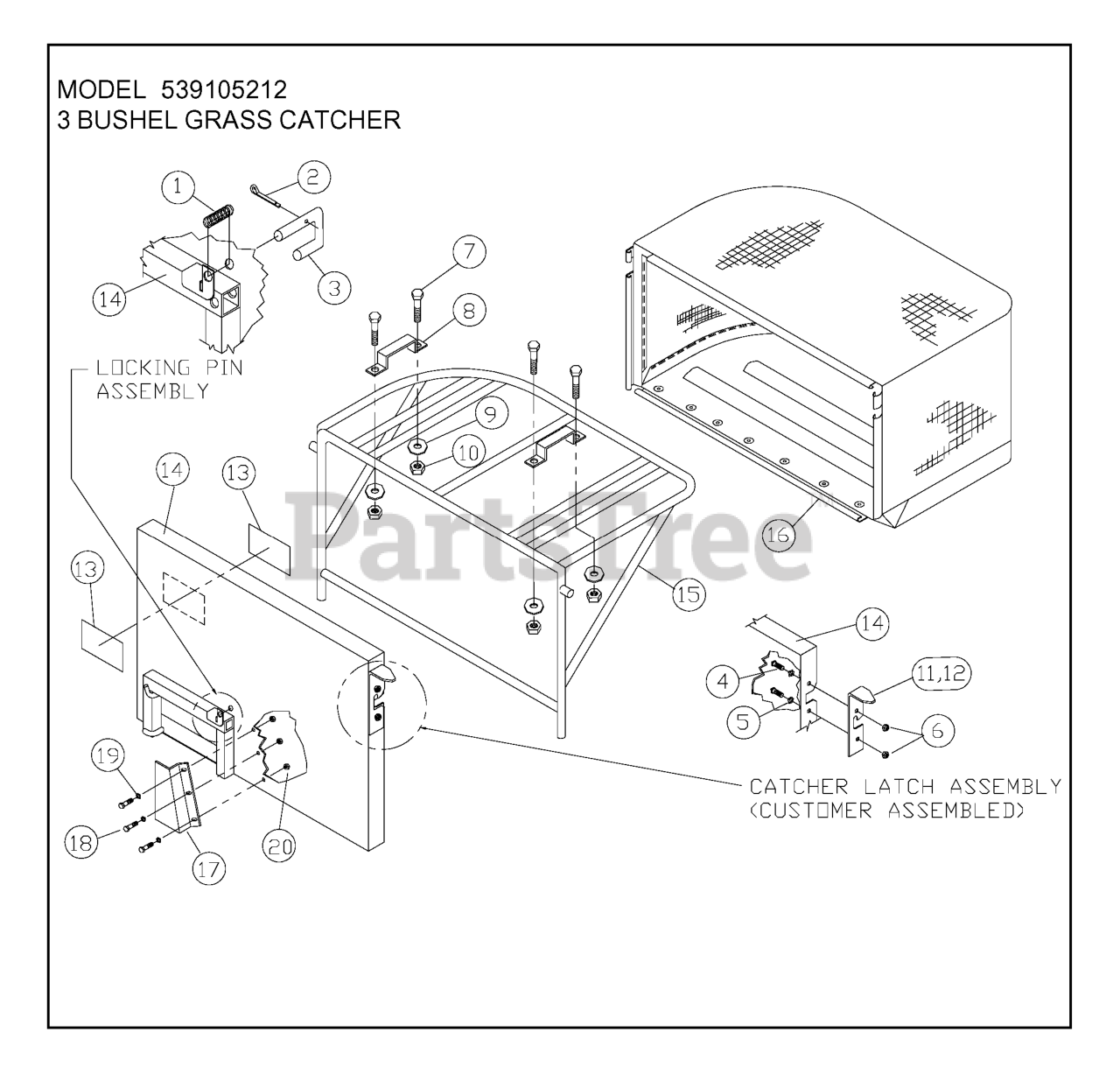

ACCESSORIES Parts Diagram

  • Title

1

Husqvarna 539977856

SPRING, COMPRESSION

$1.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

10

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539100309

BACKPLATE

$236.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976582

CATCHER LATCH, LEFT

$11.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539105309

ADAPTER PLATE

$

$

Not available

15

Husqvarna 539100334

WIRE FRAME 3 BU

$160.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539104545

BAG, 3 BU FABRIC

$

$

Not available

4

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539976581

CATCHER LATCH, RIGHT

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976583

DECAL, WARNING

$

$

Not available

5

Husqvarna 539976983

WASHER, WAVE SPRING

$0.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539976585

HOPPER HANDLE

$21.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539100306

LOCKING PIN

$35.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102193

ADAPTER SHIELD

$18.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

3

Husqvarna 539990555

COTTER PIN 3/32 X 1/2

$1.99

$

Usually ships in 3-10 days

0
