539123118 - Dixon Grass Catcher for 30" SpeedZTR Zero-Turn Mowers (2008) GENERAL ASSEMBLY (PART 2) Parts Diagram

Grass Catcher for 30" SpeedZTR Zero-Turn Mowers

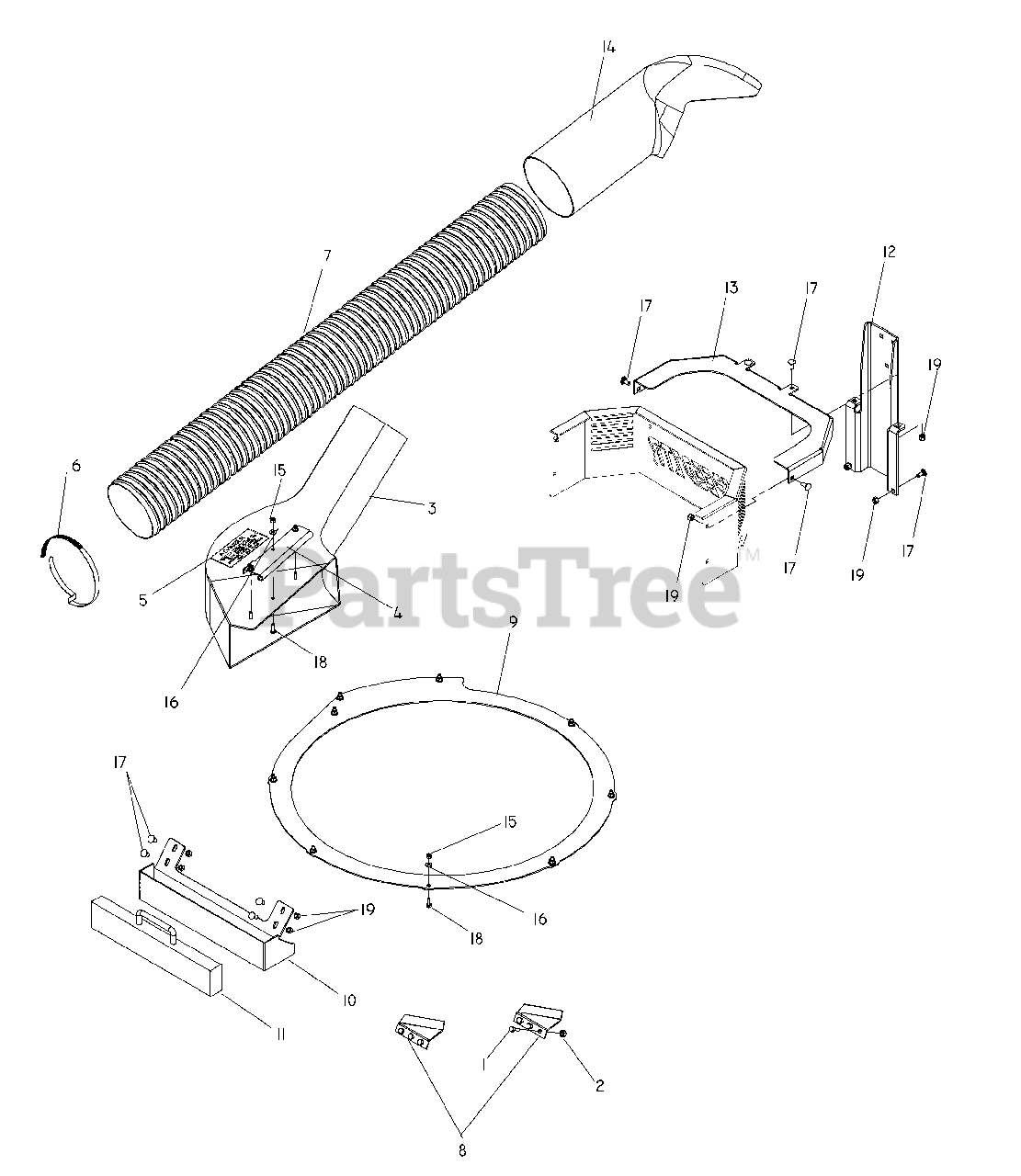

GENERAL ASSEMBLY (PART 2) Parts Diagram

  • Title

1

Dixon 539108397

HCS 5/16-24 X 7/8 GR 5 ZD

$0.99

$

Usually ships in 3-10 days

0

2

Dixon 539110943

NUT 5/16F NYLOC

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539131351

DISCHARGE ADAPTER W/DECAL
(Superseded to 539115338)

$

$

Not available

4

Dixon 539115352

DISCHARGE MT. BRACKET

$54.99

$

Usually ships in 3-10 days

0

5

Dixon 539115401

G.C.WARNING DECAL

$9.99

$

Usually ships in 3-10 days

0

6

Dixon 539115719

HOSE CLAMP

$21.99

$

Usually ships in 3-10 days

0

7

Dixon 539115938

FLEX HOSE 6 X 50

$364.99

$

Usually ships in 3-10 days

0

8

Dixon 539116336

HI LIFT ADAPTOR

$24.99

$

Usually ships in 3-10 days

0

9

Dixon 539119910

BOOSTER RING

$

$

Not available

10

Dixon 539120206

WEIGHT BOX WLDT.

$56.99

$

Usually ships in 3-10 days

0

11

Dixon 539121399

WEIGHT WLDT. RAM

$132.99

$

Usually ships in 3-10 days

0

12

Dixon 539131153

BRACKET, HANGER

$103.99

$

Usually ships in 3-10 days

0

13

Dixon 539131157

REINFORCEMENT - PAINTED

$103.99

$

Usually ships in 3-10 days

0

14

Dixon 539131190

UPPER CHUTE - MODIFIED

$

$

Not available

15

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 20+

0

17

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

19

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
