539130372 - Dixon Blower for 50" Ram Zero-Turn Mowers (2008) 50" INCH BLOWER SYSTEM Parts Diagram

Blower for 50" Ram Zero-Turn Mowers

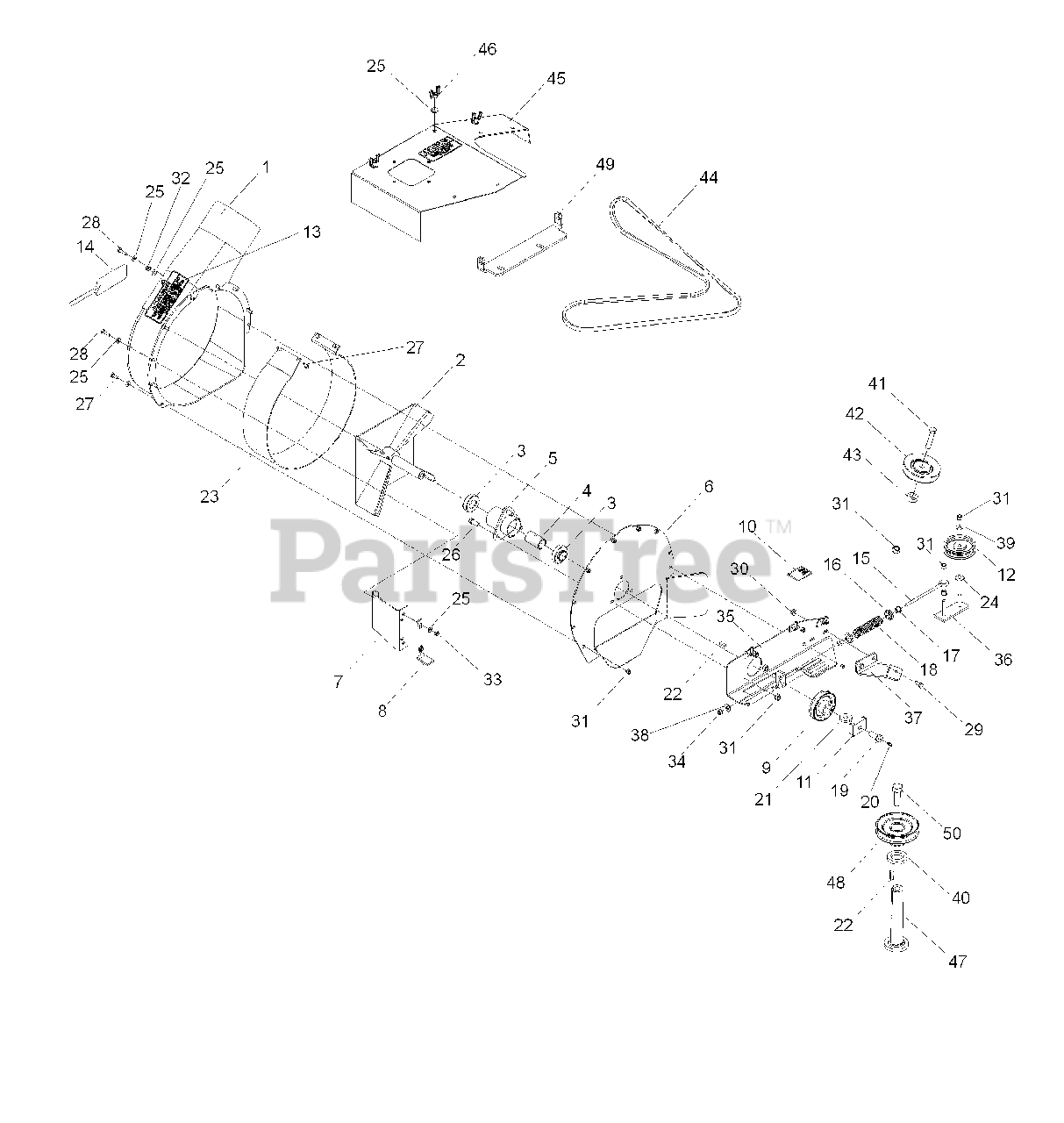

50" INCH BLOWER SYSTEM Parts Diagram

  • Title

1

539130709

$

$

Not available

2

Dixon 539117544

FAN/SHAFT WLDT.

$797.99

$

Usually ships in 3-10 days

0

3

Dixon 539115279

BEARING-ECC LOCK

$

$

Not available

4

Dixon 539115876

SPACER 1 X 2.083

$

$

Not available

5

Dixon 539115875

HUB WLDT-MACHINED

$

$

Not available

6

Dixon 539117263

HOUSING PLATE

$

$

Not available

7

Dixon 539115911

HOUSING GUARD

$

$

Not available

8

Dixon 539117286

TIP GUARD

$

$

Not available

9

Dixon 539115888

PULLEY - 3.5

$

$

Not available

10

Dixon 539115740

DECAL, ROUTING 42"

$

$

Not available

11

Dixon 539117502

TARGET

$

$

Not available

12

Dixon 539117500

PULLEY, IDLER 3 METAL

$

$

Not available

13

Dixon 539115401

G.C.WARNING DECAL

$

$

Not available

14

Dixon 539119902

DECAL, DIXON

$

$

Not available

15

Dixon 539115575

EYE BOLT 5/16 X 6.00

$

$

Not available

16

Dixon 539115720

SPRING RETAINER

$

$

Not available

17

Dixon 539115542

FLIP-LOK BUSHING

$3.49

$

In Stock, Qty 7

0

18

Dixon 539115870

SPRING

$9.49

$

Usually ships in 3-10 days

0

19

Dixon 539115637

HUB BOLT-DRILLED

$22.99

$

In Stock, only 1 left!

0

20

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.49

$

In Stock, Qty 10

0

21

Dixon 539115636

WASHER .525 X 1.375 X .25

$11.99

$

In Stock, only 1 left!

0

22

Dixon 539116196

OUTER SHAFT KEY

$

$

Not available

23

Dixon 539117548

SAND LINER

$

$

Not available

24

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 539115562

1/4` SAE FLAT WASHER
(Superseded to 539990055)

$3.99

$

In Stock, Qty 19

0

26

Dixon 539990563

HCS 3/8C X 1

$

$

Not available

27

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

30

Dixon 539115674

5/16-18 FLANGED L-NUT

$

$

Not available

31

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

32

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

33

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

34

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

35

Dixon 539116162

IDLER BASE WLDT.

$

$

Not available

36

Dixon 539116167

SLIDE ARM WLDT

$

$

Not available

37

Dixon 539116165

IDLER MOUNT BRACKET

$

$

Not available

38

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

39

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

40

Dixon 539115753

SPACER .25

$

$

Not available

41

Dixon 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 539117501

PULLEY, IDLER 3 METAL

$

$

Not available

43

Dixon 539115359

BLADE ADAPTOR

$

$

Not available

44

Dixon 539115933

V BELT - BLOWER

$

$

Not available

45

Dixon 539117504

50` GUARD ASM

Note: 50"

$

$

Not available

46

Dixon 539990997

WING NUT 1/4

$3.49

$

In Stock, only 2 left!

0

47

Dixon 539119810

SHAFT LONG

$

$

Not available

48

Dixon 539118687

PULLEY METRIC(BLOWER)

$

$

Not available

49

Dixon 539130373

BRACKET, MOUNT, BLOWER

$

$

Not available

50

Dixon 539115549

1/2-20X1-1/2 HHB G5

$

$

Not available

539130371

Note: NOT SHOWN 50"

$

$

Not available
