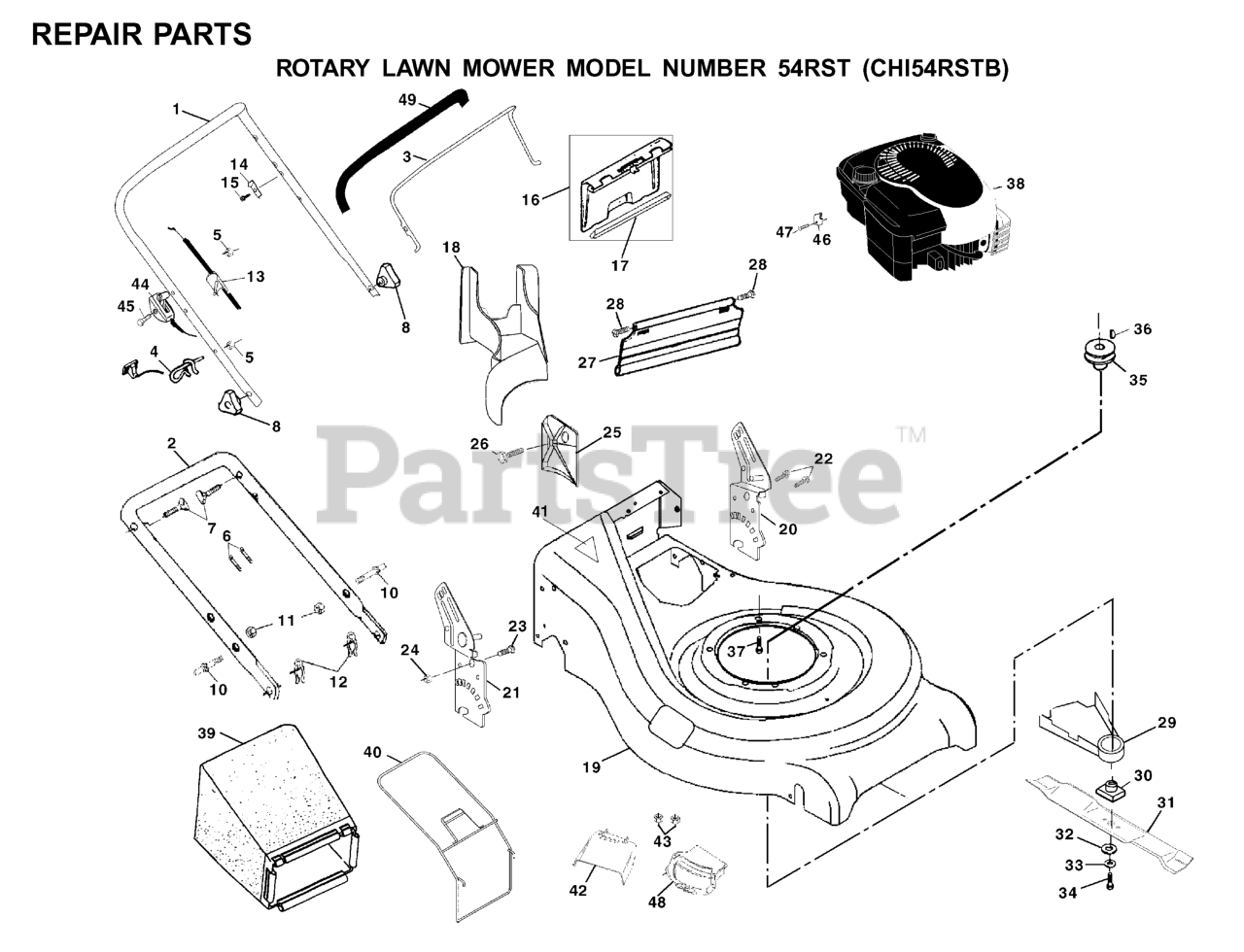

54 - Husqvarna Walk-Behind Reel Mower (2001-03) FRAME & ENGINE Parts Diagram

Walk-Behind Reel Mower

FRAME & ENGINE Parts Diagram

  • Title

39

Husqvarna 532169111

Grass Catcher Bag
(Superseded to 532410686)

$72.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

47

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532166028

GUARD
(Superseded to 532169699)

$

$

Not available

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532174205

HANDLE, LOWER
(Superseded to 532197202)

$

$

Not available

13

Husqvarna 532133107

ENGINE ZONE CONTROL

$18.99

$

In Stock, only 1 left!

0

- -

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

$1.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

46

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

35

Husqvarna 532084596

ENGINE.PULLEY.FWG

$34.99

$

In Stock, only 2 left!

0

49

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

8

Husqvarna 532087692

KNOB

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532161358

FRAME.GRASS.CATCHER.WALK.21"

$

$

Not available

1

Husqvarna 532169369

HANDLE.UP.DLX.COMF.W/GRIP.GREY

$54.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532164548

.RACKET
(Superseded to 532161568)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532088349

NUT

$7.49

$

In Stock, only 3 left!

0

30

Husqvarna 532851514

BLADE ADAPTOR

$17.99

$

In Stock, Qty 20+

0

44

Husqvarna 532164137

THROTTLE TRIGGER
(Superseded to 532182154)

$

$

Not available

27

Husqvarna 532161550

REAR SKIRT
(Superseded to 532408442)

$

$

Not available

4

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 7

0

17

Husqvarna 532161548

SEALING
(Superseded to 532189059)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532162085

KIT.DOOR.REAR.21.WRAPPED.BLACK

$

$

Not available

- -

Husqvarna 532176803

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532131036

CONTROL BAR
(Superseded to 532851659)

$15.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532171962

MULCH COVER
(Superseded to 532183058)

$34.99

$

In Stock, only 2 left!

0

28

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 532165261

MULCH PLUG
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

29

Husqvarna 532134612

DEBRIS SHIELD
(Superseded to 532048283)

$

$

Not available

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532161551

BOLT
(Superseded to 532188821)

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532159267

21" MULCH BLADE PREMIUM

$27.99

$

In Stock, only 1 left!

0

36

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532169189

KIT-HOUSING

$

$

Not available

21

Husqvarna 532169306

RIGHT HANDLE BRKT. ASSM.
(Superseded to 532181020)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 873990500

NUT
(Superseded to 873800500)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$8.99

$

Usually ships in 3-10 days
