540 iXP - Husqvarna Chainsaw CHAIN BRAKE Parts Diagram

Chainsaw

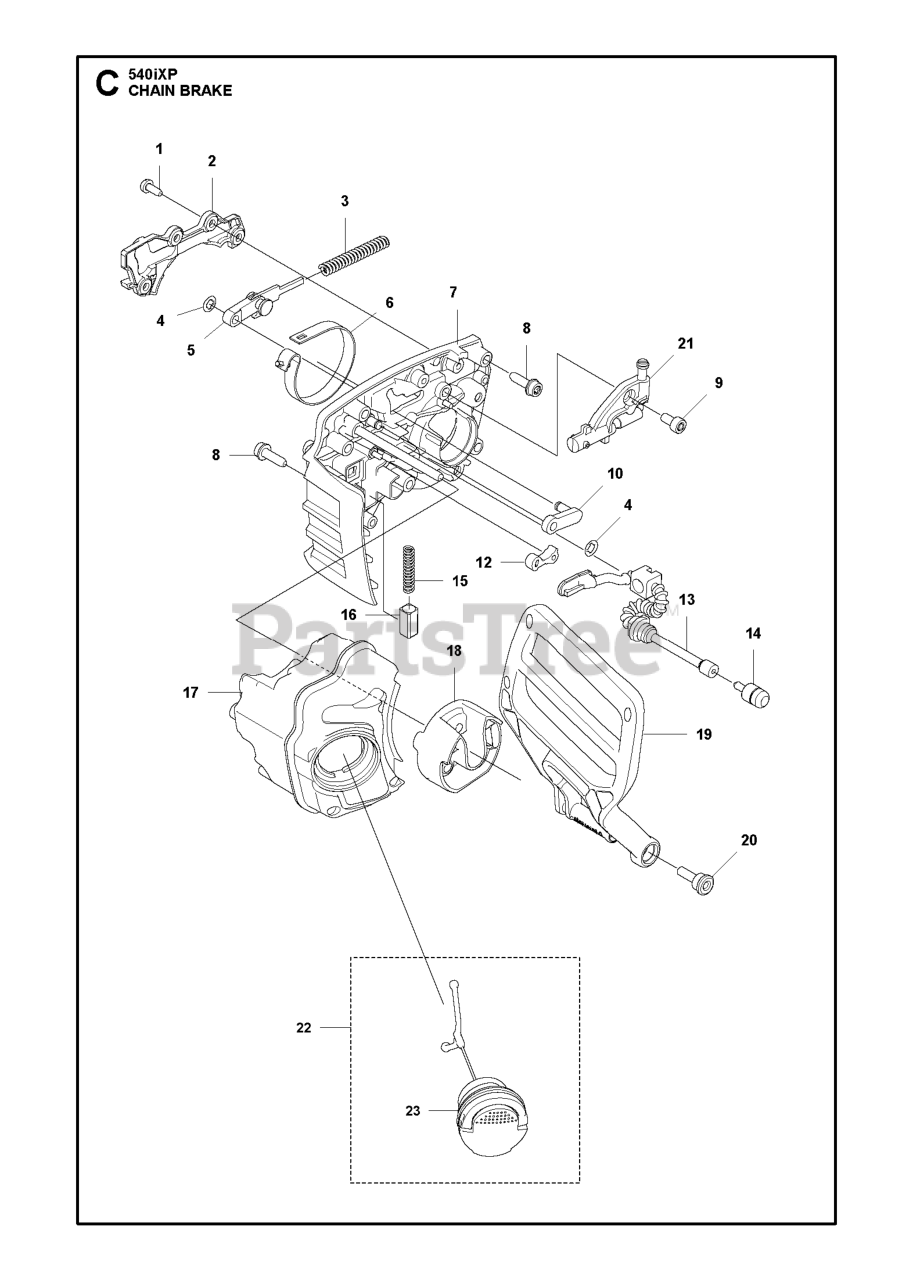

CHAIN BRAKE Parts Diagram

  • Title

22

Husqvarna 522620003

TANK CAP ASSY
(Superseded to 522620001)

$9.49

$

In Stock, only 1 left!

0

4

Husqvarna 596302401

Washers

Note: Locking

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 593015101

Tanks

Note: Assy

$

$

Not available

10

Husqvarna 593722301

Drive Links

Note: Knee Joint

$

$

Not available

2

Husqvarna 593641601

Covers

Note: Brake

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 526221801

SCREW

$3.49

$

In Stock, only 2 left!

0

20

Husqvarna 580284201

Screws

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503967501

OIL PLUMMET

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 596953601

CHASSIS

Note: Rear handle

$68.99

$

Usually ships in 3-10 days

0

6

Husqvarna 585590301

BRAKE BAND

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 599231901

Joints

$20.99

$

Usually ships in 3-10 days

0

8

Husqvarna 573925801

SCREW

$3.49

$

In Stock, only 1 left!

0

16

Husqvarna 537210701

GUIDE

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 594919801

Hand Guard

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 589241101

SEALING

$6.99

$

In Stock, only 3 left!

0

21

Husqvarna 544180103

OIL PUMP ASSY

$31.99

$

In Stock, only 2 left!

0

12

Husqvarna 505201201

CATCH

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 592920801

Hoses

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 595026101

Brakes

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 525824904

Screws

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 503436501

LOCK SPRING

$3.49

$

In Stock, only 1 left!

0

19

Husqvarna 594919601

GUARDS

$22.99

$

Usually ships in 3-10 days

0
