540 Novolette - Husqvarna Walk-Behind Reel Mower (2000-02) PRODUCT COMPLETE Parts Diagram

Walk-Behind Reel Mower

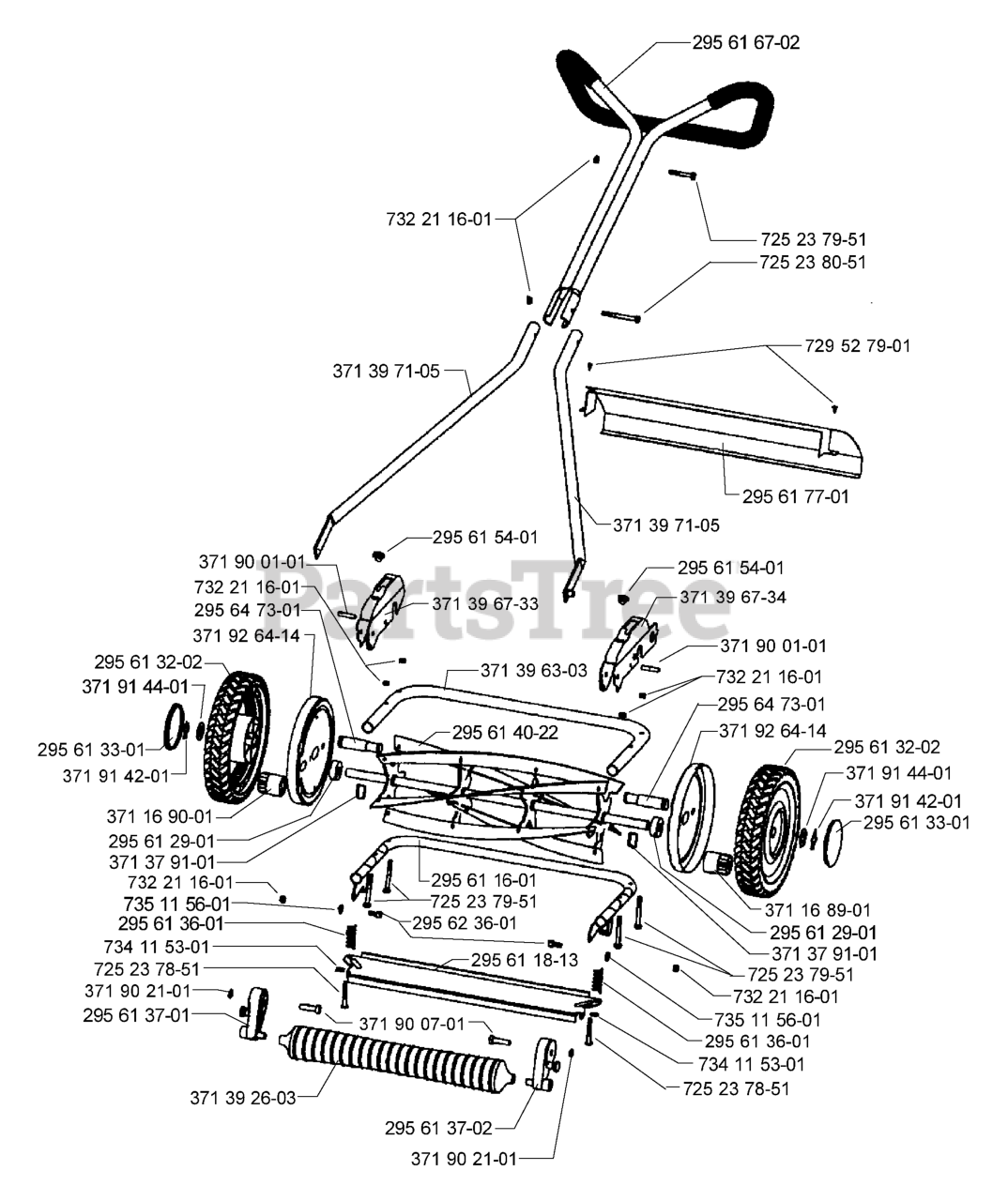

PRODUCT COMPLETE Parts Diagram

  • Title

371 39 67-33

Husqvarna 371396733

BRACKET

$

$

Not available

371 39 71-05

Husqvarna 371397105

HANDLE

$

$

Not available

371 91 44-01

Husqvarna 371914401

WASHER

$

$

Not available

295 64 73-01

Husqvarna 295647301

SHAFT

$

$

Not available

295 61 29-01

Husqvarna 295612901

BEARING
(Superseded to 295655801)

$28.99

$

Usually ships in 3-10 days

0

371 16 90-01

Husqvarna 371169001

PINION L
(Superseded to 371914701)

$

$

Not available

371 37 91-01

Husqvarna 371379101

PAWL

$6.99

$

Usually ships in 3-10 days

0

371 92 64-14

Husqvarna 371926414

PROTECTOR

$

$

Not available

371 90 21-01

Husqvarna 371902101

LOCKING WASHER

$10.99

$

Usually ships in 3-10 days

0

732 21 16-01

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

295 61 54-01

Husqvarna 295615401

PLUG

$

$

Not available

295 61 37-01

Husqvarna 295613701

HOLDER

$

$

Not available

725 23 80-51

Husqvarna 725238051

SCREW M6X50

$4.99

$

Usually ships in 3-10 days

0

295 61 36-01

Husqvarna 295613601

SPRING M53 / M48

$5.99

$

Usually ships in 3-10 days

0

734 11 53-01

Husqvarna 734115301

Washer

$

$

Not available

725 23 78-51

Husqvarna 725237851

SCREW

$6.49

$

In Stock, only 2 left!

0

371 90 01-01

Husqvarna 371900101

P/N NOT AVAILABLE

$

$

Not available

371 90 07-01

Husqvarna 371900701

BOLT

$

$

Not available

371 91 42-01

Husqvarna 371914201

SPRING

$7.99

$

Usually ships in 3-10 days

0

295 61 37-02

Husqvarna 295613702

HOLDER

$

$

Not available

371 39 26-03

Husqvarna 371392603

ROLLER 4/40
(Superseded to 295656901)

$

$

Not available

295 61 32-02

Husqvarna 295613202

WHEEL
(Superseded to 295696301)

$45.99

$

Usually ships in 3-10 days

0

295 62 36-01

Husqvarna 295623601

SCREW

$

$

Not available

725 23 79-51

Husqvarna 725237951

SCREW

$7.99

$

In Stock, only 1 left!

0

735 11 56-01

Husqvarna 735115601

$

$

Not available

295 61 16-01

Husqvarna 295611601

LOOP

$

$

Not available

729 52 79-01

Husqvarna 729527901

SCREW

$3.49

$

Usually ships in 3-10 days

0

371 16 89-01

Husqvarna 371168901

REPL BY 371 91 47-01
(Superseded to 371914701)

$

$

Not available

295 61 40-22

Husqvarna 295614022

CUTTER REEL

$

$

Not available

371 39 67-34

Husqvarna 371396734

BRACKET

$

$

Not available

295 61 33-01

Husqvarna 295613301

HUBCAP
(Superseded to 295613305)

$

$

Not available

295 61 67-02

Husqvarna 295616702

HANDLE

$

$

Not available

371 39 63-03

Husqvarna 371396303

FRAME

$

$

Not available

295 61 18-13

Husqvarna 295611813

BLADE

$

$

Not available

295 61 77-01

Husqvarna 295617701

COVER

$

$

Not available
