540 (UT-10550) - Homelite Chainsaw Engine Housing - Fuel Tank - Oil Tank Parts Diagram

Chainsaw

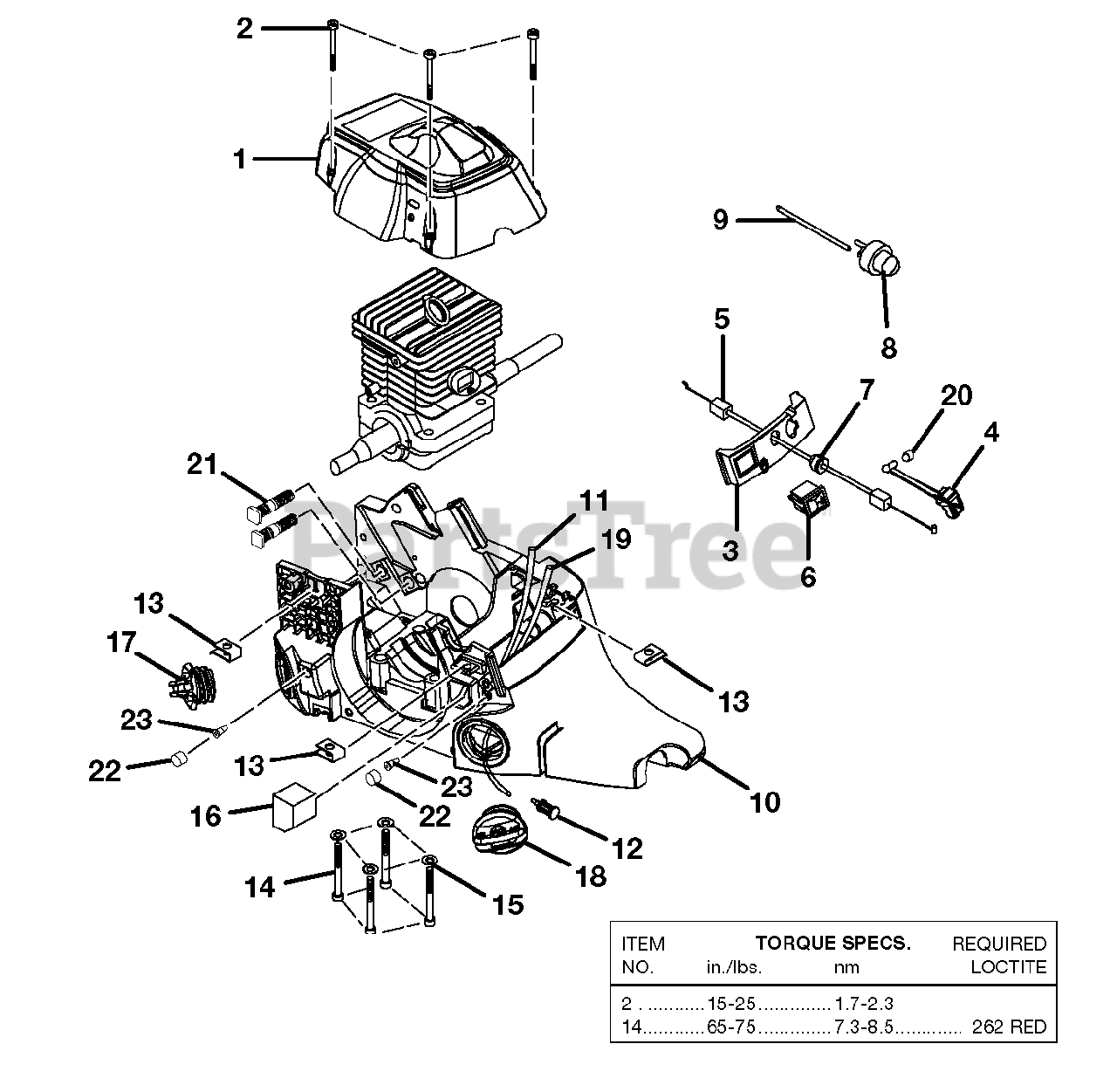

Engine Housing - Fuel Tank - Oil Tank Parts Diagram

  • Title

1

Homelite 518042001

CYLINDER COVER
(Superseded to 984363001)

$

$

Not available

2

Homelite 660636001

SCREW (10-16 X 1.5 PAN HD.)

$

$

Not available

3

Homelite 518044001

CONTROL PANEL
(Superseded to PS06119)

$

$

Not available

4

Homelite 511709002

ROD, CHOKE
(Superseded to PA01644)

$

$

Not available

5

Homelite 900885001

THROTTLE CABLE

$2.49

$

In Stock, Qty 6

0

6

Homelite 760352001

SWITCH, ROCKER
(Superseded to PS06163)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 570227001

GROMMET - SPLIT

$1.49

$

In Stock, only 1 left!

0

8

Homelite 308088001

PRIMER BULB
(Superseded to 01183)

$

$

Not available

9

Homelite 570247004

RUBBER TUBING (2-1/2 in.)
(Superseded to 0745410)

$

$

Not available

10

Homelite 300947003

CHASSIS & COMPONENTS ASSEMBLY (45CC)

$

$

Not available

11

Homelite 570247003

RUBBER TUBING (8-1/2 in.)
(Superseded to 0745434)

$

$

Not available

12

Homelite 300759003

FUEL FILTER

$

$

Not available

13

Homelite 671077001

SPEED NUT
(Superseded to 07598)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660622001

SCREW (10-24 x 2 in.)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 671080001

WASHER

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 900844001

PRE FILTER
(Superseded to PS05070)

$

$

Not available

17

Homelite 300949001

OIL CAP
(Superseded to 090038001001)

$1.49

$

In Stock, only 3 left!

0

18

Homelite 300948001

FUEL CAP

$

$

Not available

19

Homelite 570247002

RUBBER TUBING (5-1/2 in.)
(Superseded to 0745422)

$5.49

$

Usually ships in 3-7 days

0

20

Homelite 631034002

HAIR PIN, CHOKE ROD

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 660628001

BOLT, GUIDE BAR
(Superseded to PS04881)

$

$

Not available

22

Homelite 671088001

ELEMENT, BRONZE

$

$

Not available

23

Homelite 560955001

DUCK BILL VALVE

$1.99

$

In Stock, Qty 9

0

Homelite 940299388

STARTING INSTRUCTION

$

$

Not available

Homelite 940299512

CHAIN BRAKE

$1.49

$

Usually ships in 3-7 days

0

Homelite 940299376

KICKBACK

$

$

Not available

Homelite 940299381

DRIVECASE COVER

$

$

Not available

Homelite 940299373

STARTER HOUSING DECALS: 18 in. (45cc)

$

$

Not available

Homelite 940299384

GUIDE BAR OIL LABEL

$1.49

$

Usually ships in 3-7 days

0

Homelite 940299383

FUEL MIX LABEL (50:1)

$

$

Not available
