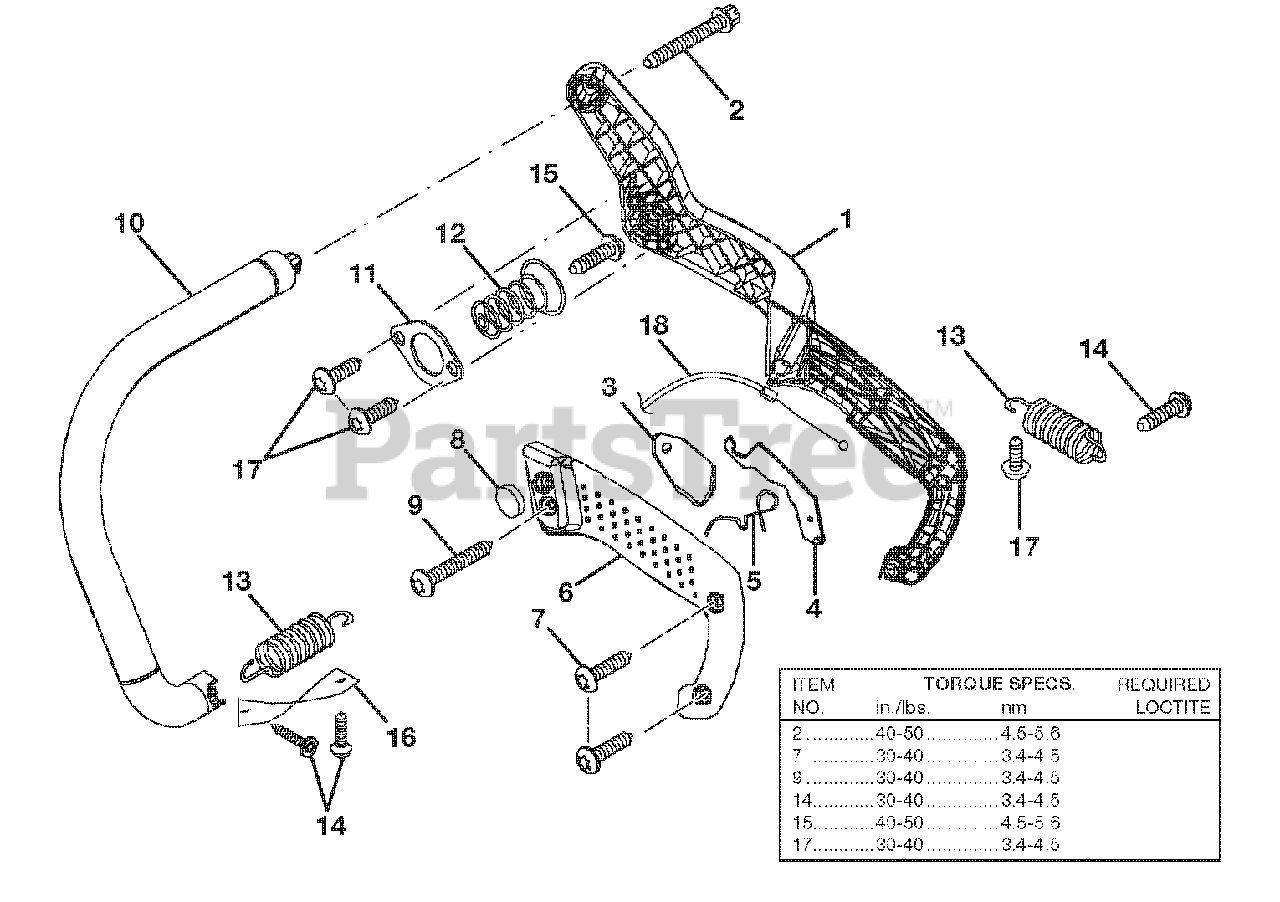

540 (UT-10550) - Homelite Chainsaw Handles Parts Diagram

Chainsaw

Handles Parts Diagram

  • Title

1

Homelite 511721001

REAR HANDLE
(Superseded to 511721004)

$6.99

$

Usually ships in 3-7 days

0

2

Homelite 660631001

SCREW (12-14 x 1-1/2 in.)
(Superseded to 82615)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 518052001

TRIGGER, THROTTLE

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 518051001

THROTTLE LOCK OUT
(Superseded to PS06111)

$

$

Not available

5

Homelite 678037001

TORSION SPRING
(Superseded to PS04914)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 511722001

HANDLE COVER
(Superseded to 06871)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 660629001

SCREW (10-14 x 3/4 in.)
(Superseded to 82563)

$1.49

$

In Stock, Qty 6

0

8

Homelite 518050001

PLUG-PLASTIC
(Superseded to PS04932)

$

$

Not available

9

Homelite 660633001

SCREW (10-14 x 1-3/8 in.)
(Superseded to 82622)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 511724001

FRONT HANDLE
(Superseded to 511724011)

$

$

Not available

11

Homelite 631051001

ISOLATOR PLATE

$

$

Not available

12

Homelite 671098001

UPPER ISOLATION SPRING
(Superseded to PS05199)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 671101001

SPRING - ISOLATOR

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660632001

SCREW (10-14 x 5/8 in.)
(Superseded to 82621)

$

$

Not available

15

Homelite 660630001

SCREW (10-24 x 5/8 in.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 631050001

SPRING RETAINER

$

$

Not available

17

Homelite 660618001

SCREW (10-14 x 1/2 in.)
(Superseded to 82541)

$1.49

$

In Stock, only 3 left!

0

18

Homelite 900885001

THROTTLE CABLE

$2.49

$

In Stock, Qty 6

0
