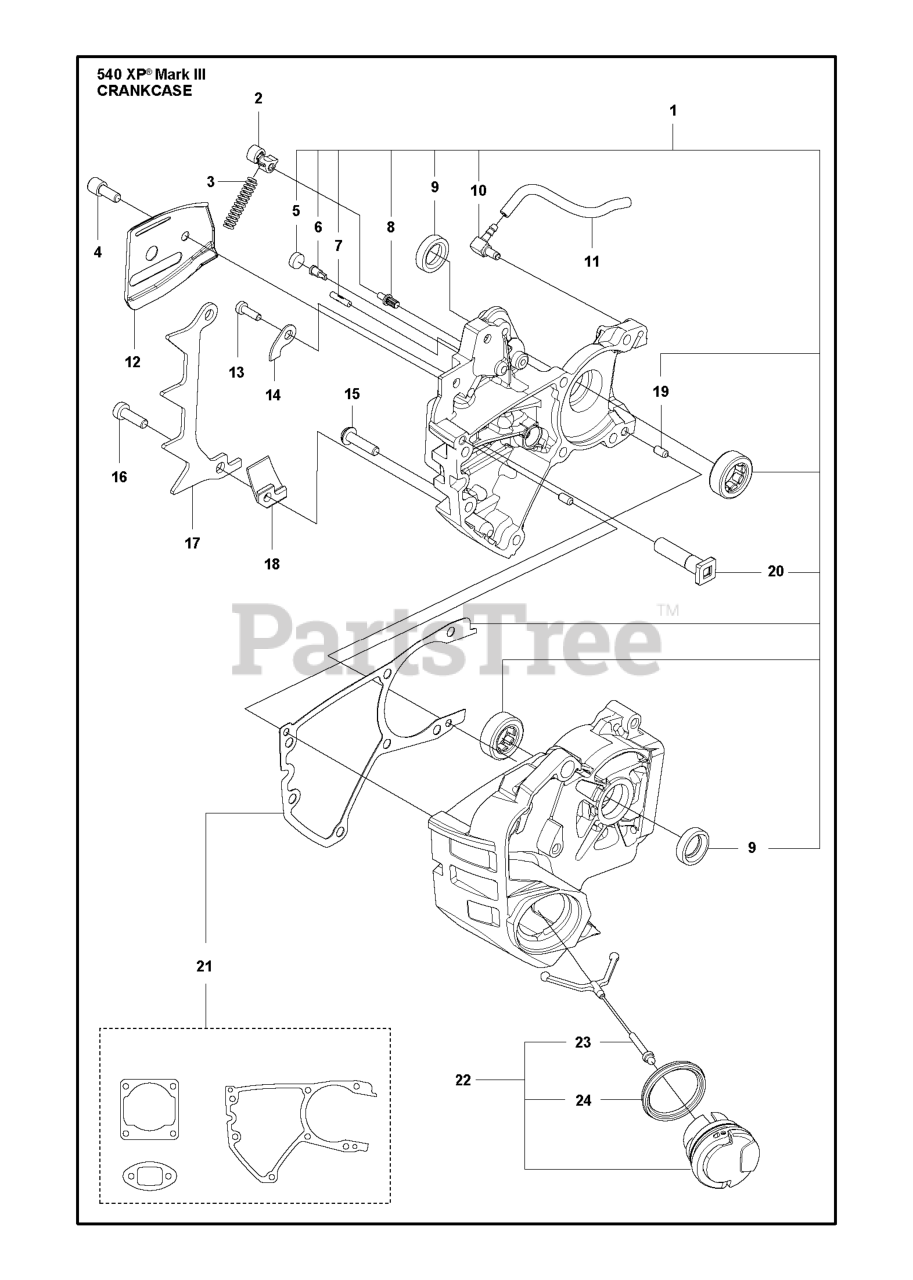

540 XP Mark III - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

17

Husqvarna 534089001

NEEDS DESCRIPTION

$1.49

$

Usually ships in 3-10 days

0

22

Husqvarna 522620003

TANK CAP ASSY

$12.99

$

In Stock, Qty 9

0

21

Husqvarna 536660201

NEEDS DESCRIPTION

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 580250401

WASHER

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 505217301

BAR BOLT

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 516961901

AIR CONTROL BREATHER

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 529268201

SCREW
(Superseded to 506689001)

$6.49

$

In Stock, Qty 7

0

18

Husqvarna 505288501

CHAIN CATCHER

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 577167401

PIN

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 589241101

SEALING

$8.99

$

In Stock, Qty 15

0

7

Husqvarna 721120730

PIN

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 599816901

NEEDS DESCRIPTION

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 521799901

BOLT

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505201201

CATCH

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 588139701

RADIAL SEAL

$17.99

$

Usually ships in 3-10 days

0

1

Husqvarna 599809301

NEEDS DESCRIPTION

$193.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 12

0

23

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

15

Husqvarna 529268201

SCREW
(Superseded to 506689001)

$6.49

$

In Stock, Qty 7

0

16

Husqvarna 590266501

SCREW HEXABOULAR SLOTTED SOCKE

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 599810901

NEEDS DESCRIPTION

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 590508001

ELBOW FITTING

$9.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503751801

PIN

$7.99

$

In Stock, Qty 8

0

5

Husqvarna 513746401

SEAL Z285021250

$7.49

$

Usually ships in 3-10 days

0
