540477-2225-01 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

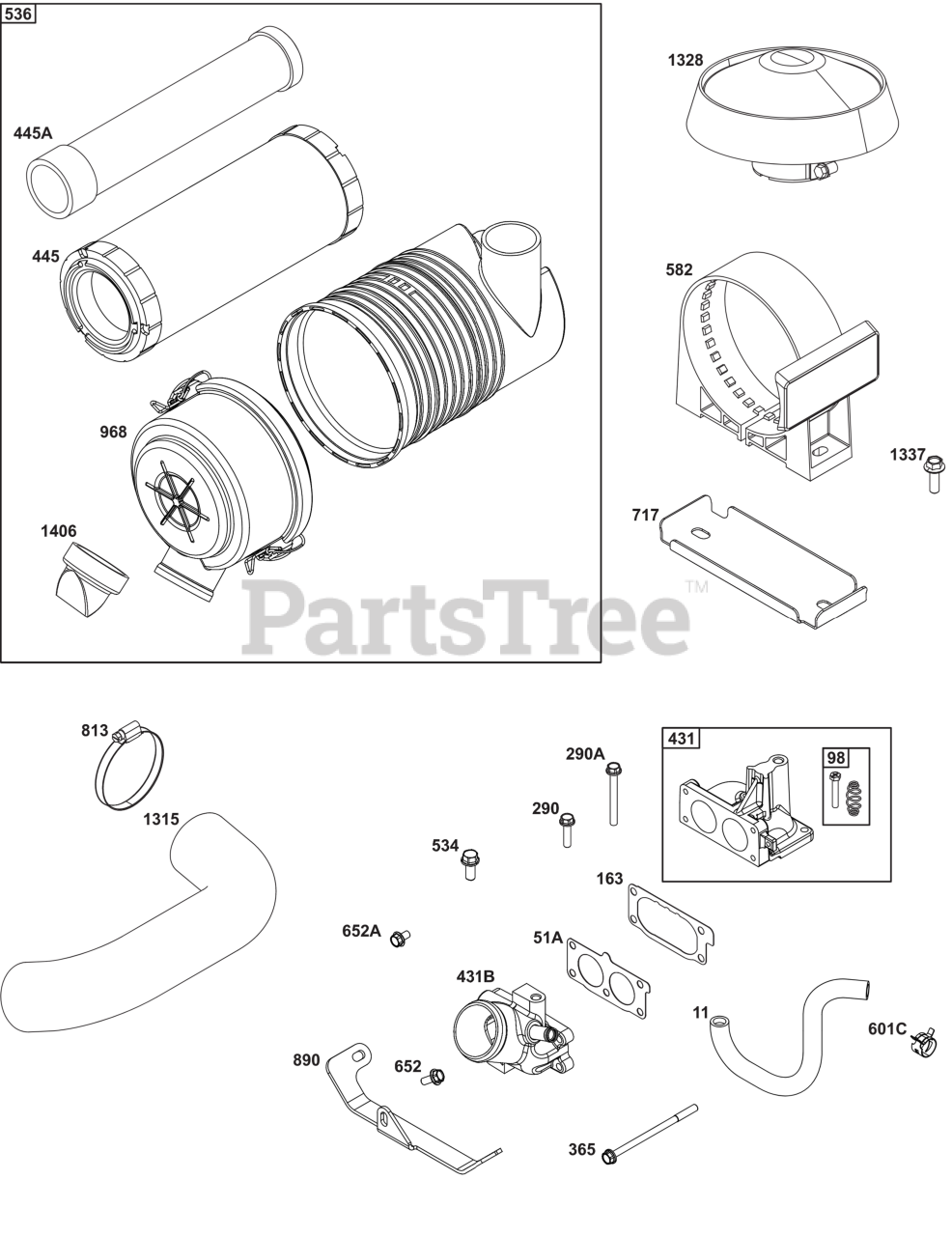

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 809736

TUBE, Breather

$22.99

$

Usually ships in 2-12 days

0

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

98

Briggs & Stratton 841842

KIT, Idle Speed

$12.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 5

0

290

Briggs & Stratton 846510

COVER, Wire

Note: (Intake Elbow)

$322.99

$

Usually ships in 2-12 days

0

290A

Briggs & Stratton 809911

SCREW

Note: (Intake Elbow)

$3.99

$

Usually ships in 2-12 days

0

365

SCREW

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

431

Briggs & Stratton 841539

ELBOW, Intake

$88.99

$

Usually ships in 2-12 days

0

431B

Briggs & Stratton 809896

ADAPTER, Air Cleaner

$63.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 841497

FILTER, A/C Cartridge

$34.99

$

Usually ships in 2-12 days

0

445A

Briggs & Stratton 821136

FILTER, A/C Cartridge

$33.99

$

In Stock, only 2 left!

0

534

Briggs & Stratton 692062

SCREW

Note: (Air Cleaner)

$3.49

$

In Stock, only 1 left!

0

536

Briggs & Stratton 809670

CLEANER, Air

$235.99

$

In Stock, only 1 left!

0

582

Briggs & Stratton 809878

CLAMP, Air Cleaner

$65.99

$

In Stock, only 1 left!

0

601C

Briggs & Stratton 844405

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket)

$3.49

$

In Stock, Qty 13

0

652A

Briggs & Stratton 841233

SCREW

Note: (Support Bracket)

$3.49

$

In Stock, only 2 left!

0

717

Briggs & Stratton 841886

BRACKET, Air Cleaner

$17.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 593625

CLAMP

$9.49

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 841614

BRACKET, Support

$23.99

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 842621

COVER, Air Cleaner

$81.99

$

In Stock, only 1 left!

0

1315

Briggs & Stratton 809905

HOSE, Air Cleaner

$69.99

$

Usually ships in 2-12 days

0

1328

Briggs & Stratton 809907

CAP, A/C Rain

$63.99

$

Usually ships in 2-12 days

0

1337

Briggs & Stratton 807382

SCREW

$3.49

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 842623

VALVE, Debris

$20.99

$

In Stock, only 1 left!

0
