5411 - Troy-Bilt Pony VI Rear-Tine Tiller (SN: S0204133 - S0242649) ELECTRIC START ASSY. Parts Diagram

Pony VI Rear-Tine Tiller

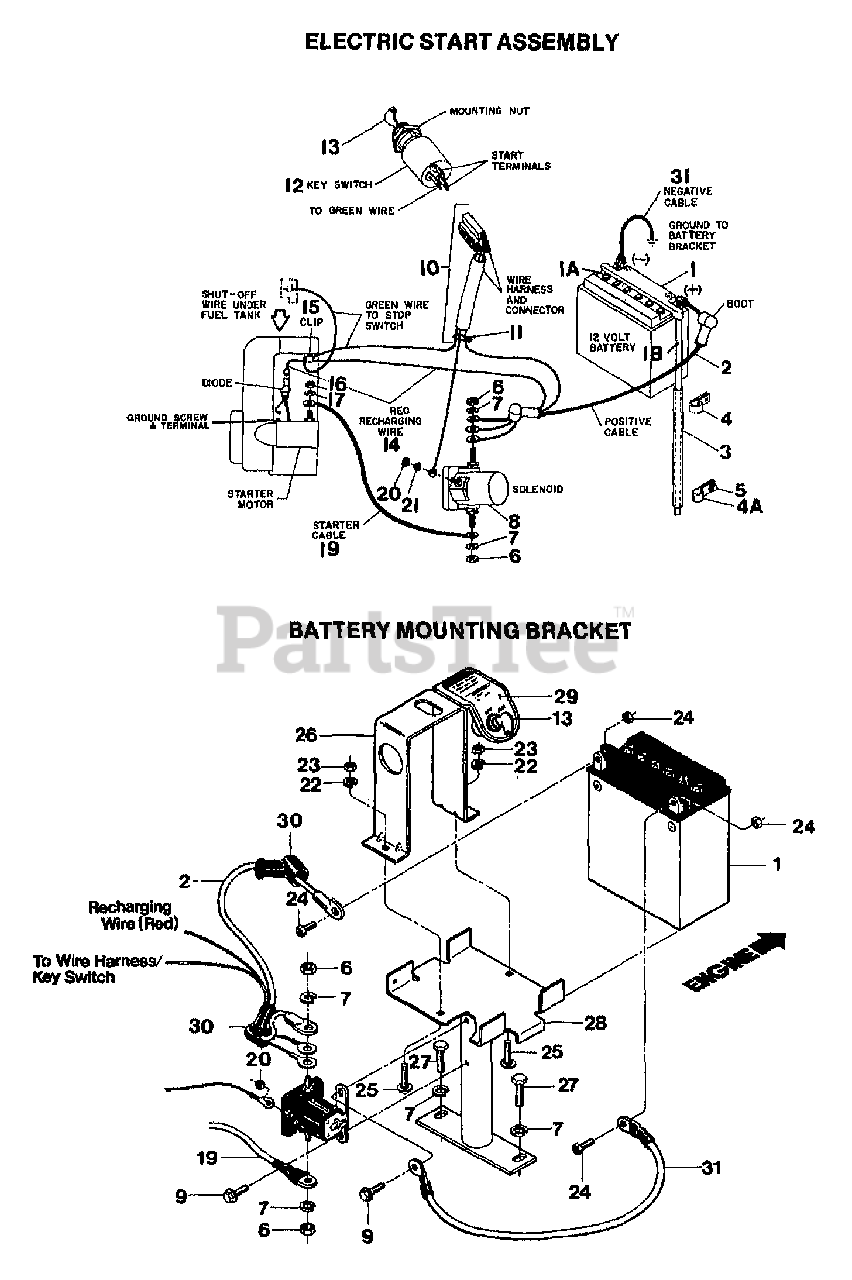

ELECTRIC START ASSY. Parts Diagram

  • Title

1

Troy-Bilt 9234

BATTERY - 12 VOLT, 12 AMPERE

$

$

Currently unavailable

1A

MTD 9462

CAP-YELLOW

$

$

Not available

1A

MTD 9248

CAP-BATTERY WHITE (PONY)

$

$

Not available

1B

MTD 9009

TUBE-VENT BATTERY/HSE

$

$

Not available

2

Troy-Bilt 9296

CABLE-BATTERY

$

$

Currently unavailable

3

MTD 1475

TUBING-RUBBER (PLASTIC)

$

$

Not available

4

MTD 9224

CLAMP -VENT TUBE (SMALL)

$

$

Not available

4A

Troy-Bilt 9391

CLAMP-VENT TUBE 9/16 OPC (LARGE)

$

$

Currently unavailable

5

Troy-Bilt 9780

SCR-HH 1/4-20X.625

$

$

Currently unavailable

6

Troy-Bilt 9826

NUT-HEX 5/16-24

$

$

Currently unavailable

7

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

8

Troy-Bilt 1959

KIT-SOL W/HDW (INCL. NUTS & WAHSERS FOR CABLES & WIRES)

$

$

Currently unavailable

9

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 20857

ASSM-HARNESS 2647/20857 - AVAIL. AS COMPLETE UNIT ONLY

$

$

Currently unavailable

11

Troy-Bilt 9265

TIE-TWIST LOCK (PLASTIC)
(Superseded to GW-9265)

$

$

Not available

12

Troy-Bilt 9230

KEYSWITCH W/KEYS (PAIR OF KEYS INCL.)

$

$

Currently unavailable

13

Troy-Bilt 9243

KEYS(1 PAIR) FOR SWITCH

$

$

Currently unavailable

14

Troy-Bilt 1554

WIRE-RECHARGE 5&7 BRIGGS

$

$

Currently unavailable

15

Troy-Bilt 9218

CLIP-SPECIAL
(Superseded to GW-9218)

$

$

Not available

16

0

NUT - HEX #10-24

$

$

Not available

17

0

LOCKWASHER - #10

$

$

Not available

19

Troy-Bilt 9223

CABLE-BATTERY

$

$

Currently unavailable

20

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

21

Troy-Bilt 9921

WASHER-EXTERNAL TOOTH 1
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

23

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

24

Troy-Bilt 11361

HDW PKG-BATTERY TERMINAL

$

$

Currently unavailable

25

MTD 9566

SCR-CARR 1/4-20X1.25

$

$

Not available

26

Troy-Bilt 20859

PLATE-KEYSWITCH W/DECAL (INCL. #20820 DECAL)

$

$

Currently unavailable

27

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

28

Troy-Bilt 20837

BRKT-BATTERY OPC PNT
(Superseded to GW-20837)

$

$

Not available

29

Troy-Bilt 20820

DECAL-KEYSWITCH

$

$

Currently unavailable

30

Troy-Bilt 9255

BOOT

$

$

Currently unavailable

31

Troy-Bilt 9392

CABLE-BATTERY 13.5"

$

$

Currently unavailable
