5411 - Troy-Bilt Pony VI Rear-Tine Tiller (SN: S0204133 - S0242649) TINES & WHEELS Parts Diagram

Pony VI Rear-Tine Tiller

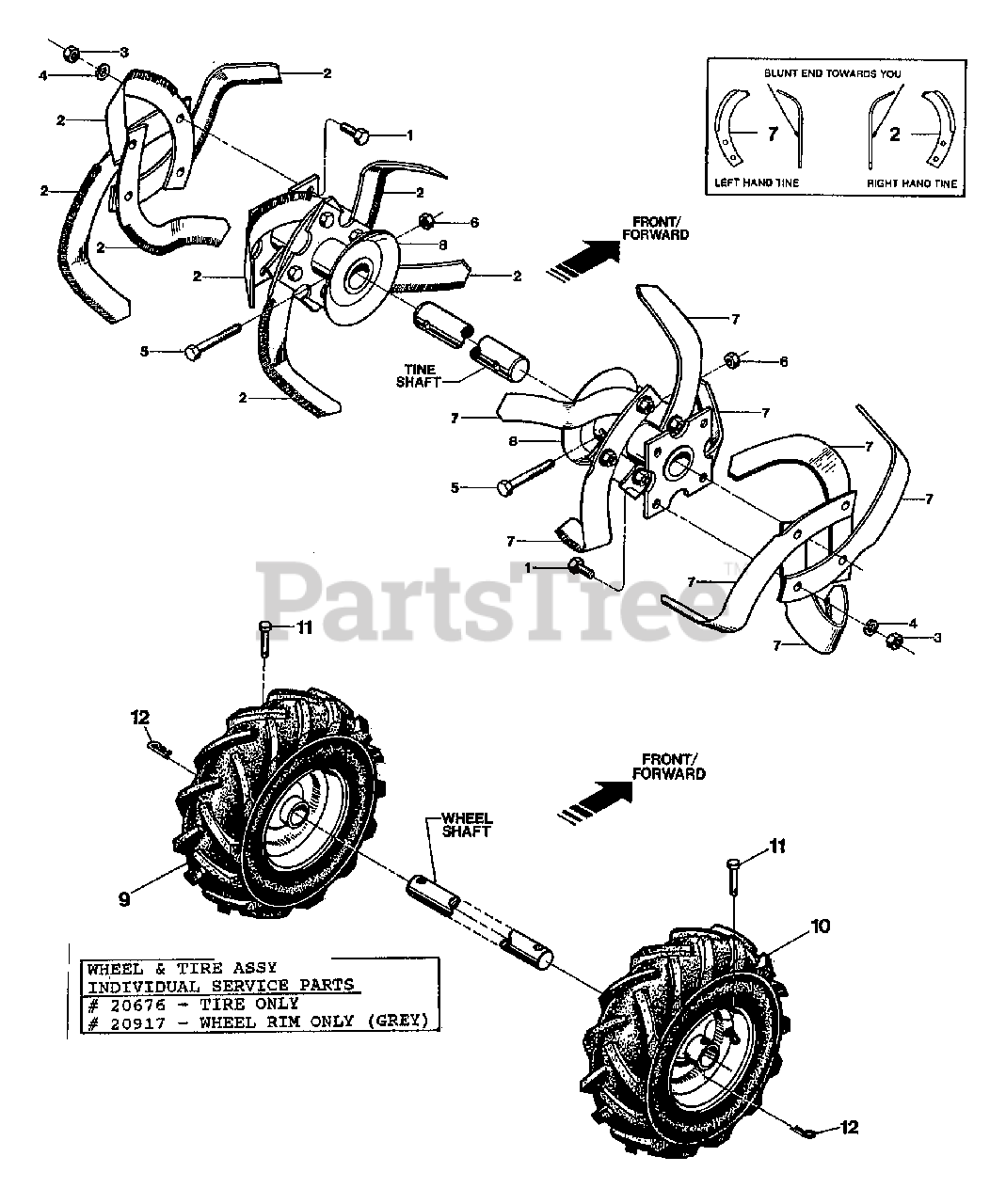

TINES & WHEELS Parts Diagram

  • Title

1

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

2

Troy-Bilt 1270-2A

TINE-BOLO RT W/HDW
(Superseded to 742-04118-0637)

$

$

Not available

3

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

4

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

5

Troy-Bilt 9761

SCR-HH 3/8-16X2.00 G8

$

$

Currently unavailable

6

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

7

Troy-Bilt 1270-1A

TINE-BOLO LT W/HDW
(Superseded to 742-04119-0637)

$

$

Not available

8

Troy-Bilt 20770

WELD-TINE HOLDER PONY

$

$

Currently unavailable

Troy-Bilt 1348

TINES-BOLO HORSE/PONY/ECONO

$

$

Currently unavailable

Troy-Bilt 10802

TINES-CUSTOM TILLING (INCL. 8 #2475-1, 8 #2475-2, 16 #9711, & 16 #9807)
(Superseded to GW-10802)

$499.99

$

Usually ships in 3-6 days

0

Troy-Bilt 2475-1

TINE-HARD FACED LT
(Superseded to GW-2475-1001)

$54.99

$

In Stock, only 2 left!

0

Troy-Bilt 2475-2

TINE-HARD FACED RT
(Superseded to GW-2475-2001)

$54.99

$

In Stock, only 1 left!

0

MTD 9807

NUT-H/LK 3/8-16 (USED IN PLACE OF #3 & #4 WHEN USING CUSTOM TILLING TINE KIT)
(Superseded to 690-239-0020)

$

$

Not available

9

Troy-Bilt 20678-01

ASSM-TIRE LT 4.10 X 6" (10-20 LBS. AIR REQ'D)

$

$

Currently unavailable

9

Troy-Bilt 20676

ASSM-TIRE RT 4.10 X 6" (10-20 LBS. AIR REQ'D)

$

$

Currently unavailable

9

Troy-Bilt 20917

RIM-WHEEL 6" GRAY

$

$

Currently unavailable

10

Troy-Bilt 20678-02

ASSM-TIRE RT 4.10 X 6"

$

$

Currently unavailable

11

Troy-Bilt 9380

PIN-CLEVIS .312"x1-3/4" LONG
(Superseded to 711-04126)

$3.99

$

In Stock, Qty 15

0

12

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0
