5411 - Troy-Bilt Pony VI Rear-Tine Tiller (SN: S0204133 - S0242649) TRANS. HSG. & SEALS/GASKETS Parts Diagram

Pony VI Rear-Tine Tiller

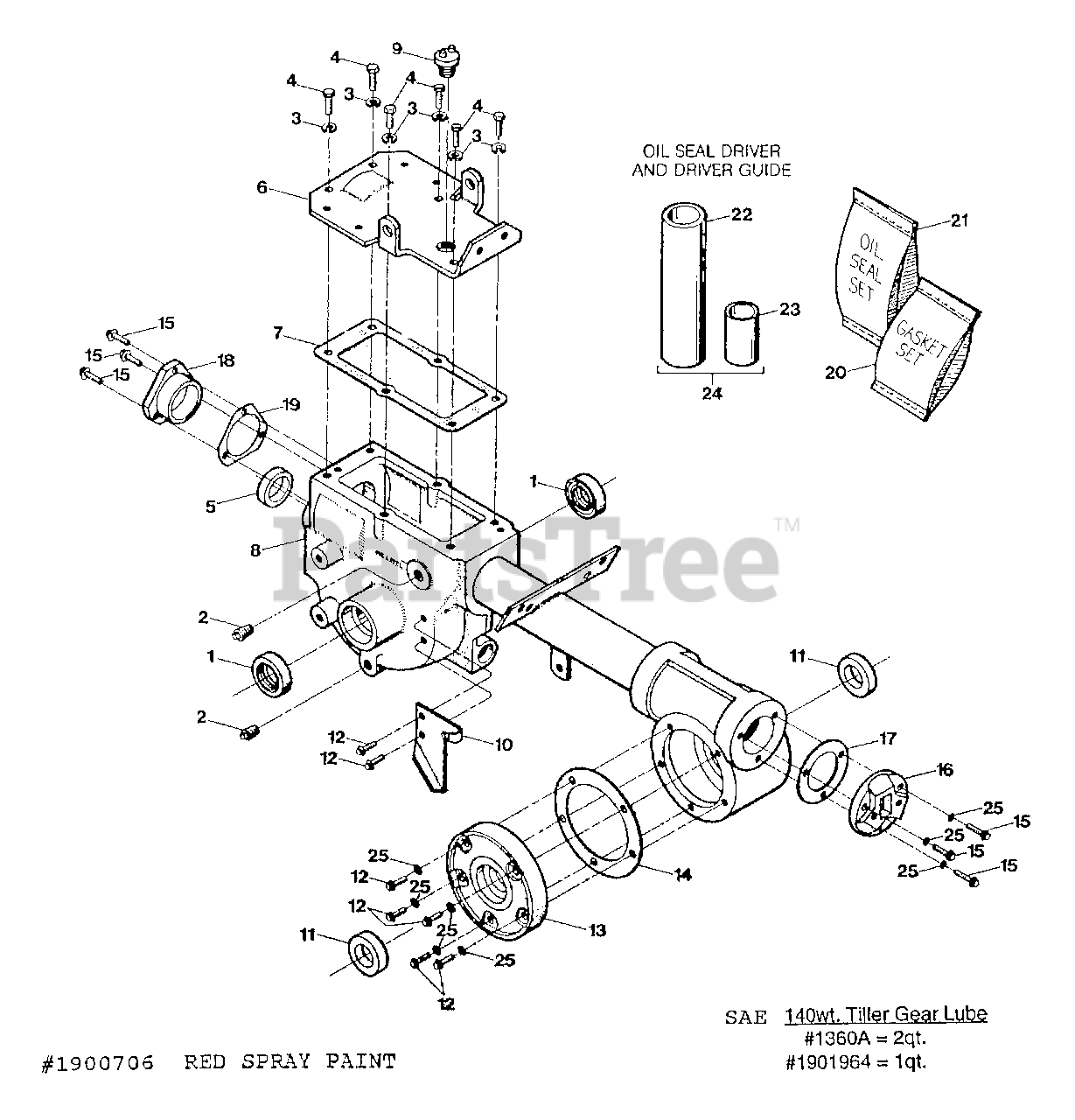

TRANS. HSG. & SEALS/GASKETS Parts Diagram

  • Title

1

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$3.99

$

In Stock, Qty 6

0

3

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

4

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable

5

Troy-Bilt 9600

SEAL-PINION SHAFT PT/85030/00

$

$

Currently unavailable

6

Troy-Bilt 20692

COVER-TRANS

$

$

Currently unavailable

7

Troy-Bilt 20694

GASKET-TRANS COVER
(Superseded to GW-20694P)

$4.99

$

In Stock, Qty 5

0

8

Troy-Bilt 20778

HSG-TRANS P5 A UNIT (INCL. ONE #9429)

$

$

Currently unavailable

9

Troy-Bilt 9467

PLUG-OIL FILL 3/4-10
(Superseded to GW-9467)

$4.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 20756

PLATE-CABLE MOUNT PNT (FOR WHEEL DRIVE CABLE)

$

$

Currently unavailable

11

MTD 9623

SEAL-TILLER SHAFT
(Superseded to 690-900-0049)

$

$

Not available

12

Troy-Bilt 9780

SCR-HH 1/4-20X.625

$

$

Currently unavailable

13

Troy-Bilt 10812

COVER-RTH W/SCRS&RACE

$

$

Currently unavailable

14

Troy-Bilt 1129-1

GASKET-TILLER COVER (FITS ALL COVERS)
(Superseded to GW-1129-1099)

$8.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 9773

SCR-HFLK 1/4-20X.875

$

$

Currently unavailable

16

Troy-Bilt 1115

CAP-REAR #1115

$

$

Currently unavailable

17

Troy-Bilt 1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 20695

COVER-FRONT BEARING

$

$

Currently unavailable

19

Troy-Bilt 20693-2

GASKET-FRONT COVER-.010

$

$

Currently unavailable

20

Troy-Bilt 10358

GASKET SET-P4

$

$

Currently unavailable

21

Troy-Bilt 10813

OIL SEAL SET-PONY V

$

$

Currently unavailable

22

Troy-Bilt 4921-1

DRIVER-PLASTIC (USE WITH PART #4921-2)

$

$

Currently unavailable

23

Troy-Bilt 4921-2

SEAL-DRIVER PILOT (USE WITH PART #4921-1)

$

$

Currently unavailable

24

Troy-Bilt 4921

KIT-DRIVER (INCL. 22,23)

$2.49

$

In Stock, only 2 left!

0

25

0

WASHER - NYLON, NOR REUSABLE

$

$

Not available

Troy-Bilt 10148

OBS-KIT NYLON WASHER (INCL. 8 NYLON WASHERS - #25)

$

$

Currently unavailable

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$22.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1360A

OIL GEAR LUBE 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL GEAR LUBE 1 QT 140WT

$

$

Currently unavailable
