5416 R (553C562K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) 54" Fixed Deck Spindle Parts Diagram

Walk-Behind Mower

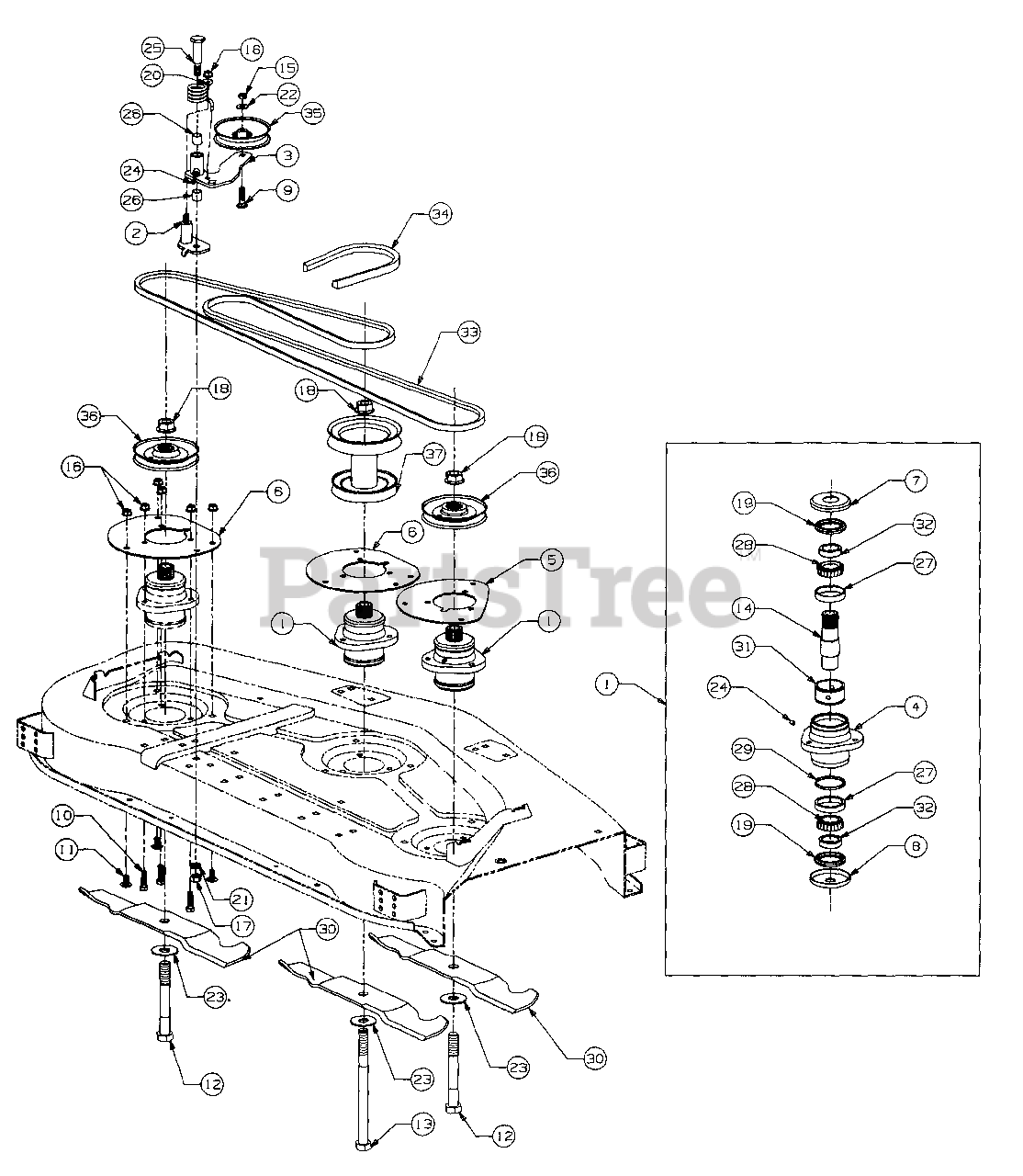

54" Fixed Deck Spindle Parts Diagram

  • Title

1

Cub Cadet 603-0043

Spindle Assy, Complete

$

$

Not available

2

Cub Cadet 603-0227

Plate, Idler Mtg

$

$

Currently unavailable

3

Cub Cadet 603-0229

Arm Assy Idler [Includes Ref No. 24 & 26 (Qty 2)]

$

$

Currently unavailable

4

Cub Cadet 619-3022

Housing, Spindle

$

$

Not available

5

Cub Cadet 703-2178

Plate, RH Cover
(Superseded to 703-2178-0637)

Variations

Cub Cadet 703-2178-0637

COVER PLATE (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-2179

Plate, Cover

$

$

Not available

7

Cub Cadet 703-2184

Cup, Top Spindle

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2185

Cup, Bottom Spindle
(Superseded to 703-2185-0637)

Variations

Cub Cadet 703-2185-0637

Spindle Cup, Bottom - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0431

Bolt, Carriage, 3/8-16 X 1.50 Lg

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3178

Bolt Sht Nk Carriage,3/8-16 X .75 Lg GR5

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3252

Bolt, Hex Hd Blade, 3/4-16 X 6.0 Lg

$

$

Not available

13

Cub Cadet 710-3253

Bolt, Hex Hd Blade, 3/4-16 X 9.50 Lg

$

$

Not available

14

Cub Cadet 711-3342

Shaft, Blade Spindle

$

$

Not available

15

Cub Cadet 712-0266

Nut, Hex Center Lock Jam, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$6.99

$

In Stock, only 1 left!

0

18

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

19

Cub Cadet 721-3038

Seal, Oil
(Superseded to 921-0385)

$27.99

$

In Stock, only 1 left!

0

20

Cub Cadet 732-3067

Spring, Torsion

$23.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0300

Washer, Flat, .385 X .87 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-3014

Washer, Flat, .781 X 2.0 X .105 Thk

$4.49

$

In Stock, Qty 19

0

24

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 738-3144

Bolt, Shoulder

$

$

Currently unavailable

26

Cub Cadet 741-3063

Bearing, Sleeve

$17.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 741-3050

Cup, Bearing
(Superseded to 941-3050)

$23.99

$

In Stock, only 2 left!

0

28

Cub Cadet 741-3051

Cone, Bearing
(Superseded to 941-3051)

$48.99

$

In Stock, only 4 left!

0

29

Cub Cadet 741-3052

Spacer, Bearing
(Superseded to 941-3052)

$

$

Not available

30

Cub Cadet 742-3013

Blade, Mower, 18.5 Lg
(Superseded to 759-3820)

Variations

Cub Cadet 742-3013-0637

Mower Blade, 18.50" Lg Hi-Lift - POWDER BLACK (0637)

$35.99

$

In Stock, Qty 15

0

$35.99

$

In Stock, Qty 15

0

Cub Cadet 759-3597

Blade, Mower, Hard Coated, 18.5 Lg
(Superseded to 759-3841)

Variations

Cub Cadet 759-3597-0637

Mower Blade, 18.50" Lg - POWDER BLACK (0637)

$58.99

$

In Stock, Qty 18

0

$

$

31

Cub Cadet 750-3073

Spacer, Bearing Cup

$

$

Not available

32

Cub Cadet 750-3082

Ring, Seal

$

$

Not available

33

Cub Cadet 754-3045

Belt, Spindle, A-Sect X 122.0 Lg
(Superseded to 954-3045)

$63.99

$

In Stock, only 2 left!

0

34

Cub Cadet 754-3072

Belt, PTO, B-Sect X 63.04 Lg
(Superseded to 954-3072)

$

$

Not available

35

Cub Cadet 756-3005

Pulley, Flat Idler

$45.99

$

In Stock, Qty 20+

0

36

Cub Cadet 756-3058

V-Pulley, 4.65 OD

$78.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 756-3059

Pulley, Deck, 5.07 OD & 5.75 OD
(Superseded to 956-3059)

$

$

Not available
