5418 F (555C565K100) - Cub Cadet Walk-Behind Mower (SN: 452900 - 503790) Carburetor & Carburetor Gasket Set Parts Diagram

Walk-Behind Mower

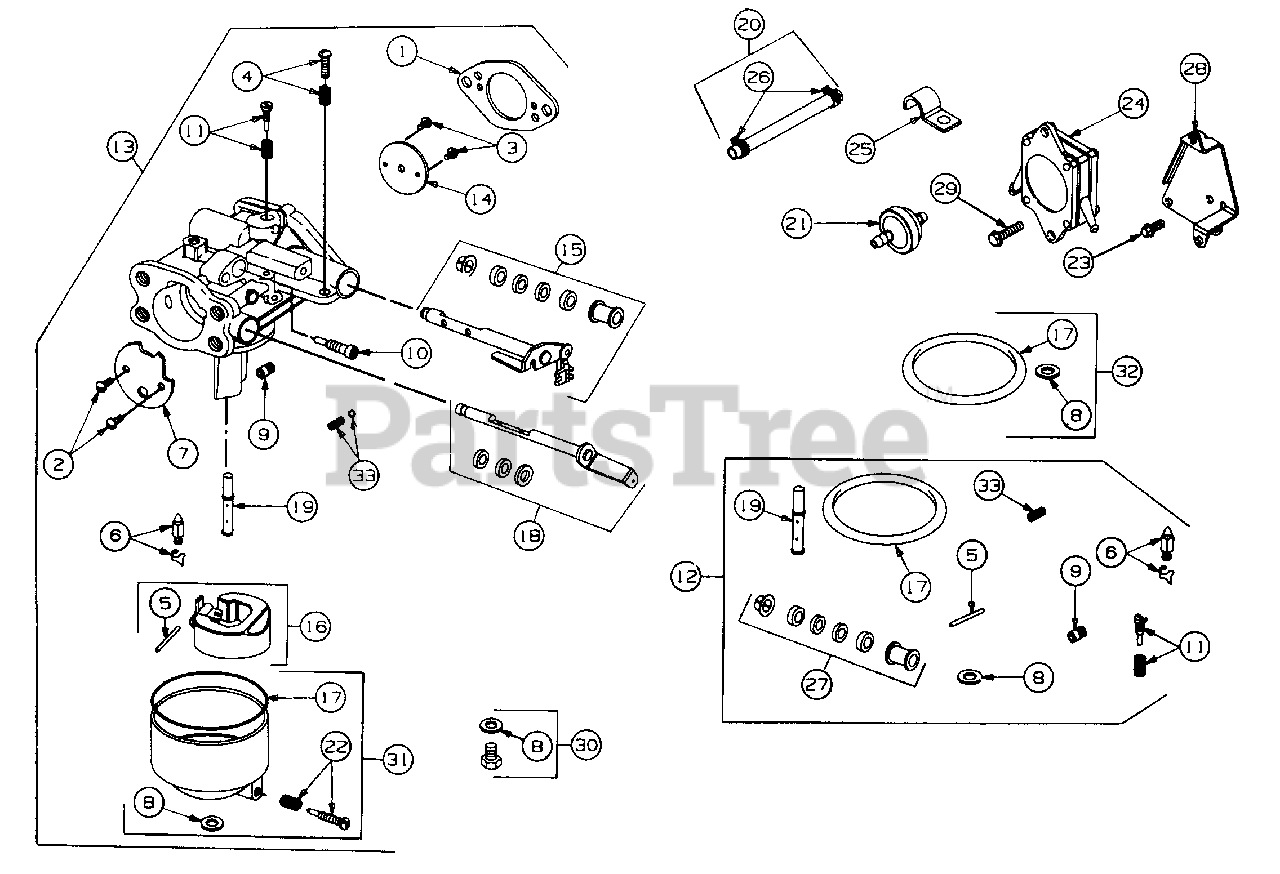

Carburetor & Carburetor Gasket Set Parts Diagram

  • Title

1

Cub Cadet BS-805700

Gasket, Carburetor Mtg
(Superseded to BS-691694)

$3.49

$

In Stock, Qty 11

0

2

Cub Cadet BS-94457

Screw, Valve Mtg

$

$

Not available

3

Cub Cadet BS-94466

Screw, Valve Mtg

$

$

Not available

4

Cub Cadet BS-494690

Screw, Throttle Adjustment

$

$

Currently unavailable

5

Cub Cadet BS-231652

Pin, Float Hinge

$7.49

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-808023

Valve, Fuel Inlet

$46.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-224534

Valve, Choke

$

$

Not available

8

Cub Cadet BS-224531

Washer, Bowl

$

$

Not available

9

Cub Cadet BS-231780

Jet, Main

$18.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-231779

Jet, Pilot

$

$

Not available

11

Cub Cadet BS-494923

Valve, Idle Adjustment Needle

$

$

Not available

12

Cub Cadet BS-807917

Carburetor Overhaul Kit

$181.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-807906

Carburetor Assy
(Superseded to BS-847395)

$337.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-224533

Valve, Throttle

$

$

Not available

15

Cub Cadet BS-807909

Shaft Assy, Throttle

$

$

Not available

16

Cub Cadet BS-492283

Float, Bowl

$38.99

$

Usually ships in 2-12 days

0

17

Gasket, Bowl

Note: (Sold in kit only)

$

$

Not available

18

Cub Cadet BS-807911

Shaft, Choke

$

$

Currently unavailable

19

Cub Cadet BS-231781

Nozzle, Carburetor

$38.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-393815

Hose Fuel, 11" Lg

$

$

Not available

Cub Cadet BS-296004

Hose Fuel, 23" Lg
(Superseded to BS-791745)

Note: (Cut to required length)

$11.99

$

In Stock, only 3 left!

0

21

Cub Cadet BS-493629

Filter, Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-492274

Drain, Carburetor Bowl

$11.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-805025

Screw, Sem

$

$

Not available

24

Cub Cadet BS-491922

Pump, Fuel
(Superseded to BS-808656)

$30.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-223167

Clamp, Fuel Pipe

$

$

Not available

26

Cub Cadet BS-93053

Clamp, Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 9

0

27

Cub Cadet BS-808022

Seal Kit, Shaft

$42.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-807685

Bracket, Fuel Pump
(Superseded to BS-691559)

$25.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-805317

Screw, Mtg
(Superseded to BS-807084)

$3.99

$

In Stock, only 3 left!

0

30

Cub Cadet BS-807914

Screw, Fuel Bowl

$13.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-807913

Bowl Assy, Fuel

$

$

Not available

32

Cub Cadet BS-807916

Gasket Set, Carburetor

$

$

Not available

33

Cub Cadet BS-807915

Ball, Choke Locator

$9.99

$

In Stock, only 1 left!

0

Cub Cadet BS-807917

Overhaul Kit, Carburetor

Note: (Includes Ref No. 5, 6, 8, 9, 11, 17, 19, 27 & 33)

$181.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807916

Gasket Set, Carburetor

Note: (Includes Ref No. 8 & 17)

$

$

Not available
