5418 F (555C565K100) - Cub Cadet Walk-Behind Mower (SN: 452900 - 503790) Cradle Assembly Parts Diagram

Walk-Behind Mower

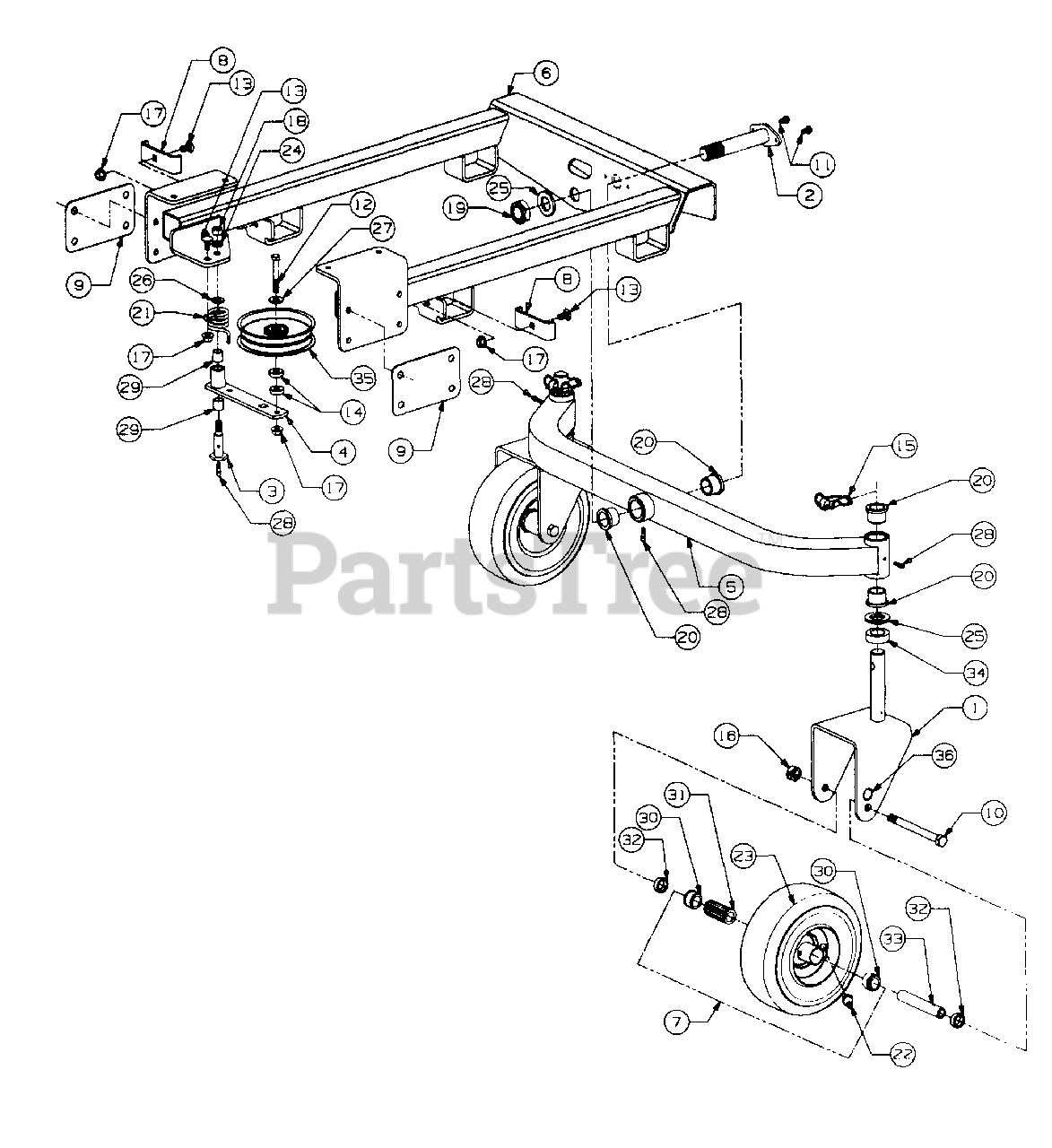

Cradle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0047

Fork, Caster
(Superseded to 01006145)

Variations

Cub Cadet 603-0047-0498

USE 01006145 FORK-CASTER - OLD CUB YELLOW (0498)

$126.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0053

Pin, Axle Pivot

$

$

Not available

3

Cub Cadet 738-3108

Bolt, Shoulder
(Superseded to 738-05004)

$23.99

$

In Stock, Qty 5

0

4

Cub Cadet 603-0209

Arm Assy, Idler

Note: (Includes Ref No. 28 (Qty 2))

$

$

Not available

5

Cub Cadet 603-0107

Axle Assy, Front

Note: (Includes Ref No. 19 (Qty 6) & 27 (Qty 3)

$

$

Not available

6

Cub Cadet 603-0145

Cradle Assy, Floating

Variations

Cub Cadet 603-0145-0498

CRADLE ASSEMBLY-FLOAT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 759-3729

Bolt, Sht Nk Carriage, 3/8-16 X .75 Lg. GR5
(Superseded to 634-3026)

$252.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3178

Nut, Hex Flanged Lock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 759-3729

Wheel Assy, Caster
(Superseded to 634-3026)

$252.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2432

Stop, Wear Bar
(Superseded to 01006136)

$

$

Not available

9

Cub Cadet 703-2697

Spacer

$

$

Not available

10

Cub Cadet 710-0506

Screw, Hex Cap, 1/2-20 X 5.50 Lg

$11.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-0599

Screw, Hex Wash Hd TT-Tap, 1/4-20 X .50 Lg

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3859

Screw, Hex Cap, 3/8-16 X 2.5 Lg GR5

$

$

Currently unavailable

13

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 711-0242

Spacer, .380 X 1.0 X .320

$4.99

$

In Stock, Qty 8

0

15

Cub Cadet 711-3345

Pin, Klik

$

$

Not available

16

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$7.49

$

In Stock, only 3 left!

0

19

Cub Cadet 712-3075

Nut, Hex Lock, 1-14
(Superseded to 712-05008)

$15.99

$

In Stock, only 2 left!

0

20

Cub Cadet 731-0374

Bearing, Flange
(Superseded to 931-0374)

$7.99

$

In Stock, Qty 20+

0

21

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$25.99

$

In Stock, Qty 20+

0

22

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 734-3098

Tire, Smooth, 9.0 X 3.50 X 4

$

$

Not available

24

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.99

$

In Stock, Qty 11

0

25

Cub Cadet 736-0274

Washer, Special

$9.49

$

In Stock, Qty 9

0

26

Cub Cadet 736-3015

Washer, Flat, .469 X .875 X .105 Thk
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 18

0

27

Cub Cadet 736-3052

Washer, Flat, .406 X 1.0 X .105 Thk

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 737-0280

Fitting, Lube

$8.49

$

In Stock, only 4 left!

0

29

Cub Cadet 741-3063

Bearing, Sleeve

$18.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 741-3060

Bearing, Graf Oil Flange

$

$

Not available

31

Cub Cadet 741-3061

Bearing, Roller
(Superseded to 941-3061)

$

$

Not available

32

Cub Cadet 750-0456

Spacer, .790 ID X .347 Lg

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 750-3080

Spacer, Wheel
(Superseded to 01000749)

$40.99

$

In Stock, only 1 left!

0

34

Cub Cadet 750-3118

Spacer, 1.015 X 1.62 X .50 Lg

$

$

Not available

35

Cub Cadet 756-3062

Pulley, 5" Idler

$42.99

$

In Stock, Qty 5

0

36

Cub Cadet 777-8680

Label Inflation

$

$

Currently unavailable
