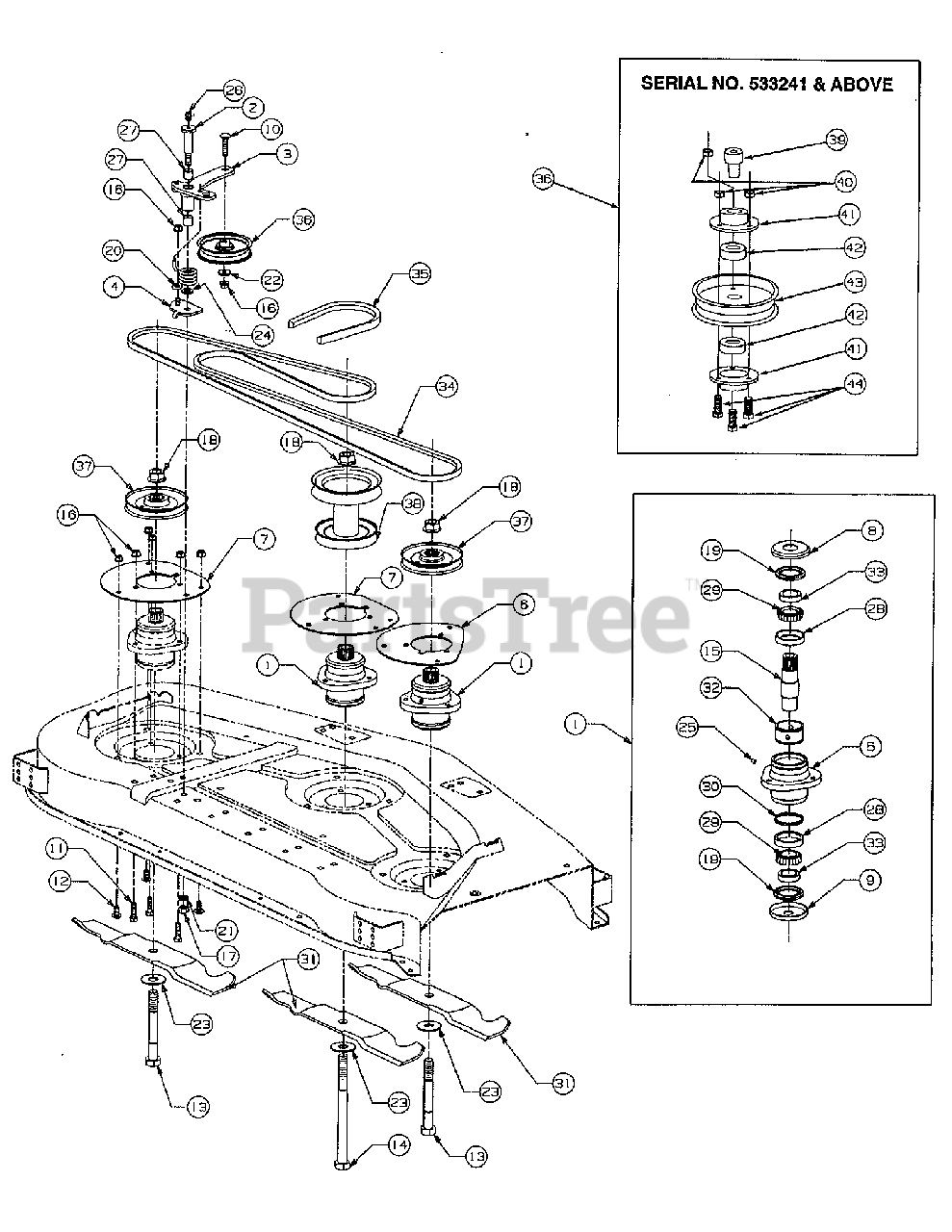

5418 F (556C765K100) - Cub Cadet Walk-Behind Mower (SN: 503791 & Above) Deck Spindle Assembly Parts Diagram

Walk-Behind Mower

Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 903-0043A

Spindle Assembly, Complete

$

$

Not available

2

Cub Cadet 738-3102

Bolt, Shoulder

$22.99

$

In Stock, only 2 left!

0

3

Cub Cadet 603-0105

Arm Assembly, Idler NLA

Note: (Incl. Ref No. 27 Qty 2)

Variations

603-0105-0498

Cub Cadet 603-0105-0498

ARM ASSEMBLY, IDLER - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 603-0218

Plate, Idler

$

$

Not available

5

Cub Cadet 619-3022

Housing, Spindle

Note: NLA

$

$

Not available

6

Cub Cadet 703-2178-0637

Plate, RH Cover

$

$

Not available

7

Cub Cadet 703-2179

Plate, Cover

Note: NLA

$

$

Not available

8

Cub Cadet 703-2184

Cup, Top Spindle

$12.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-2185-0637

Cup, Bottom Spindle

$14.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-0560

Bolt, Carriage, 3/8-16 x 1.75

$7.49

$

In Stock, Qty 6

0

11

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Gr 5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 x .75 Gr 5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3252

Bolt, Hex Hd Blade, 3/4-16 x 6.0

Note: NLA

$

$

Not available

14

Cub Cadet 710-3253

Bolt, Hex Hd Blade, 3/4-16 x 9.5

Note: NLA

$

$

Not available

15

Cub Cadet 711-3342

Shaft, Blade Spindle

$

$

Not available

16

Cub Cadet 912-0431

Nut, Hex Flanged Lock, 3/8-16

$5.49

$

In Stock, Qty 20+

0

17

Cub Cadet 912-3019

Nut, Hex 7/16-14 Gr 5
(Superseded to 712-3019)

$7.49

$

In Stock, Qty 6

0

18

Cub Cadet 712-3078

Nut, Hex Flange 3/4-16

$10.99

$

In Stock, Qty 8

0

19

Cub Cadet 921-0385

Seal, Oil

$28.99

$

In Stock, only 4 left!

0

20

Cub Cadet 932-3009

Spring, Torsion

$25.99

$

In Stock, Qty 16

0

21

Cub Cadet 936-0171

Washer, Lock 7/16
(Superseded to 736-0171)

$4.99

$

In Stock, only 4 left!

0

22

Cub Cadet 936-0206

Washer, Spec .378 x 1.0 x .125 Thk
(Superseded to 736-0258)

$4.99

$

In Stock, Qty 10

0

23

Cub Cadet 736-3014

Washer, Flat .781 x 2.0 x .105 Thk

$4.99

$

In Stock, Qty 10

0

24

Cub Cadet 936-3015

Washer, Flat .469 x .875 x .105 Thk

$4.49

$

In Stock, Qty 14

0

25

Cub Cadet 937-0280

Fitting, Lube
(Superseded to 737-0280)

$8.49

$

In Stock, only 2 left!

0

26

Cub Cadet 737-3004

Fitting, Lube 90 Deg, 1/4-28 Tapper Thd

$12.99

$

In Stock, only 2 left!

0

27

Cub Cadet 741-3063

Bearing, Sleeve

$18.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 941-3050

Cup, Bearing

$25.99

$

In Stock, only 2 left!

0

29

Cub Cadet 941-3051

Cone, Bearing

$51.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 941-3052

Spacer, Bearing

$

$

Not available

31

Cub Cadet 759-3820

Blade, Mower 18.5
(Superseded to 742P3013A)

$37.99

$

In Stock, Qty 20+

0

31

Cub Cadet 759-3841

Blade, Mower, Hard Coated 18.5
(Superseded to 759-3597-0637)

$

$

Not available

32

Cub Cadet 750-3073

Spacer, Bearing Cup

Note: NLA

$

$

Not available

33

Cub Cadet 950-3187

Ring, Seal

$52.99

$

In Stock, only 2 left!

0

34

Cub Cadet 954-3045

Belt, Spindle A-Sect x 122.0

$67.99

$

In Stock, Qty 8

0

35

Cub Cadet 954-3066

Belt, PTO B0Sect x 62.04

$65.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 756-3005

Pulley, Flat Idler

Note: (S/N 533240 & Below)

$48.99

$

In Stock, Qty 20+

0

36

Cub Cadet 603-0394

Pulley Assembly, Idler NLA

Note: (S/N 533241 & Above)

$

$

Not available

37

Cub Cadet 756-3058

V-Pulley, 4.65 OD

$

$

Not available

38

Cub Cadet 956-3059

Pulley, Deck, 5.07 OD & 5.75 OD

$

$

Not available

39

Cub Cadet 748-3064

Spacer, ShoulderNLA

Note: (S/N 533241 & Above)

$

$

Not available

40

Cub Cadet 712-0324

Nut, Hx Insrt Lock

$3.99

$

In Stock, only 2 left!

0

41

Cub Cadet 703-2907

Cup, Bearing

Note: (S/N 533241 & Above)

$

$

Not available

42

Cub Cadet 941-0600

Bearing, Ball

Note: (S/N 533241 & Above)

$26.99

$

In Stock, Qty 20+

0

43

Cub Cadet 756-3088

Pulley, Flat Idler NLA

Note: (S/N 533241 & Above)

$

$

Not available

44

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 Gr 5

Note: (S/N 533241 & Above)

$4.49

$

In Stock, Qty 20+

0
